Atomos Shinobi Cage
MPN #ATOM-X5SBCA

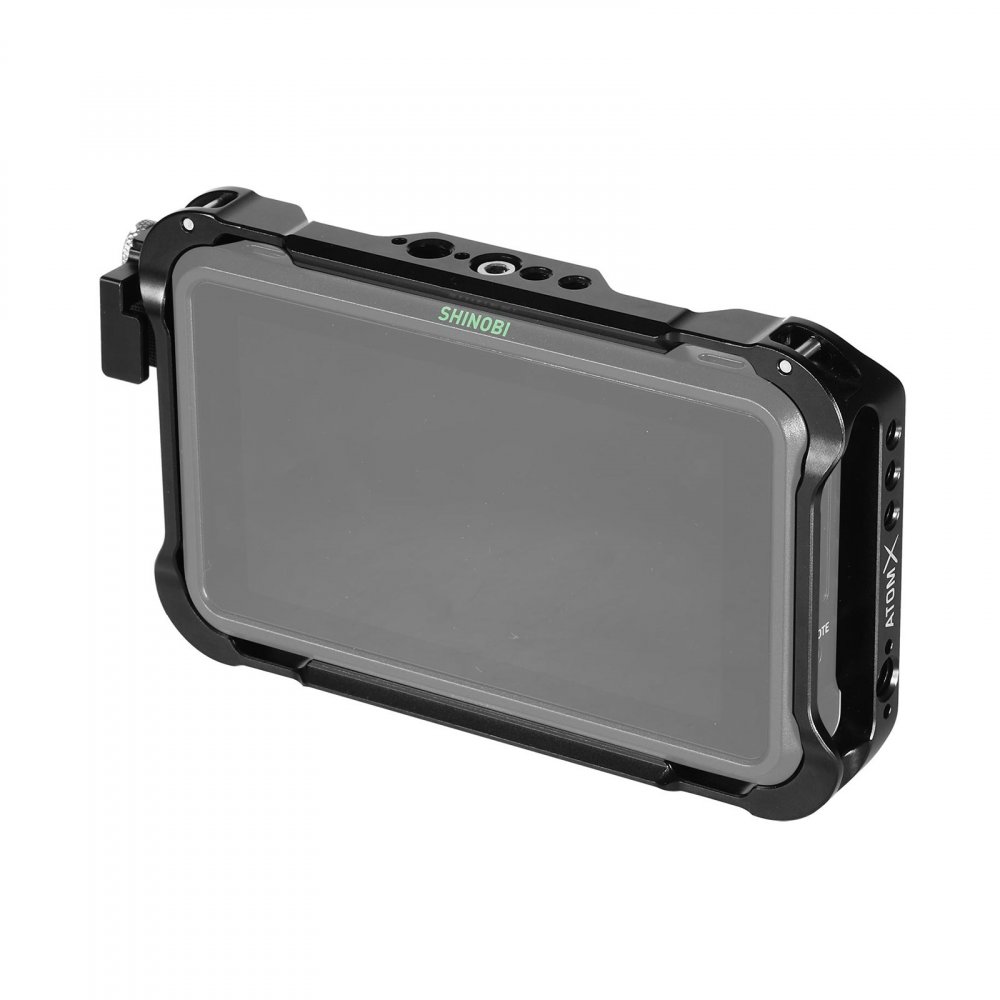

Form-fitting cage designed for Atomos Shinobi 5" monitors
AtomX 5" cage for Shinobi CMA2305 was co-designed with SmallRig to provide an additional protective exo-skeleton for the monitor, with a wide range of industry standard mount points. The cage mounts to the monitor by two 1/4"-20 screws on the top and bottom. Across the cage features multiple 1/4"-20, 3/8"-16 holes across all sides as well as to the rear side of the monitor for ultimate flexibility in mounting options. ARRI locating mount points can be found on all sides and NATO rails are also provided along on both top and bottom to allow use with a range of SmallRig mounts. The cage includes a single HDMI cable clamp that works with the range of Atomos cables and more to protect the HDMI cable and port. It features raised attachment points on both the top and bottom of the cage for use with neck straps and to accommodate the Atomos Ninja V Sunhood frame.
Features
A form-fitting cage designed for Atomos Shinobi;NATO rails on the top and bottom;1/4"-20, 3/8"-16 and ARRI locating holes;HDMI cable clamp included.
Specifications
Work With : Atomos Shinobi
Packing List

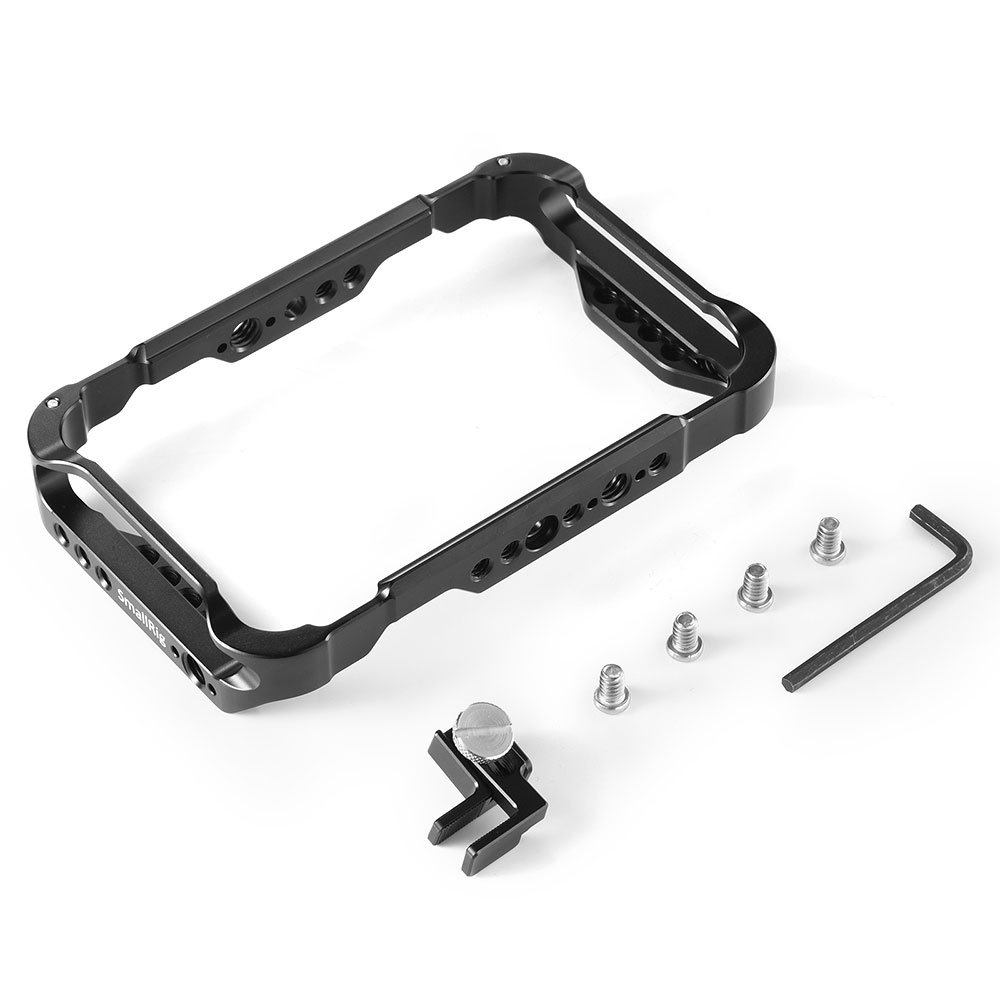

1 x cage1 x HDMI Clamp 16934 x 1/4 Screw1 x Hex Spanner
Technical Data
Product Dimensions: 167.5 x 107 x 29.5mmPackage Dimensions: 200 x 140 x 40mmNet Weight: 162gPackage Weight: 240gMaterial(s): Aluminum Alloy
