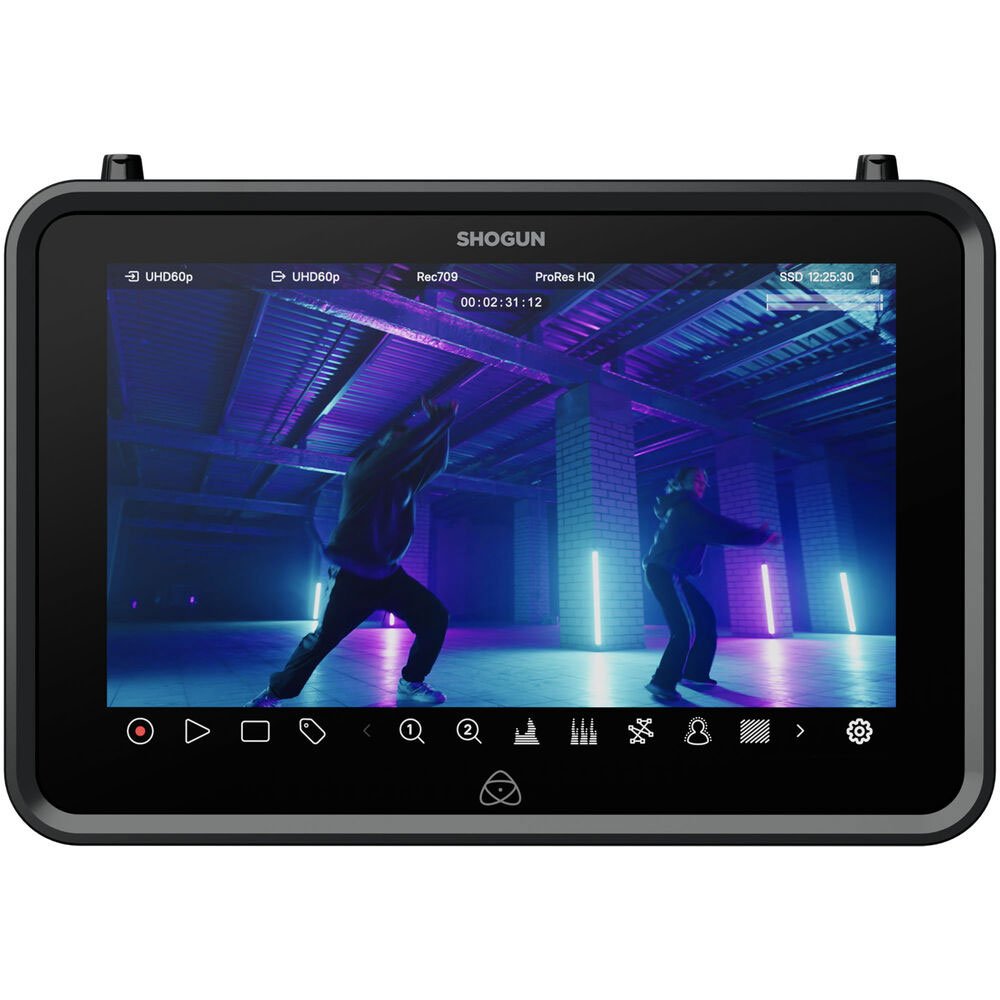

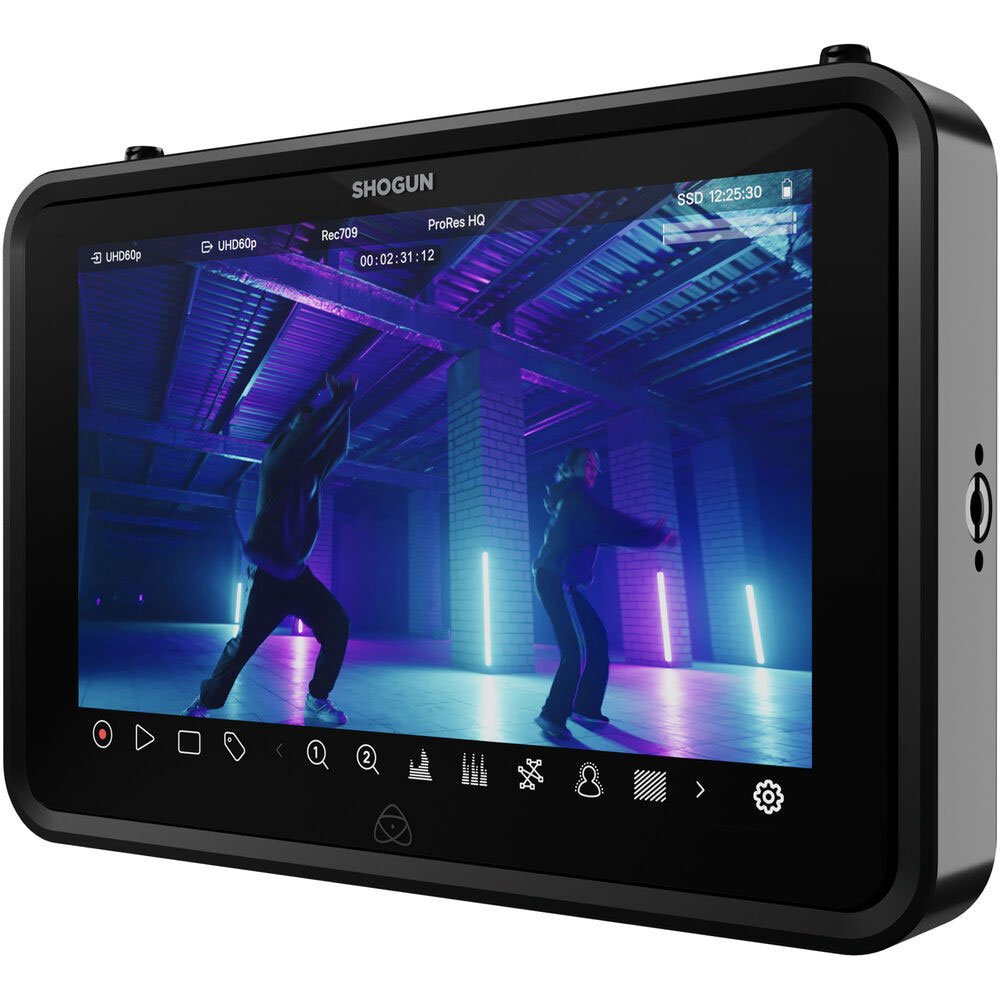

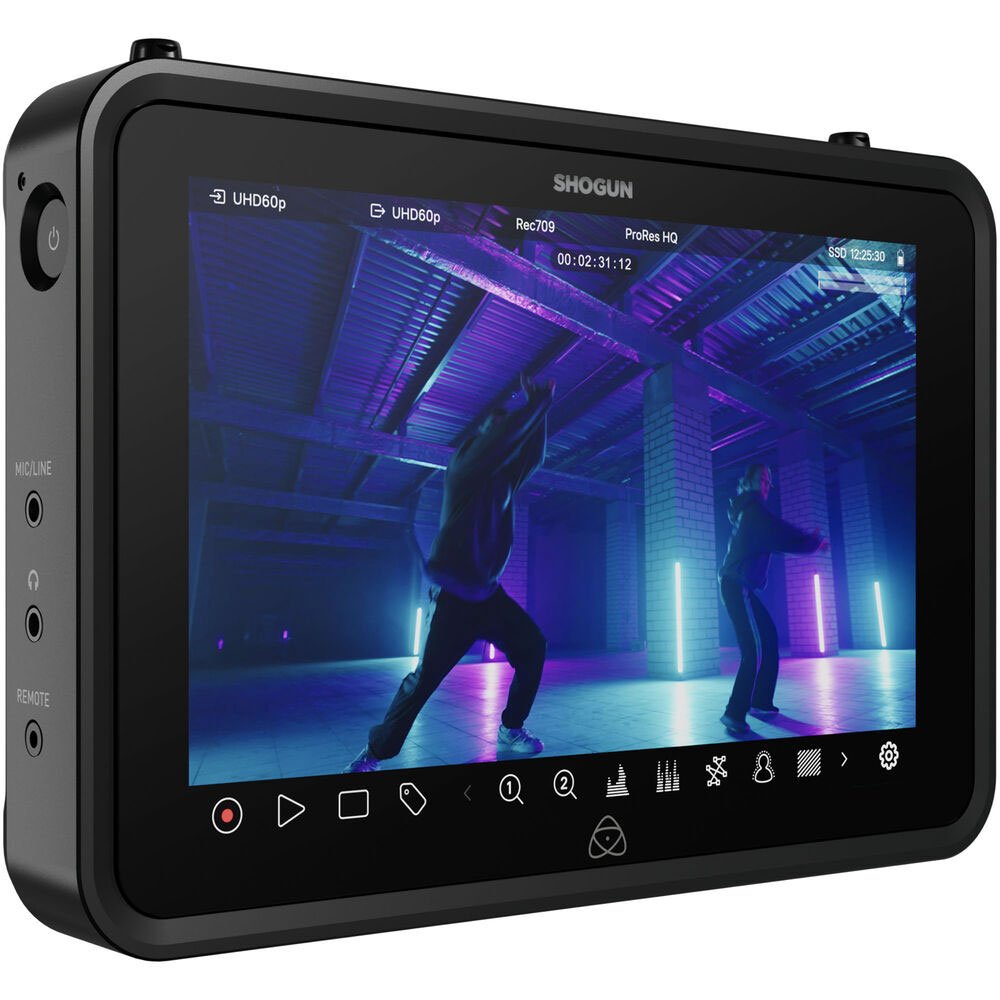

7'' 1920 x 1080 touchscreen monitor-recorder with 12G-SDI/HDMI convervion, AirGlu RF wireless sync, GigE, 6 Wi-Fi, ProRes Raw and H.265 recording

7-inch monitor-recorder with integrated networking for cloud workflows, ideal for DSLR, mirrorless and cinematic cameras. More codecs ?& monitoring tools than ever before.

Up to eleven
The original Shogun gave filmmakers what they had been asking for. All the Ninja's talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today's Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera. Shogun is the Atomos dream writ large.

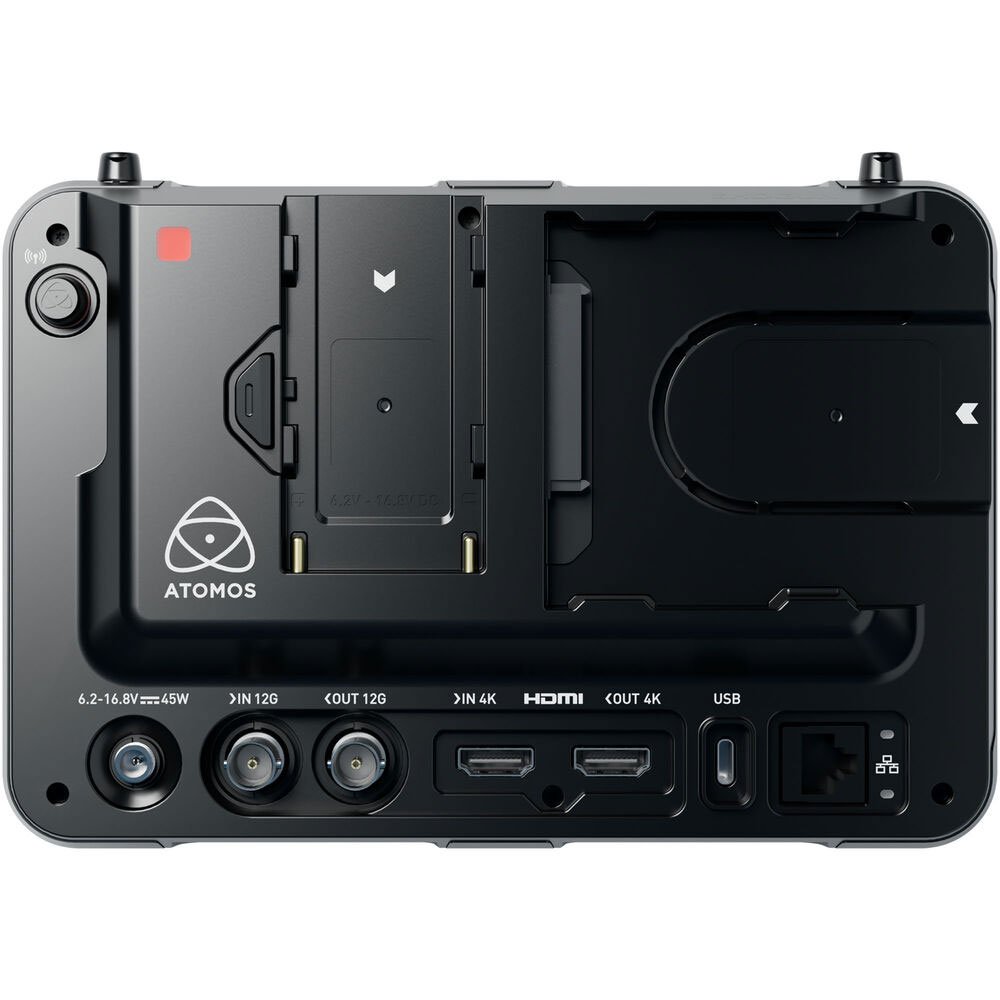

All the connectivity you'll ever need
  • Solid Internet: Network connectivity with Wi-Fi 6 and GigE.
  • Wireless Sync: Long-range robust wireless sync and control with AirGlu RF.
  • Third-party Sync: Third-party sync and app control with Bluetooth AirGlu BT.
  • USB-C Port: For future updates.
  • More Power Options: Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.
  • SDI Out: Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.

  • Super bright screen
    Shogun's super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it's ideal for checking your HDR footage while you're still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

    Enhance your camera
    The new Shogun has an ultra-bright, 7-inch HDR screen that's easily visible outdoors. Capture RAW video from a vast range of DSLR, mirrorless and cinematic cameras with either SDI or HDMI connections. It's packed with on-screen tools for focus, exposure, customer LUTs and metadata. Shogun takes care of your workflow while you focus on creative ideas.

    Improve your shots through accurate framing and check your exposure and focus on a clear, bright screen. We work with all popular camera manufacturers to support the widest range of cameras. Not just for recording uncompressed video via HDMI or SDI but working with RAW formats and being able to stop/start trigger the camera's own recording.

    Ready to RAW
    Shogun can capture RAW inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don't support RAW formats.

    With a versatile 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun now has a new operating system and user interface. The screen is designed for outdoor usability, with a generous 2000nits, viewable even in direct sunlight. You can also adjust the screen for optimum performance in dimly lit locations.

    Cleaner, fresher, faster
    Introducing a new version of our operating system, AtomOS 11. Built uniquely for the new Ninja and Shogun series, it not only looks beautiful but introduces a host of great new features. We've made the tools more visible and improved the icons so you know exactly what you're selecting. It's easier to use, more logical and feels more professional. AtomOS 11 unleashes the full potential of Shogun with new firmware that optimizes memory management for greater responsiveness.

    SegmentPro is another powerful new tool exclusive to our completely redesigned AtomOS 11 operating system. It allows you to segment/split long recordings into user-defined chunks, adding even more flexibility to the production workflow. The segmenting can be defined by setting a custom file size limit, in GB or TB, or by time, all without dropping a frame.

    With SegmentPro you can fit your files into any workflow " even those that require smaller media (for example, if you are going to edit on an iPad). It's easier to share smaller files, and safer too: if you lose a big file, you've lost everything. Working with smaller files minimizes this risk.

    Colorized Exposure
    EL Zone System? exposure referenced colorized image and ARRI False Color

    An important new addition to AtomOS 11, EL Zone and ARRI colorized exposure display is a powerful alternative to Atomos false color. It allows Atomos monitors to display consistent colorized exposure across multiple monitors in a production pipeline. EL Zone is designed for camera operators, who can see the true and precise scene-referred dynamic range, colorized in stops, directly from the camera. It's ideal for assessing exposure in both HDR and SDR production. An established industry standard, it's the best way to see colorized exposure on a monitor.

    Set up time lapse recording and control it from your Shogun, completely independent of your camera's controls. Use the Shogun's screen for accurate visual alignment and its massive removable storage for longer projects.

    Set a time to start recording. It's ideal for covering pre-arranged events when you need to be somewhere else. If you have several Shoguns, you can even record in multiple locations simultaneously. It's also a safer way to cover dangerous locations without risk to you and your colleagues. Finally, it's perfect for wildlife shooting. Want to capture the action by the riverbank at sunset Just dial-in the time and come back later.

    Multiple Codecs
    The new Shogun line includes these codecs free of charge, so you can choose the ideal codec for your projects.
  • Apple ProRes
  • Apple ProRes RAW
  • H.265
  • DNx (QuickTime)

  • Apple ProRes is pre-activated to use out of the box, so you can start shooting immediately. To activate H.265 and DNx, visit to register your Shogun and follow the simple online instructions.

    To activate Apple ProRes RAW, you need to go to There is a small additional step to get an activation token to access the codec for free. Simply plug in your compatible RAW camera to complete the process. You only need to do it once to unlock this super-flexible and unique codec without time restrictions.

    NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It's increasingly used in live production, and now your Shogun can take part in an NDI environment. The NDI TX option turns your Shogun into an NDI source, visible to all other authorized devices on the network.

    Set a time for your Shogun to play out files and even sequences. Connected to a large screen with HDMI, this is ideal for advertising and digital signage " or just displaying your work at the highest quality.

    Feature-packed, ?even more versatile
    You can pair the new Shogun with a huge range of video, DSLR, mirrorless or cinematic cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Shogun also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.

    Any camera, any format. Anywhere.
    Pair the Shogun equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Shogun is made from precision materials and crafted for maximum durability with a solid aluminium frame. Weighing only 730g (1.6lbs), you can use it comfortably with a handheld camera. Shogun includes anti-rotational ? " 16 mount points on the top and bottom. It ships with a ¼ " 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.
  • AtomOS 11, 12G-SDI/HDMI Conversion
  • 7" 1920 x 1080 Touchscreen
  • Records up to 6K Apple ProRes Raw
  • ProRes Raw, H.265 Recording
  • AirGlu RF Wireless Sync, GigE, 6 Wi-Fi
  • 2000 cd/m² Brightness
  • AVID DNX QuickTime
  • Atomos RemoteView via Subscription
  • NDI HD TX 1-Off Activation
  • Physical
  • Dimensions (W x H x D mm): 198mm x 133mm x 40mm / 7.8? x 5.2? x 1.57?
  • Weight: 730g / 1.6 lbs
  • Mounting Points: Top: 1 x 1/4"20 or 3/8" with anti rotational points, Bottom: 1 x 1/4"20 or 3/8" with anti rotational points, Right: 1 x 1/4"20 or 3/8" with anti rotational points

  • Environmental
  • Ambient operating temperature: Up to 40 Degrees Celsius

  • Construction
  • Body: Aluminium Alloy Chassis with ABS Polycarbonate Rear Enclosure
  • Cooling: Heat Sink + Actively controlled Fan
  • Tally Light: LED on the Rear of the Device
  • Multi-Function Button: Power / Lock Screen
  • Touch Screen: Capacitive Touch

  • Power
  • Input Voltage: 6.2V to 16.8V
  • Compatible Batteries: 1 x NP-F / L-Series
  • DC in Connector: Locking DC Jack (5.5mm OD & 2.1mm ID)
  • D-Tap: Via optional D-Tap to DC Barrel Cable
  • Fan Control: Low, Medium, Auto / Turbo Cool / Dim Display

  • Display
  • Display Panel: SuperAtom IPS Panel (Capacitive Touch)
  • Size: 7"
  • Resolution: 1920 x 1200 (1920 x 1080 Image Display)
  • Viewing Angle: 178 + H & V
  • PPI: 325
  • Bit Depth: 10-Bit (8+2 FRC)
  • Backlight Type: Edge-Lit
  • Brightness (cd/m² / nits): 2000nit +/- 10%
  • Aspect ratio: 16:10 (16:9 Image Display)
  • Color Gamut: Rec.709
  • Calibration Support: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus

  • Color Pipeline
  • Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Arri LogC4, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
  • Gamut: BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
  • 3D LUT Display: .Cube Format (17 & 33 points supported)
  • 3D LUT Output: Loop out
  • 3D LUT 50/50: Via Compare Option in LUTs Menu
  • Monitoring Modes: Native / 709 / HLG / PQ / 3D LUT
  • HDR Output Conversion: Camera Log to HLG / PQ

  • Color Management
  • Calibration: ATOMOS Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
  • Display Controls: Backlight, Lift, Gamma, Gain
  • AtomHDR: Built-in Technical Log to HDR EOTF
  • 3D LUTs: Load .Cube files from SSD into 8 LUT Slots On-Device " Use for Monitoring, bake into Recordings (optional), or apply to HDMI / SDI Output Signals
  • Legalize: Full to Legal Range Conversion available via Input Menu

  • Video Input
  • HDMI: 1 x HDMI 2.0
  • SDI: 1 x 12G SDI
  • Bit Depth: 8/10-Bit for Video / up to 12-Bit for RAW
  • Video Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
  • HDR: HDMI Auto Detection

  • Metadata
  • HDMI: RAW " White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut
  • SDI: RAW " White Balance, Exposure Index, Shutter Speed/Angle, Iris/F-Stop, ISO, Gamma, Gamut

  • Video Output
  • HDMI: 1 x HDMI 2.0
  • SDI Loop / Play Out: 1 x 12G SDI
  • HDR: Yes with auto detection

  • Network
  • Ethernet: 1GbE via RJ45
  • Wi-Fi: Wi-Fi 6
  • Wireless RF: AirGlu? SYNC Timecode Network
  • Atomos Cloud: Capture to Cloud (AtomosEdit,, Sony CI Media), Live Stream (Facebook, Twitch, YouTube, Custom RTMP), Atomos Live Production
  • Cellular: Connect to Hotspot via Wi-Fi

  • Web Streaming
  • RTMP / S: Destination configured via Atomos Cloud Studio

  • Video Signal Conversion
  • HDMI to SDI: Supported
  • SDI to HDMI: Supported

  • Audio In/Out
  • Audio Quality: 24-Bit / 48kHz
  • Audio Codec: PCM
  • HDMI: 8ch 24-Bit, Input dependent
  • SDI: 12ch 24-Bit, Input dependent
  • Analog Audio In: 3.5mm Jack
  • Analogue Audio Out / Headphone Jack: 3.5mm Jack
  • Audio Input Delay: Frame Delay on Analog Input + Automatic Offset Calibration via AtomOS

  • Timecode / Sync
  • HDMI Embedded: Supported
  • SDI Embedded: Supported
  • Time of Day: Supported
  • Wireless SYNC: AirGlu? SYNC timecode network
  • RF Network Range: 300m
  • RF Frequency: Region dependent
  • Number of Channels: 12 RF channels per Region
  • Number of RF Clients: Region dependant
  • Bluetooth Network Range: 10-15m (line of sight)
  • Number of BT Clients: 2 Clients

  • Resolution and Frame Rates (Record, Monitor & Playback)
  • 6K RAW: up to 6Kp30 via HDMI / SDI
  • 4K RAW: up to 4Kp60 via HDMI / SDI
  • 3.5K Anamorphic RAW: up to 3.5Kp60 via HDMI
  • 2K RAW: up to 2Kp240 via SDI
  • 4K DCI: up to 4Kp60
  • 4K UHD: up to UHDp60
  • 2K DCI 2048 x 1080: up to 2Kp60 via SDI
  • FHD 1920 x 1080 Progressive: up to 1080p120
  • FHD 1920 x 1080 PsF: Only via Pulldown to Progressive
  • FHD 1920 x 1080 Interlaced: 1080i50 / 1080i60
  • 1280 x 720p: up to 720p60

  • Recording Codecs
  • Apple ProRes RAW: ProRes RAW & RAW HQ
  • Apple ProRes: HQ, 422, LT
  • Avid DNxHD: 220x, 220, 145, 36 (.MOV Wrapper " .MXF Support coming soon)
  • Avid DNxHR: HQX, HQ, SQ, LB (.MOV Wrapper " .MXF Support coming soon)
  • H.265: XQ, HQ, MQ, LQ (.MOV Wrapper)

  • Recording Functions
  • Camera to Cloud: H.265 uploaded to Atomos Edit, Adobe, Sony CI Media
  • Simultaneous Proxy Recording: ProRes RAW / ProRes / DNx + H.265 Proxy in C2C Mode
  • Pre-roll Recording: 8s HD / 4s 4K " ProRes & DNx only
  • Timelapse: Supported
  • Gang Control: Via AirGlu? SYNC Timecode Network
  • Scheduled Recording: At specified Time of Day or after a specified Time has elapsed

  • Playback
  • Playlist: Selected Clips, Favorites, or Combined
  • Loop: Supported, with user-customizable In / Out Markers
  • Apple ProRes Raw: Recorded clips only
  • Apple ProRes: HQ, 422, LT (Linear PCM Audio only)
  • Avid DNx: DNxHD: 220x, 220, 145, 36 " DNxHR HQX, HQ, SQ, LB (Linear PCM Audio only)
  • H.265: Recorded clips only
  • Scheduled Playback: At specified Time of Day or after a specified Time has elapsed

  • Supported Media
  • Master Caddy I: Not Supported
  • Master Caddy II: Supported
  • Master Caddy III: Supported
  • SSDmini: Supported
  • CFast 2.0: Supported via optional AtomX CFast 2.0 Adapter
  • Network: Capture to Cloud via Atomos Cloud Studio
  • File System: exFAT
  • Interface: SATA 3.0

  • On-Screen Tools
  • Waveform: 3 Sizes " Adjustable Opacity & Brightness
  • RGB Parade: 3 Sizes " Adjustable Opacity & Brightness
  • Vector Scope: 2 Sizes " Adjustable Opacity & Brightness
  • 1 x Zoom: Tap to Zoom
  • 2 x Zoom: Tap to Zoom
  • Focus Peaking: 3 Modes (Color, Black & White, Outline) with adjustable Outline Color & Peaking Intensity
  • Zebra: Adjustable Threshold (50% to 105%)
  • Isolate Color Channel: Blue Only
  • Cine Frame Guides: 6 Presets & Custom Frame Guide Calculator
  • Social Frame Guides: 4 Presets & Custom Frame Guide Calculator
  • Safe Areas: SMPTE Safe Title Area " 93% & 90%
  • Grid Markers: 9 Grid
  • Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
  • Display Flip: Vertical
  • Colorized Exposure: Atomos False Color, EL Zone System, Arri False Color
  • Frame Grab + Onion Skin Overlay: Capture lossless 1920 x 1080 Pixel Frame Grab & Overlay with various Position + Transparency Options

  • Onboard Signal Processing
  • 4K UHD Downscale for HD: Available on loop out
  • DCI Crop: Available on loop out
  • 6K RAW to 4K Video Loop Out: Available on loop out
  • Interlaced to Progressive: 2:2 & 3:2 Pulldown
  • PsF to Progressive: 2:2 & 3:2 Pulldown

  • Remote Control
  • HDMI: Trigger Recording via Camera Record Button " Supported Protocols: Canon, Sony, Atomos Open Standard, Timecode (Rec Run)
  • SDI: Trigger Recording via Camera Record Button " Supported Protocols: Arri, Canon, Ikegami, JVC, Panasonic, RED, Sony, Timecode (Rec Run) (optional Atomos Connect Accessory required)
  • Serial 2.5mm Jack: Start & Stop Recording via compatible LANC Remotes " Calibration via optional USB to Serial Cable
  • Bluetooth LE: via AtomRemote App
  • Wireless RF: AirGlu? Gang Control

  • External Device Control
  • Serial 2.5mm Jack: Z CAM Camera Control via Remote to USB-C Cable

  • Cut & Tag
  • FCP XML: Up to 10 Tags supported for each Clip

  • What's in the box
  • Box Contents: 1 x Shogun, 1 x International Power supply, 1 x 7" protective Pouch, 1 x AtomX SSDmini Handle, 1 x MasterCaddy III with screws, 2 x WiFi Antennas with black caps, 1 x RF antenna, 1 x Antenna storage Pouch, 1 x 3.5mm Audio Jack to Jack cable, 5 x Colored Antenna caps, 2 x Antenna mount covers, 1 x Screen Cloth
  • Optional Extras: AtomX Monitor Mount, AtomX Magic arm 10" / 13", USB-C Dock, PowerKit, HDMI Cables
