UPC/EAN #814164022767     MPN #ATOM-ZATC01

$539.00

Financing available
Free shipping in Canada. Conditions

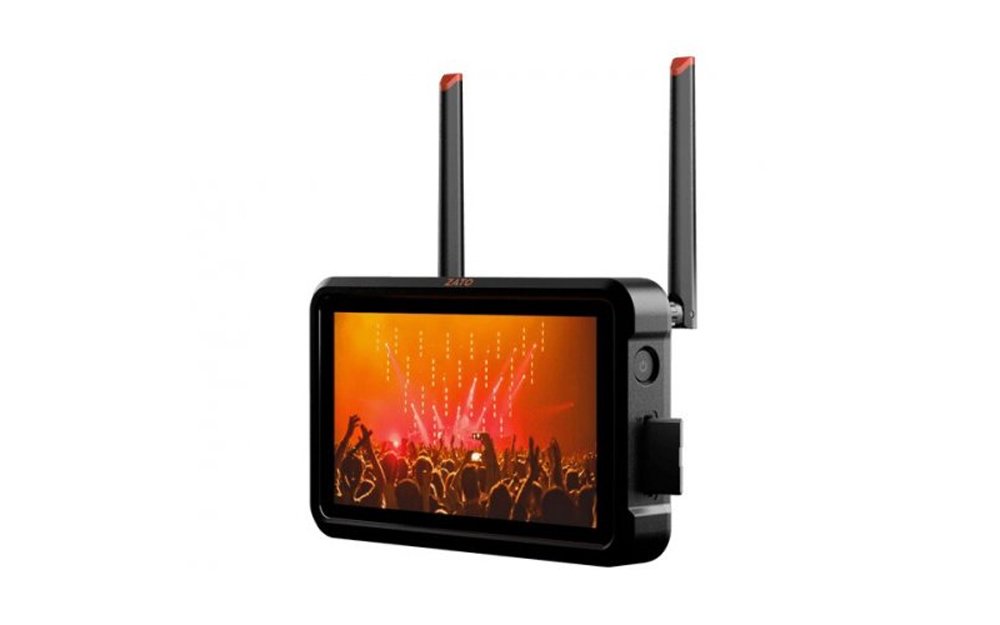

Video monitor & recorder with 5.2" 1920 x 1080 touchscreen display, Wi-Fi 5, and Gigabit Ethernet via USB Type-C



All-in-One
ZATO CONNECT has been designed to act as a compact, easy-to-use gateway to ATOMOS Cloud Studio. The device supports nearly all HDMI and USB UVC sources to livestream to Facebook Live, Twitch, YouTube, and other social sites, or can be used to create a webcam source for Microsoft Teams, Slack, Zoom, and other conferencing software.

But Easy-to-Use
The implementation of the AtomOS Lite software provides an intuitive and easy-to-use experience for new customers. The software includes all the essential tools, so it feels familiar for existing customers too. With a compact form factor, the SuperAtom IPS 5-inch (1000nit) display, Wi-Fi 5, USB-C, and Ethernet (via USB-C adapter) connectivity, as well as, NP-F battery or USB-C PD power options, ZATO CONNECT is an ideal companion for livestreaming in the field, the studio, or wherever else it travels.

Stream From Anywhere
Livestreaming and high-quality video conferencing is made easy and accessible with ZATO CONNECT. With support for HDMI and USB UVC cameras or video sources, the device is equipped with Wi-Fi 5, Gigabit Ethernet (via USB-C), and the ability to join cellular hotspots, everyone can stream to Facebook Live, Twitch, and YouTube, or create high-quality video for Microsoft Teams, Slack, and Zoom from anywhere.

Streaming Simplified
Anyone can setup a livestream using ATOMOS Cloud Studio and create high-value video content with the easy-to-use ZATO CONNECT. The 5-inch touchscreen display can be used to switch between sources and monitor the outgoing program stream. The device is compact enough to mount on a DSLR or mirrorless camera rig. It?s equally at home next to a PC, Mac computer, or gaming console. Streaming has never been easier and ZATO CONNECT is the ideal, all-in-one solution.

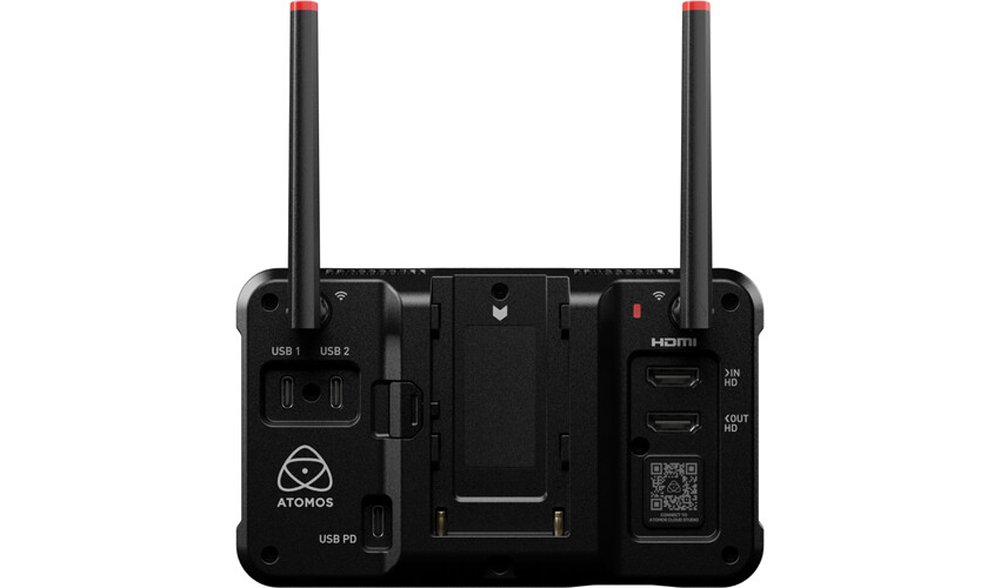

Comprehensive I/O
While incredibly compact, the ZATO CONNECT lives up to its name. Featuring input and output ports for both HDMI and USB UVC, the device can transform the output from a wide array of video equipment into a livestream or webcam source. The 3.5mm audio jack can also be used to add microphone or line sources and the ZATO CONNECT can be used to mix them with embedded audio from HDMI or USB UVC.

Go Live or As Live!
Each livestream can be recorded as local H.264 backup to an SD card. With the ability to combine recorded sources with live content, it?s possible to take one of these recordings and stream the content ?as live? with ZATO CONNECT. This opens lots of creative opportunities and adds value to any stream or video presentation.

Get your Audio in the Mix
ZATO CONNECT includes an audio mixer, which can be used to adjust and combine audio signals from the 3.5mm analog input with the embedded audio from HDMI and USB UVC sources. Each channel can be adjusted independently and mixed down to a single stereo track for a livestream, recording, or video presentation.

An Essential Toolkit
Whether it?s configuring streams, switching between sources, recording, playback, mixing audio, or adding effects, AtomOS Lite on the ZATO CONNECT makes it all a breeze. The software features a number of key tools including overlay effects, image zoom, and frame guides that will help add value to every stream or video conference.

Create an Identity
Whether through a livestream or virtual meeting, video has become an everyday part of all our lives. Today businesses, influencers, entrepreneurs, houses of worship, and educators all use video to establish an identity or reinforce a brand. Compelling content can make a difference and help emphasize branding, core messages, or even empower sponsorship opportunities. Applying graphic overlays to streams or watermarking recorded content is easy with ZATO CONNECT.
Physical Specifications
Dimensions (W x H x D mm): 151mm / 5.94" x 91,5mm / 3.6" x 29,5mm / 1.16"
Weight: 245g / 8.64oz.

Environmental
Ambient operating temperature: Up to 40 Degrees Celsius

Construction and Control
Body: Polycarbonate ABS Plastic
Cooling: Passive
Multi-function button: Power / lock Screen
Network Config Settings: Auto-Join WiFi, DHCP, Manual Network Configuration

Power
Input voltage: 6.2V to 16.8V
Operating power: 10W
Compatible batteries: 1 x NP-F / L-Series
Battery voltage: 7.2V
DC in connector: via locking DC Jack on optional Battery Eliminator (5.5mm OD & 2.1mm ID)
Dtap: Via optional D-Tap to DC cable
USB: USB-C PD

Display
Touchscreen: SuperAtom IPS panel (capacitive touch)
Size: 5.2"
Resolution: 1920 X 1080
Viewing angle: 178 + H & V
PPI: 427
Bit depth: 10-Bit (8+2 FRC)
Backlight Type: Edge
Brightness (cdm2 / nits): 1000
Color Gamut: Rec709
Calibration support: TBC

Video Input
HDMI: 1 x HDMI 1.4
USB: Webcam up to 1080p30
Bit Depth: 8-Bit
Video Chroma Subsampling: YCbCr 420

File Naming
Standard: Unit Name + Date + Time

Video Output
HDMI: 1 x HDMI 1.4

Network
Ethernet: via included USB-C Dongle
Wi-fi: WiFi 5
USB Host: USB Webcam
Atomos Cloud: Connect to Atomos Cloud Studio services
Cellular: Connect to Hot Spot via Wi-Fi

Web Streaming
USB UVC: Yes, up to 1080p30
RTMP / S: Yes, authenticate via Atomos Cloud Studio

Audio In/Out
Audio Quality: 16-Bit / 48kHz
Audio Codec: PCM (In & Out) & AAC (Streaming & Recording)
HDMI: 2ch, input dependent
Analogue Audio in: 3.5mm Jack - 5v power
Analogue Audio Out: 3.5mm Jack
Headphone out: 3.5mm Jack

Resolution and Frame Rates (Record, Monitor & Playback)
FHD 1920 x 1080 Progressive: up to 1080p60
1280 x 720p: up to 720p60

Recording CODEC
H.264: up to 1080p60

Playback
Loop: Yes
H.264: up to 1080p60
UVC Out Yes up to 1080p30

Monitoring
SDR: Rec.709

Multi Input / Switching
Graphic overlays: Upload custom PNG graphics

Supported media
SD SD UHS-1 (up to 128GB size)
File System exFAT

On screen tools
2 x Zoom: Tap to zoom
Social Frame guides: 16:9, 1.91, 4:3, 1:1, 4:5, 9:16
Grid markers: 9 Grid
Display Flip: Vertical and Horizontal (Selfie mode)

Supported Applications
Video Codecs: All Applications with support for H.264 in .MP4 wrapper

What?s in the box
Accessories included: 2 x Wi-Fi Antennas with black caps, 5 x Antenna colored caps: White/Red/Yellow/ Black/Green, 2 x Antenna Top Caps, 2 x Antenna Mount Cover, 1 x USB-C to USB-C Cable, USB-C to Ethernet Adapter, 1 x Antenna Storage Pouch, 1 x Quick Start Guide, 1 x Screen Cloth
