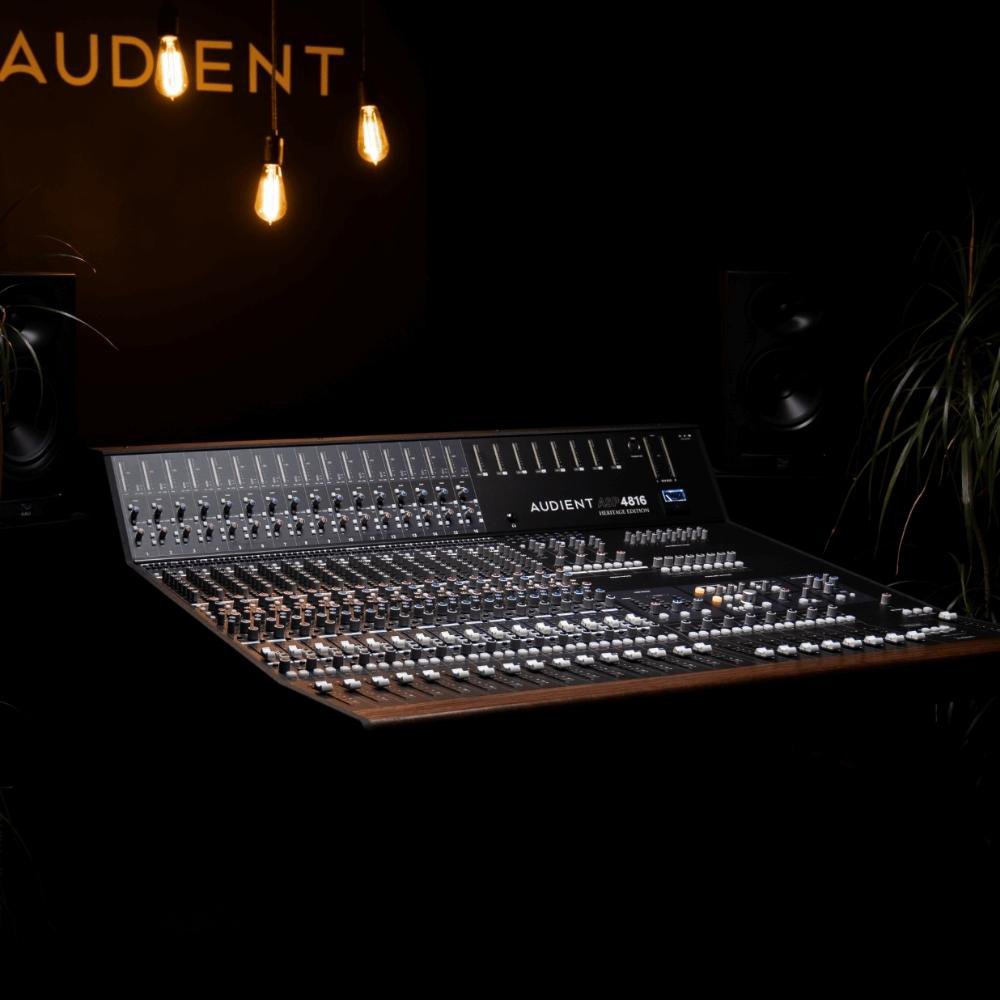

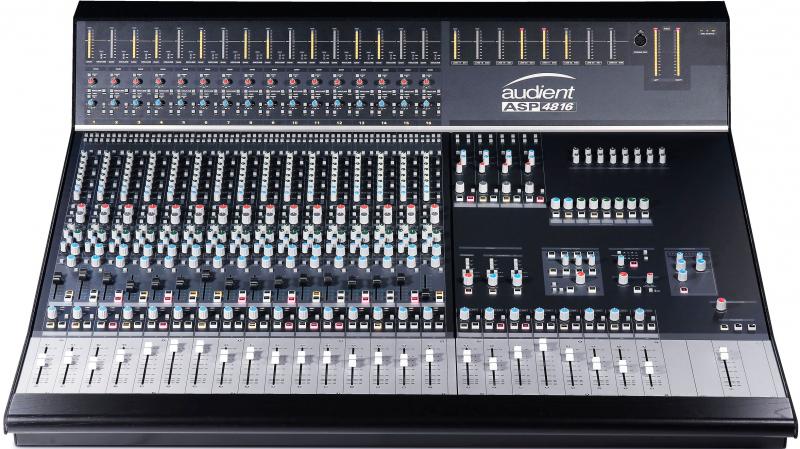

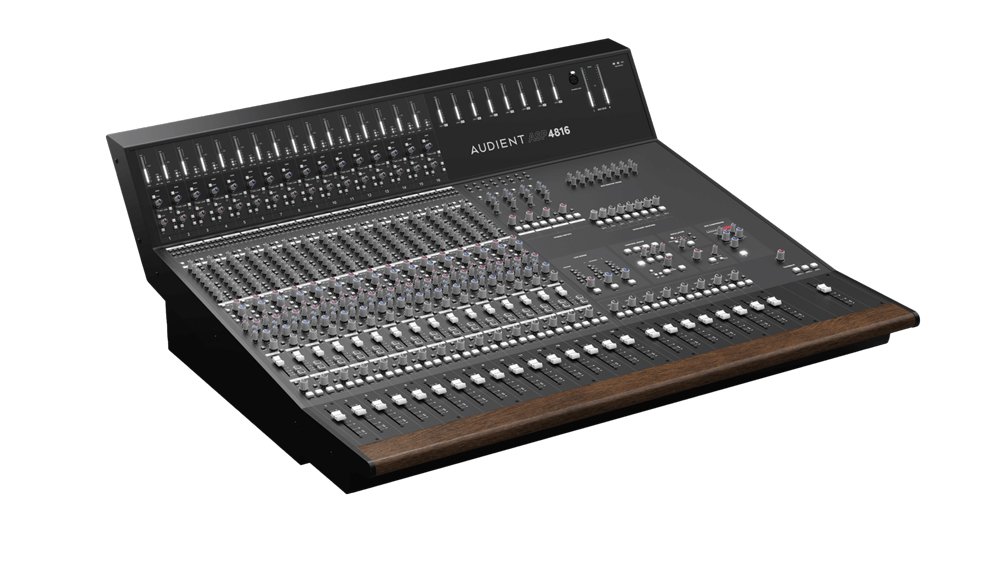

Audient ASP4816

The Audient ASP4816 provides the key features of a large format recording console in a compact, cost effective form. Perfect centre piece for production studios and educational.

ASP4816's many features include 16 channels of Class-A discrete microphone preamplifiers as used in our world renowned ASP8024 console and ASP008 8-channel microphone preamplifier, guarantee-ing outstanding sonic transparency and detail. When combined with high resolution bargraph metering, input conditioning, comprehensive cue monitoring options, ASP4816 is right at home in a tracking environment. A rear panel full of high quality locking XLR and TRS connectors ensures it is simple and quick to integrate your favourite outboard and existing microphone preamplifiers.

However, ASP4816 is equally comfortable as a mixing tool - with up to 6 selectable aux sends, inserts and dedicated DAW returns, 8 sub-groups with switchable inserts, 16 main output buses, classic Audient summing, VCA bus compressor and a high quality centre section complete with mono, dim, phase and comprehensive monitoring configurations - any eventuality is covered.
Features
  • In-line architecture - twin inputs on each channel
  • 40 faders
  • 48 inputs at mix
  • 16 Audient Class-A mic pres
  • 16 channels of EQ
  • 16 record buses
  • 6 auxes, 2 cue sends
  • Stereo bus compressor
  • Comprehensive monitor section
  • Specifications
    Frequency Response
  • Mic input to Mix output : <+0,-0.3dB 20Hz-20kHz @6-40dB gain.
  • Line input to Mix output: <+0,-0.3dB 20Hz-20kHz @0dB gain.
  • THD AND NOISE AT +20dB OUTPUT
  • Mic XLR input to any output: <0.005% at 1kHz
  • Line input to any output: <0.005% at 1kHz
  • Tape input to any output: < 0.003% at 1kHz
  • NOISE
  • Mic EIN (20-20kHz, 150R source): <-127.5dBu
  • Bus noise (no inputs routed): <-93dBu
  • Bus noise (36 inputs routed): <-78dBu
  • CROSSTALK AND MUTE ATTENUATION AT 1kHz
  • Short fader Mute: >90dB
  • Long fader Mute: >90dB
  • Mix assign: >90dB
  • Bus assign: >90dB
  • Mic CMR
  • Minimum Gain: 70dB
  • Maximum Gain: 75dB
  • MAXIMUM INPUT
  • Mic: >+21dBu (min gain)
  • Line: +30dBu (min gain)
  • insert return: >+21dBu
  • MAXIMUM OUTPUT INTO 2K OHMS
  • Mix output: >+26dBu
  • Bus output: >+26dBu
  • Aux output: >+26dBu
  • Insert send: >+20dBu
  • Monitor, Studio, F/B outputs: >+20dBu
  • Reviews
    Price *
    $24999.00
    $22499.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the ASP4816, please visit the website of Audient
