The ASP510 integrates easily and seamlessly with any console or DAW based surround set-up to provide comprehensive control of the monitoring and record functions for multiple surround sound formats. The ASP510 Controller has been designedand developed to provide highly robust system integration interfaces, allowing worry-free system hook-up under the most demanding situations. Inputs and outputs are implemented using advanced electronically balanced or ground sensing topologies and are fitted with extensive RFI rejection networks.

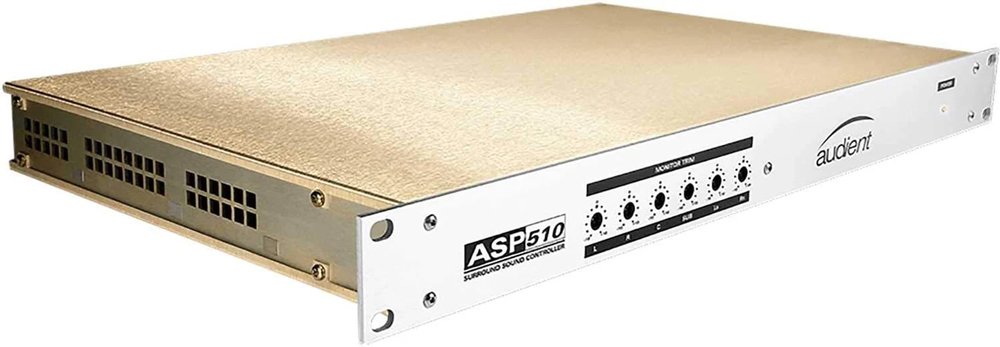

The ASP510 Surround Processor rack unit is connected to its remote control via a standard CAT5 data cable which plugs into the REMOTE socket on each unit. A 5m cable is supplied with the unit but any non-reversed CAT5 FTP (sheilded twisted pair) cable may be used. The maximum recommended length of cable is 20m.

6 preset MONITOR FORMATS.

Supports three 5.1 SURROUND and three STEREO sources.

8 inputs from console ( 5.1 SURROUND plus STEREO).

8 outputs to recorders ( 5.1 SURROUND plus STEREO).

Switchable ENCODER/DECODER insertion.

6 speaker outputs, each with LEVEL TRIM.

Individual speaker CUT/ISOLATE functions.

Universal console SOLO and MONITOR system interface.

User definable Monitor REFERENCE and DIM levels.

Internal PINK NOISE generator.

GUIDE track input.

Ergonomic control surface with clear status indication.

Nominal levels: +4 dBu

Maximum input: > +20 dBu

Maximum output: >+20 dBu

Frequency response: ±0.25 dB, 22 Hz -22 kHz

THD and noise: @+4 dBu, 1 kHz

Noise: 22 Hz - 22 kHz, -92dB

Crosstalk (source/source): 1 kHz >80 dB

Channel tracking: 0 to -24 dB ±0.25 dB

System Interfaces

25pin D-type females for: 5.1 Surround play A and B, 5.1 Surround bus inputs, Stereo record/transmission & play Console interface Decoder.

25pin D-type males for: 5.1 Surround record A and B, Speaker outputs, Encoder

RJ45 for remote/rack link

Dimensions

Rack unit: 1U x 280 mm

Remote: W 230 mm D 120 mm H 40 mm

Power Requirements

115/230V at 50-60 Hz (50VA)

Applications

Surround sound music production. DVD-V and DVD-A authoring. Film and Video Post-Production. Film Production and Foley. SACD authoring. DTS authoring. Video games production. Digital television. Audio visual production. Multi-channel OBs.
