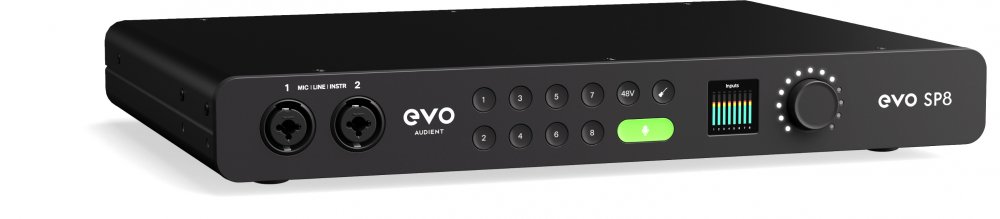

Audient EVO SP8

MPN #Evo-SP8

$699.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

8 Channel Smart Preamp with AD/DA converters and ADAT I/O

The ultimate studio preamp expander is here. EVO SP8 is designed to be the perfect partner for expanding your existing audio interface. Give your studio the performance and capability boost it needs, providing eight intelligent EVO Preamps that set their own levels with Smartgain, advanced AD/DA converter technology and a versatile range of I/O connectivity. Add to that two JFET instrument inputs, the all new, groundbreaking Motion UI control system and exceptional audio performance across the board. The EVO SP8 might just be the world's smartest Mic Preamp.

The perfect partner for your audio interface
Bigger sessions demand more channels and expanding your existing audio interface via ADAT might be the most cost effective solution to scale up your studio. EVO SP8 provides eight mic/line inputs, eight line outputs and 2 x ADAT connections, giving you enough I/O firepower to easily tackle multi-mic sessions like recording drums, or taking on a full band.

Features

8 x EVO Mic Preamps

2 x JFET Instrument Inputs

8 x Line Outputs

2 x ADAT Inputs

2 x ADAT Outputs

Class Leading AD/DA Converters

Multi-Channel Smartgain

?EVO Motion UI' Control System

High-Res LCD Screen

One Knob Centralised Control

Ultra Clear Metering

Input/Output Control

Channel Status Indication

Optional Rack Ears

Word Clock Input

24bit / 96kHz

Specifications

Microphone Preamplifier
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: <-127.5dB
CMRR: >80dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3k? Balanced
Input Impedance (Line): >10k? Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz <-103 @ 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I Inputs
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 500k
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.1%
SNR: 100dB
1/4" Jack: TIP (Hot) & SLEEVE (Shield)

ADC
Digital Reference Level: 0dBFS = +10.5dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -125dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 112.5dB A-Weighted

Line Outputs
Maximum Output Level: 12dBu
Digital Reference Level: 0dBFS = +12dBu
Output Impedance: <50?
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.006%
Dynamic Range: >117dB A-weighted
1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Dimensions
Unit: 355mm (w) x 255mm (d) x 53mm (h)
