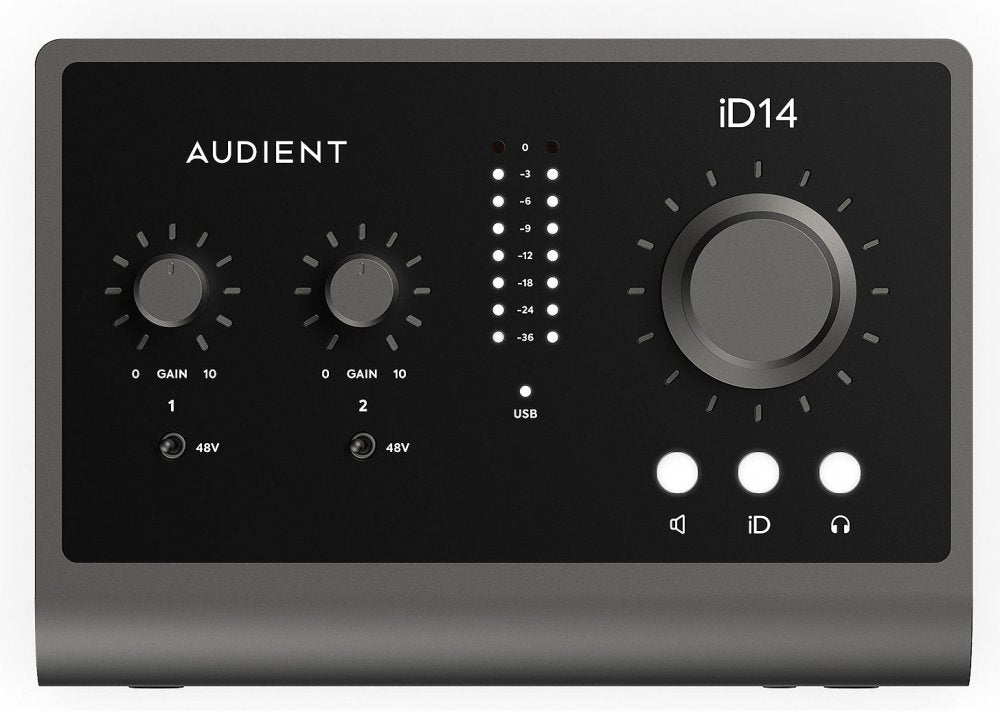

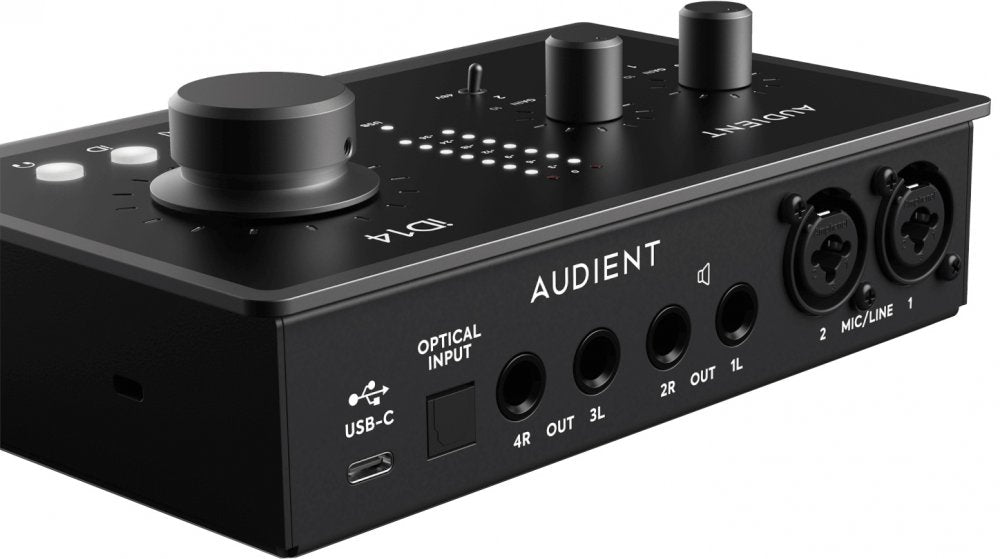

Audient ID14 MkII
MPN #iD14 Mk.II
Save 12.5%, MSRP $479.00
USB audio interface with dual Class-A Audient console mic preamplifiers, Burr Brown AD/DA converters, and ADAT
Designed to take your recordings to the next level in every way, the iD14 (MKII) delivers professional audio performance in a compact and modern desktop package, giving you everything you need to make studio quality recordings at home.
Audient Console Mic Preamps
The professional sound you deserve
Every iD interface features the Audient Console Mic Preamp, the same discrete circuit design found in our renowned recording console the ASP8024-HE. Designed to deliver ultra- low noise and low distortion with a touch of classic analogue warmth, iD14?s two Audient mic pre?s will give you the professional sound you deserve.
How does it sound
The Audient mic pre is a high grade hybrid discrete and op amp design that delivers a clean, accurate and detailed translation of your source.
Now that?s quiet
With a noise floor 30,000 times quieter than the signal level your recordings will be captured with stunning clarity.
Class leading converters
Its all in the details
iD14?s converters make sure you hear every nuance, every detail of your audio, enabling you to take your recordings to the next level. Offering an incredible 126dB of dynamic range you will hear your audio more accurately, make better creative decisions and experience stunning clarity directly from your desktop.
Connect and listen to your mixes through two sets of speakers with iD14?s four line outputs. Alternatively use the extra line outputs to send audio to an external headphone amp for distribution to your artists.
Dual Headphone Outputs
Equipped with both a jack and mini jack connection and a powerful headphone amp capable of driving headphones up to 600Ohms, iD14 is ready to take on the most demanding recording sessions.
JFET Instrument Input
Plug and play
Designed to replicate the input stage of a classic valve amplifier, iD14?s harmonically rich JFET Instrument Input is the perfect sonic foundation for your guitar or bass and amp sims.
Expand via ADAT
More channels, more possibilities
Plan for the future with iD14?s digital input. Supporting both ADAT and SPDIF, iD14 gives you the option to add up to eight extra mic pre inputs letting you expand your rig and take on larger sessions.
Experience ultra low latency
Keep it simple with the powerful but intuitive iD Mixer. Create and customise low latency headphone mixes, utilise the flexible monitor control or simply keep an eye on your levels " all from one easy to use app.
Innovation meets communication
iD14?s dedicated talkback technology enables you to use any audio source connected to your computer such as a built in or USB microphone as your talkback mic, freeing up valuable mic pres for recording.
Advanced Monitor Control
Speed up your workflow with the iD button. Assign any of iD14?s advanced monitoring features to the iD button, including DIM, CUT, Polarity Reverse, Mono Sum, Talkback or Cue Mix monitoring, and experience complete control at your fingertips.
2 x Audient Console Mic PresClass Leading Converters1 x JFET Instrument InputDual Headphone OutputsDigital ExpansionUSB Bus Powered
D.I / Instrument Input
RANGE: 40dBLINEUP: 12dBu = 0dBFSTHD+N @ 0dBu: 0.1%SNR: 100dBu A-WeightedFREQUENCY RESPONSE " MIN GAIN ±0.5dB 10Hz to 20kHz1/4? TS JACK: Tip (Hot) & Sleeve (Shield)
GAIN RANGE: 58dBLINEUP: 12dBu = 0dBFSMIC MAX INPUT LEVEL: 12dBuMAX INPUT LEVEL: 21dBuINPUT IMPEDANCE (Mic): 2.8kINPUT IMPEDANCE (Line): >8kTHD+N @ 0dBu 0.00170%SNR: 101dBu A-WeightedEIN: 129dB A-WeightedCMRR @ 1k: >75dBCROSSTALK: >-100dBFREQUENCY RESPONSE " MIN GAIN ±0.5dB 10Hz to 40kHzXLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)1/4? TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
Analogue to Digital Converter
THD+N @ -1dBFS: 0.001%DYNAMIC RANGE: 120dB A-WeightedCMRR: >80dBFREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
Line Outputs (DAC):
LINEUP: 12dBu = 0dBFSTHD+N @ -1dBFS: 0.0006%DYNAMIC RANGE: 125.5dB A-WeightedCROSSTALK: >120dBFREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz1/4? TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
LINEUP: 18.5dBu = 0dBFSTHD+N @ -1dBFS: 0.0009%DYNAMIC RANGE: 125.5dB A-WeightedCROSSTALK: >116dBFREQUENCY RESPONSE: ±0.25dB 10Hz to 40kHzMAXIMUM LEVEL @ 30R: 2.59V Peak, 1.827V RMS, 223mWMAXIMUM LEVEL @ 62R: 4.18V Peak, 2.95V RMS, 280mWMAXIMUM LEVEL @ 600R: 7.72V Peak, 5.46V RMS, 100mW1/4? TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed:
BUS POWER:MIN REQUIREMENT: 0.9A @ 5V >=USB 3.0 PortMAX REQUIREMENT: 1.5A @ 5V USB-C: Provides higher headphone outputs levelsNo. of INPUT CHANNELS: 10No. of OUTPUT CHANNELS: 16DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS48.0kHz 0.6mS88.2kHz 0.33mS96.0kHz 0.31mS
