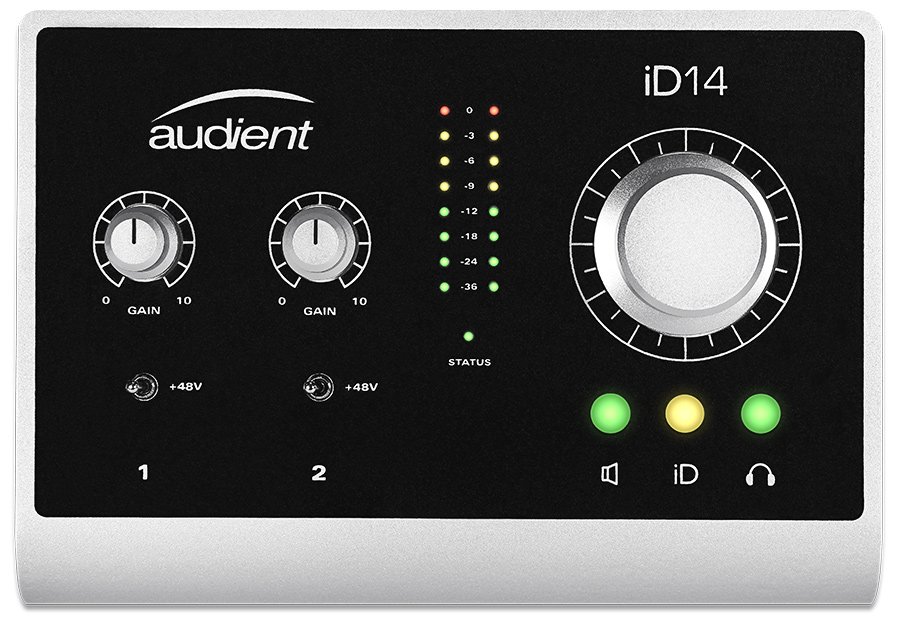

Audient iD14

The Audient iD14 is a USB audio interface delivering the audio performance of a large format console in a compact and elegant desktop package.

iD14 provides a pair of world-class Audient console mic pres, class-leading Burr Brown converter technology, console style monitor control, JFET D.I and the revolutionary ScrollControl. With its versatile feature set and intuitive layout, iD14 will become the hub of your studio in no time.

We are the only company that use the same Class-A mic pre design throughout our entire product range, whether you're in the studio with an Audient console or on the road with iD14, you're always guaranteed the same world class Audient sound.

Developed by design legend David Dearden and optimised over 18 years of refinement, our mic pre is used by thousands of professional studios around the world. With its versatile nature and smooth tone, the iD14 will quickly become your 'go to' mic pre.

iD14 provides you with high performance AD-DA converters from Burr Brown, the leaders in converter technology. Quality in the analogue stages of design comes from years of experience as analogue console designers, and when coupled with outstanding converter technology it enables you to hear audio as it's supposed to sound. The importance of converters should never be underestimated. Experience audio the Audient way.

As well as offering you 2 channels of mic pre, iD14 has a harmonically rich JFET D.I input. Designed to replicate the input stage of a classic valve amplifier, you can plug your guitar, bass, keyboard or drum machine straight in and start recording instantly.

We understand the need to keep things simple and iD14's mixer app was designed with that in mind. Whether you're creating low latency cue mixes or utilising the flexible monitor control, iD14 tightly integrates the hardware and software making the recording process easy. Enabling you to concentrate on what's really important - the music.

It gets even better! When not using the virtual scroll wheel, the iD button can be assigned to control iD14's monitoring features. Following in the footsteps of it's critically acclaimed big brother iD22, we've still included DIM, CUT, Polarity Reverse, Mono Sum, Talkback and Cue Mix monitoring, all of which can be assigned to the iD button.

Need to track drums No problem! As your system grows, iD14 can be expanded via the optical input connector, supporting both ADAT or S/PDIF. Enabling you to expand up to ten inputs via an eight-channel mic pre, such as the ASP880.

iD14 has been designed to last, from its all-metal construction, hand finished aluminium knobs and high grade component selection, iD14 will stand up to countless late nights in the studio and days on the road.
Features
  • 2 x Class-A Audient Console Mic Preamplifiers
  • 2-in / 4-out High Performance Burr Brown AD/DA Converters
  • 1 x Discrete JFET Instrument Input
  • Main Speaker Output
  • Independent Class-AB Headphone Output
  • Full Monitor Control Functionality (software controlled)
  • ADAT Input for Expandability
  • Low Latency DSP Mixer
  • iD ScrollControl Mode
  • All-Metal Enclosure
  • USB2.0 Bus Powered
  • Specifications
    MICROPHONE PREAMPLIFIER
    (measurement includes ADC signal path)
    MIC GAIN: 0 to 66 dB (inc. +10 dB software boost)
    LINE GAIN: -10 to 56 dB (-10dB hardwired line pad)
    PHANTOM POWER: 48V ±4V @ 10mA/Channel (12VDC only)*
    MIC EIN: <-127.0 dBu
    CMRR: >80 dB @ 1kHz
    MAXIMUM INPUT LEVEL: +12 dBu (0 dBFS digital Maximum)
    INPUT IMPEDANCE (Mic): 2.8 k Balanced
    INPUT IMPEDANCE (Line): >8k Balanced
    FREQUENCY RESPONSE: ±0.1 dB 20Hz to 22kHz @ min. gain
    ±1.0 dB 20Hz to 22kHz @ max. gain
    CROSSTALK: <-90 dBu
    THD+N @ 0dBu (1kHz): 0.0025% (-92 dBu)
    SNR: 96 dB un-weighted, 99 dB A-weighted
    XLR Combi Female Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
    1/4" TRS Jack Tip (Hot), Ring (Cold) & Sleeve (Shield)
    D.I (Channel 1)
    D.I GAIN: 0 to 66 dB (inc. +10 dB software boost)
    MAXIMUM INPUT LEVEL: +9 dBu (0.6% THD typical)
    INPUT IMPEDANCE: >500k Unbalanced
    FREQUENCY RESPONSE: ±0.1 dB 20Hz to 22kHz
    THD+N @ 0dBu (1kHz): <0.04% all musical 2nd and 3rd harmonics
    SNR: 95 dB un-weighted, 98 dB A-weighted
    1/4" JACK: TIP (Hot) & SLEEVE (Shield)
    ANALOGUE TO DIGITAL CONVERTER (ADC 1 & 2)
    (measured sans microphone preamplifier under AES-17)
    MAXIMUM INPUT LEVEL: +12 dBu (0 dBFS digital maximum)
    DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
    FREQUENCY RESPONSE: ±0.1 dB 10Hz to Fs/2 (flat to nyquist)
    CROSSTALK: -100 dBu @ 1kHz & 10kHz
    THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
    THD+N @ -6dBFS (1kHz): <0.0015% (-97 dB)
    DYNAMIC RANGE: 113 dB un-weighted
    116 dB A-weighted
    DIGITAL TO ANALOGUE CONVERTER (DAC 1&2)
    (measured under AES-17 at line outputs 1&2)
    MAXIMUM OUTPUT LEVEL: +12 dBu (0 dBFS digital maximum)
    DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
    OUTPUT IMPEDANCE <100
    FREQUENCY RESPONSE: ±0.1 dB 10Hz to Fs/2 (flat to nyquist)
    CROSSTALK: <-105 dBu @ 1kHz & 10kHz
    THD+N @ -1dBFS (1kHz): <0.003% (-90.5 dB)
    DYNAMIC RANGE: 114 dB un-weighted
    117 dB A-weighted
    1/4" TRS Jack Tip (Hot), Ring (Cold) & Sleeve (Shield)
    HEADPHONE OUTPUT (DAC 3&4)
    (measured under AES-17 at phones output)
    MAXIMUM OUTPUT LEVEL: +12 dBu
    DIGITAL REFERENCE LEVEL: +12 dBu = 0 dBFS
    VOLTAGE GAIN: +6 dB (optimised for loudness)
    OUTPUT IMPEDANCE: <30 Balanced
    FREQUENCY RESPONSE: ±1.0 dB 10Hz to Fs/2 (load dependant)
    CROSSTALK: -100 dBu @ 1kHz & 10kHz
    THD+N @ -1dBFS (1kHz): <0.002% (-94 dB)
    DYNAMIC RANGE: 108 dB un-weighted
    111 dB A-weighted
    MAX LEVEL INTO 30ohms: +4 dBu, 0.005% THD+N, Power: 101mW
    MAX LEVEL INTO 60ohms: +5 dBu, 0.004% THD+N, Power: 64mW
    MAX LEVEL INTO 600ohms: +13 dBu, 0.0025% THD+N, Power: 39mW
    1/4" JACK: TIP (Left), RING (Right) & SLEEVE (Shield)
    DIGITAL INPUT
    8-CHANNEL ADAT: 44.1kHz to 48kHz
    4-CHANNEL ADAT: 88.2kHz to 96kHz SMUX
    STEREO S/PDIF / TOSLINK 44.1kHz to 96kHz (Stereo)
    USB 2.0 HIGH SPEED
    BUS POWER: 500mA @5V System Limit
    425mA @5V Maximum (No 48V)
    (Phantom power only available on 12VDC)*
    No. of INPUT CHANNELS: 10 (2 Analogue, 8 Digital)
    No. of OUTPUT CHANNELS: 4 (4 Analogue)
    DSP MIXER LATENCY
    ROUND TRIP (in-to-out)
    44.1kHz 1.660ms
    48.0kHz 1.531ms
    88.2kHz 0.844ms
    96.0kHz 0.771ms
    POWER SUPPLY
    12VDC Centre Positive - 1.25A (required for full 48V Phantom Power)*

    * iD14 requires a lot of power for class leading converters and class-A microphone preamplfiers. We could not beat the laws of physics so an external supply is required for 48V phantom power. Your microphones will thank you when they get enough voltage!
