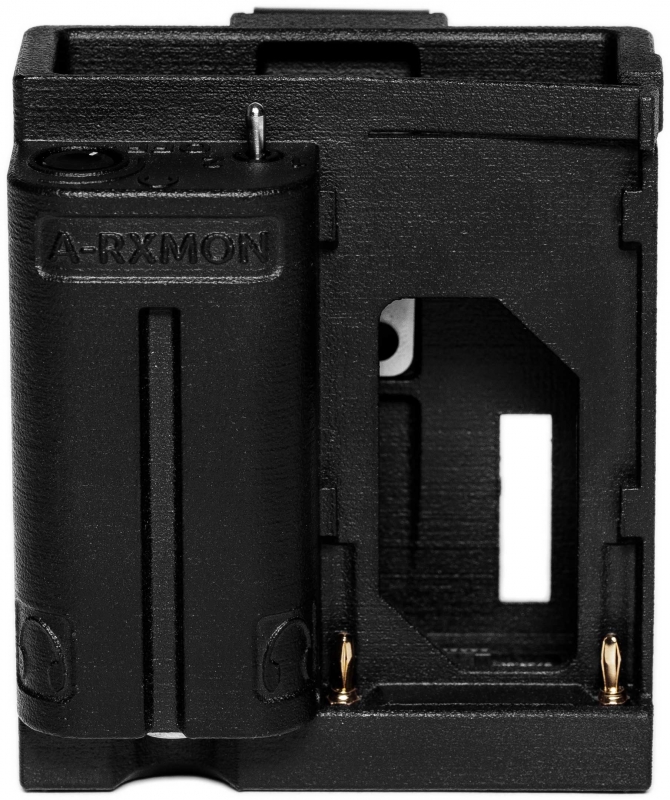

Audio Limited A-RXMON
MPN #A-RXMON
Monitor any A10 transmitter on set with this handy belt-worn headphone amp for your A10-RX.
The A-RXMON provides a simple, portable solution for easily monitoring two A10-TX audio channels with headphones.
Features
Accommodates the A10-RX receiver (sold separately)Uses standard Sony L-mount batteries (sold separately)Heavy-duty 3.5 mm headphone jackRugged, spring steel belt clipUser-friendly headphone volume control/power switchRecess the headphone knob to prevent against accidental adjustmentsMonitor channel 1, channel 2 or a stereo mix of both channelsPair with the A10 User Groups feature for fast and intuitive switching between multiple A10-TX frequenciesMicro USB port for updating firmware and loading User Groups on the A-RXMON
Specifications
Material: 30% fiberglass-filled nylon
Weight: 4.6 oz / 130.4 g
Operating Voltage: 6 - 8.4 VDC
Headphone Out
3.5 mm TRS headphone jack, compatible with mono or stereo headphones of any impedanceFrequency response 20 Hz - 20 kHz +/- 1dB referenced to 1kHz
Audio Gain Control: 8-600 ohms impedance
Powering: 1 Sony L-type Li-ion battery
Battery Run Time
2200mAHr Runtime ~3Hr 15Min4400mAHr Runtime ~7Hr 30Min
