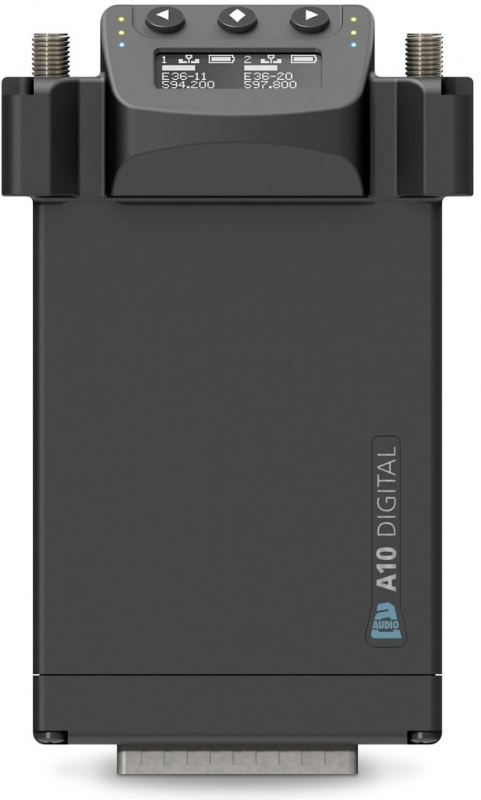

The A10-RX-SL-US is a two-channel, dual-diversity receiver, D-sub connector and plate for Uni-/Superslot
The two-channel A10-RX receiver is an advanced digital tool that works with either one or two A10-TX transmitters. With its Advanced Digital Diversity System the A10-RX receiver selects the best signal between each channel's two receivers. When at the limits of system operation ADDS combines error-free digital packets from each receiver. This results in lossless, wireless digital audio up to the absolute limits of operation.
The A10-RX is offered in two versions, the A10-RX-SL for uni- and Superslot mounting, and the A10-RX-XLR for stand-alone operation in a production bag.
World Models Operating Frequency Range: 470-694 MHzUSA Models Operating Frequency Range: 470-608 MHzSwitching Bandwidth: Tuneable in 25 kHz steps throughout the 224 MHz receiver tuning rangeAudio Frequency Response: 20 Hz-20 kHzOutput Gain Control: 0 dB (+12 dBv) to -36 dB in 12 dB steps, menu controlledOutput - Analog: Balanced mic- or line-level, line level over Uni/SuperslotOutput Digital: AES3 (balanced), two channelMenu: 3-button navigation, OLED displayPowering: 6-18 VDCOperating temperature range: -10 °C to +55 °CWeight: 180 gDimensions: 124 x 68 x 18 mm
Manufacturer Part Number : A10-RX-SL-US
