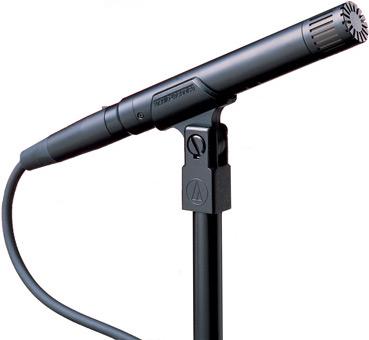

Ideal for professional recording and critical applications in broadcast the Audi Technica AT4051b cardioid condenser microphone consists of the AT4900a-48 body with the AT4051a-EL.
This versatile studio performer may be used with confidence in a wide variety of professional miking applications, even under the stringent demands of modern digital recording systems. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.
Direct-coupled, balanced output ensures a clean signal even in high-output conditionsExceptionally low self-noise, very high output and fast transient responseAccepts optional interchangeable capsules: AT4049a-EL (omnidirectional) and AT4053a-EL (hypercardioid)Switchable 80 Hz hi-pass filterTurned-brass microphone housing with black chrome platingThe AT4051a consists of two modular subassemblies: an AT4900a-48 body and an AT4051a-EL head capsule (both available separately)
ELEMENT : Externally polarized (DC bias) condenserPOLAR PATTERN : CardioidFREQUENCY RESPONSE : 20-20,000 HzLOW FREQUENCY ROLL-OFF : 80 Hz, 12 dB/octaveOPEN CIRCUIT SENSITIVITY : -34 dB (19.9 mV) re 1V at 1 PaIMPEDANCE : 100 ohmsMAXIMUM INPUT SOUND LEVEL : 146 dB SPL, 1 kHz at 1% T.H.D.NOISE : 19 dB SPLDYNAMIC RANGE (typical) : 127 dB, 1 kHz at Max SPLSIGNAL-TO-NOISE RATIO : 75 dB, 1 kHz at 1 PaPHANTOM POWER REQUIREMENTS : 48V DC, 3.2 mA typicalSWITCH : Flat, roll-offWEIGHT : 4.2 oz (120 g)DIMENSIONS : 6.10" (155.0 mm) long, 0.83" (21.0 mm) body diameterOUTPUT CONNECTOR : Integral 3-pin XLRM-typeOPTIONAL INTERCHANGEABLE ELEMENTS : AT4049a-EL (omnidirectional); AT4053a-EL (hypercardioid)ACCESSORIES FURNISHED : AT8405a stand clamp for 5/8"-27 threaded stands; AT8159 windscreen; protective carrying caseAUDIO-TECHNICA CASE STYLE : S1
