Audio Technica ATM-DRUM7
UPC/EAN #042005197064
MPN #ATM-DRUM7

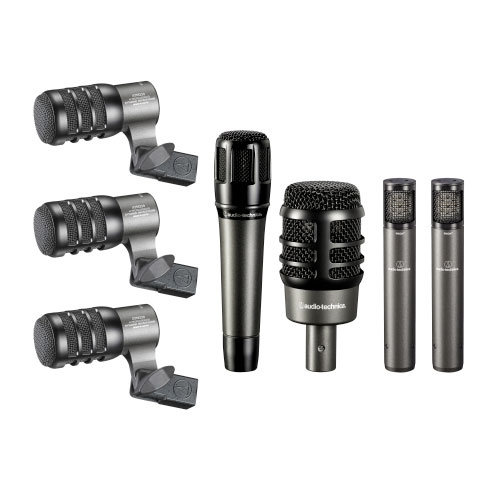

The ATM-DRUM7 pack gives you a complete set of drum microphones for live performance and home recording.
The ATM-DRUM7 Drum Pack includes a core selection of five microphones specifically engineered for kick, snare and tom drum applications, along with two microphones ideal for drum overhead miking.
All of the microphones in the pack - one ATM250 hypercardioid kick drum mic, one ATM650 hypercardioid snare mic, three ATM230 hypercardioid floor/rack tom mics, and two ATM450 cardioid overhead mics - feature a low-profile design for minimum visibility and versatile placement options around the drum kit. They are engineered to handle fast transients and high SPLs, and deliver superior off-axis rejection.
Also included in the package are the specified clamps for each microphone, four 5/8"-27 to 3/8"-16 threaded adapters, and a hard carrying case with a die-cut foam interior to hold all microphones and accessories.
Features
ATM250 Hypercardioid Dynamic Instrument Microphone (1 included)
Tailored for use on kick drums
Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Durable, proven performance for professional applications
Hi-ENERGY neodymium magnet for improved output and transient response
Superior off-axis rejection for maximum gain before feedback
Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
Rugged, all-metal design and construction for years of trouble-free use

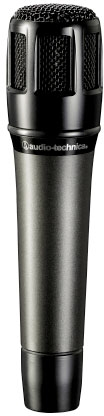

ATM650 Hypercardioid Dynamic Instrument Microphone (1 included)
Tailored for use on snare drums
Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Durable performance for professional applications
Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic
Hi-ENERGY neodymium magnet for improved output and transient response
Multi-stage flat grille design is engineered to enable easy placement as close as possible to sound source
Rugged, all-metal design and construction for years of trouble-free use
Includes AT8470 Quiet-Flex? stand clamp

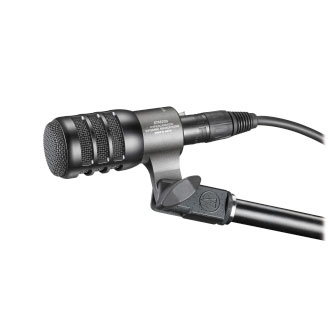

ATM230 Hypercardioid Dynamic Instrument Microphone (3 included)
Tailored for use on toms
Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Big, warm low-frequency response with excellent attack
Low-profile design permits versatile placement around drum kit
Rugged, all-metal design and construction for years of trouble-free use
Includes AT8665 drum mount

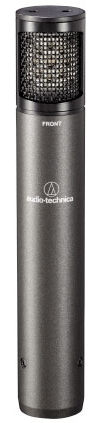

ATM450 Cardioid Condenser Instrument Microphone (2 included)
Tailored for use on cymbals
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Unique side-address stick design maximizes placement options with minimal obstructions
Integral 80 Hz HPF switch and 10 dB pad
Durable performance for professional applications
Rugged, all-metal design and construction for years of trouble-free use
Includes AT8471 isolation clamp for shock protection, secure mounting and easy positioning

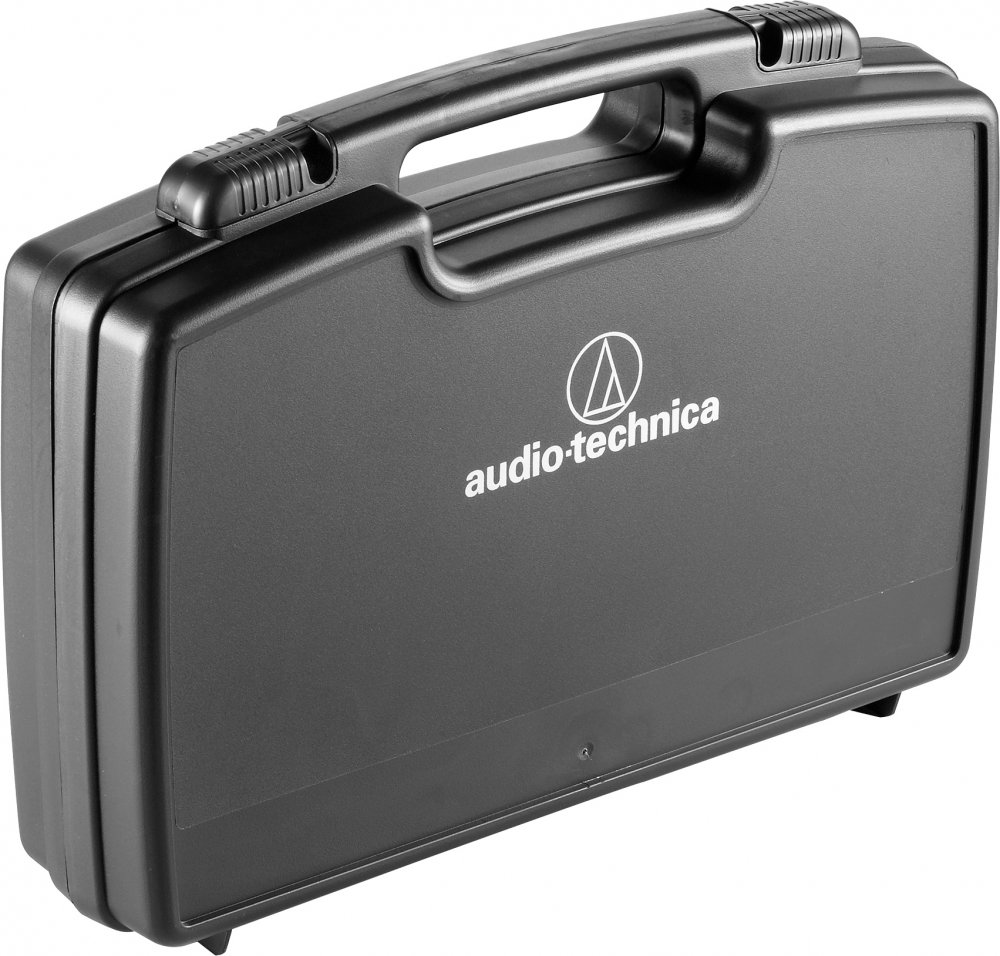

Pack includes a hard carrying case with die-cut foam interior
Specifications
ELEMENT
ATM250, ATM650, ATM230: DynamicATM450: Fixed-charge back plate permanently polarized condenser
POLAR PATTERN
ATM250, ATM650, ATM230: HypercardioidATM450: Cardioid
FREQUENCY RESPONSE
ATM250: 40-15,000 HzATM650: 80-17,000 HzATM230: 30-12,000 HzATM450: 40-20,000 Hz
OPEN CIRCUIT SENSITIVITY
ATM250: -54 dB (1.9 mV) re 1V at 1 PaATM650: -56 dB (1.5 mV) re 1V at 1 PaATM230: -54 dB (1.9 mV) re 1V at 1 PaATM450: -41 dB (8.9 mV) re 1V at 1 Pa
IMPEDANCE
ATM250: 600 ohmsATM650: 300 ohmsATM230: 600 ohmsATM450: 200 ohms
WEIGHT
ATM250: 252 g (8.9 oz)ATM650: 279 g (9.8 oz)ATM230: 292 g (10.3 oz)ATM450: 98 g (3.5 oz)
OUTPUT CONNECTOR
Integral 3-pin XLRM-type
ACCESSORIES FURNISHED
Three AT8471 isolation stand clampsAT8470 Quiet-Flex? stand clampFour 5/8"-27 to 3/8"-16 threaded adaptersThree AT8665 drum mic clampsHard carrying case
Audio-Technica Case Style
ATM250: R9ATM650: T5ATM230: R2ATM450: S11
