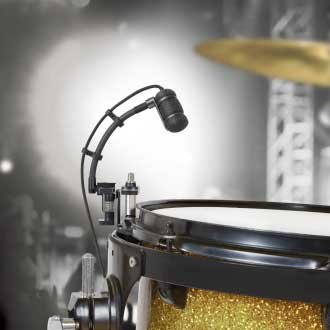

Designed for use with Drums, the ATM350D is a cardioid condenser instrument microphone with drum mounting system (5" Gooseneck)

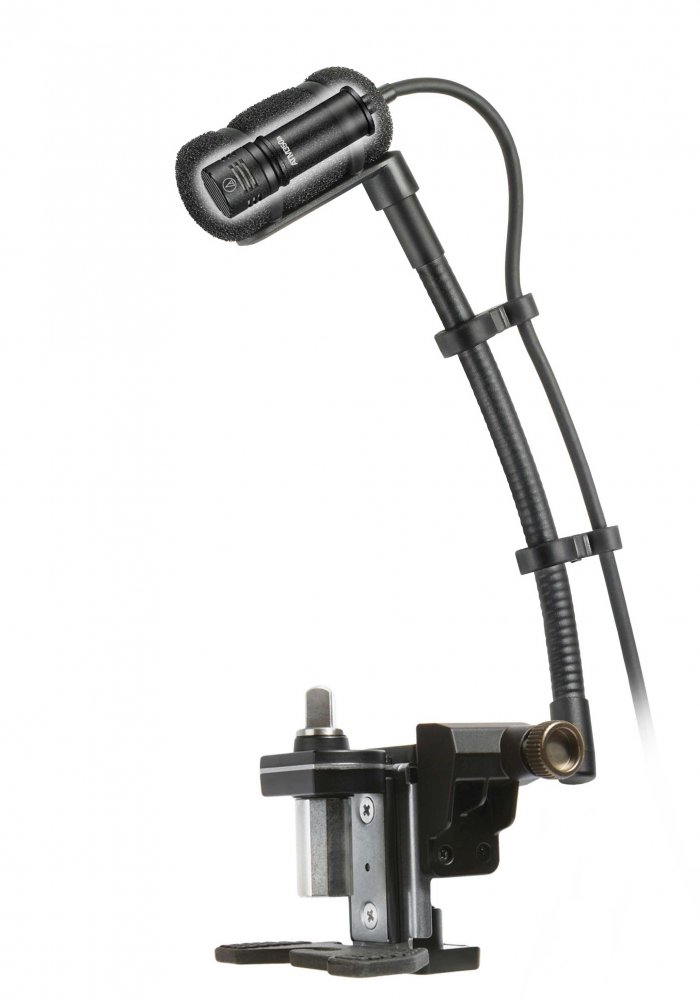

The system features the ATM350a cardioid condenser microphone, a high-SPL mic that provides a clear, well-balanced response from any instrument. When teamed with the included AT8491D drum mount and strong, flexible AT8490 5" gooseneck, the mic can be securely fastened to the drum and positioned to stay where you want it. The drum mount's unique spring-loaded mechanism clamps it tightly to a drum lug (without hindering your ability to adjust the lug) and provides excellent shock resistance for the mic; the gooseneck's rigidity ensures that it won't flop around no matter how aggressively you play.
The microphone's cardioid polar pattern isolates the instrument by reducing side and rear pickup, and the switchable 80 Hz high-pass filter on the in-line power module helps control undesired low-frequency noise. The system also includes an AT8468 violin mount with hook-and-loop fastener and a protective carrying case.
Low-profile mic design for minimum visibilityCrisp, clear, well-balanced microphone response, even at high SPLsCardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound sourceUniMount® drum mount with unique spring-loaded mechanism attaches securely to a drum lug, and provides excellent shock resistance for the microphoneRugged UniMount® 5" gooseneck rigidly holds its shape, keeping microphone accurately positioned even during aggressive playIn-line power module is equipped with a switchable 80 Hz high-pass filter to control undesired ambient noiseInterchangeable elements available for hypercardioid and omnidirectional polar patternsIncluded drum mount with hook-and-loop fastener provides an additional mounting option
ELEMENT: Fixed-charge back plate, permanently polarized condenser
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 40 - 20,000 Hz
LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY: -49 dB (3.5 mV) re 1V at 1 Pa
IMPEDANCE: 200 ohms
MAXIMUM INPUT SOUND LEVEL: 159 dB SPL, 1 kHz at 1% T.H.D.
DYNAMIC RANGE (typical): 130 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO: 65 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS: 11- 52V DC, 3.5 mA typical
SWITCH: Flat, roll-off
WEIGHT (MICROPHONE): 14.5 g (0.5 oz)
WEIGHT (POWER MODULE): 90 g (3.2 oz)
DIMENSIONS (MICROPHONE): 37.8 mm (1.49'') long, 12.2 mm (0.48'') maximum body diameter
DIMENSIONS (POWER MODULE): 92 mm (3.62") long, 18.9 mm (0.74") diameter
OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
CABLE: 4.0 m (13.1') long (permanently attached to microphone), 3.2 mm (0.13") diameter, 2-conductor shielded cable with HIROSE HR10-type connector
OPTIONAL INTERCHANGEABLE ELEMENTS: UE-H hypercardioid (100°), UE-O omnidirectional (360°)

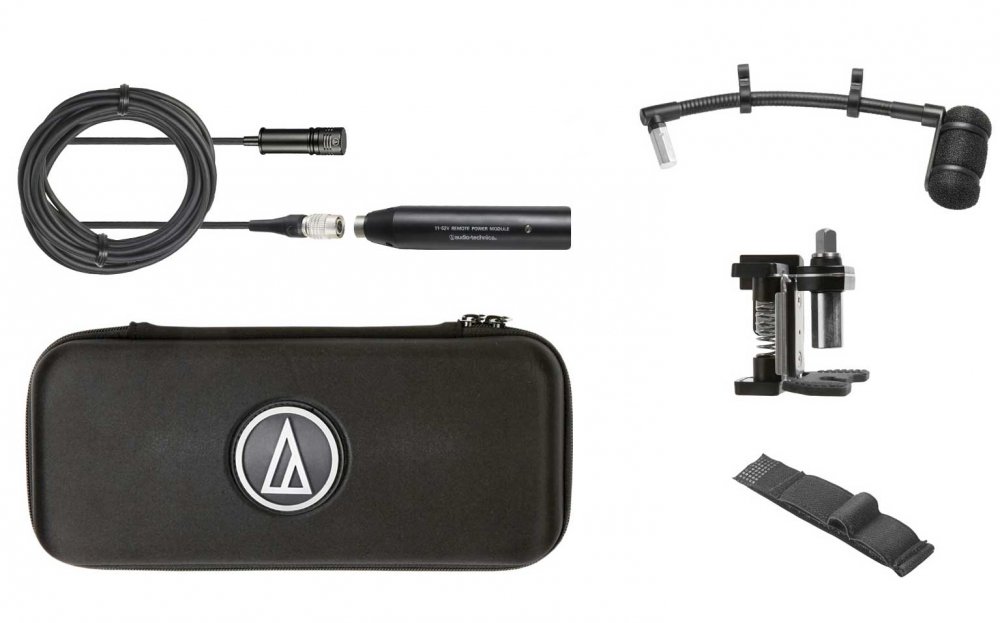

ACCESSORIES FURNISHED: ATM350a cardioid condenser microphone; AT8543 power module; AT8491D UniMount® drum mount; AT8490 UniMount® 5" gooseneck; AT8468 violin mount (hook-and-loop fastener); protective carrying case
AUDIO-TECHNICA CASE STYLE: M36
