Audio Technica BP3600
MPN #BP3600
Immersive audio microphone

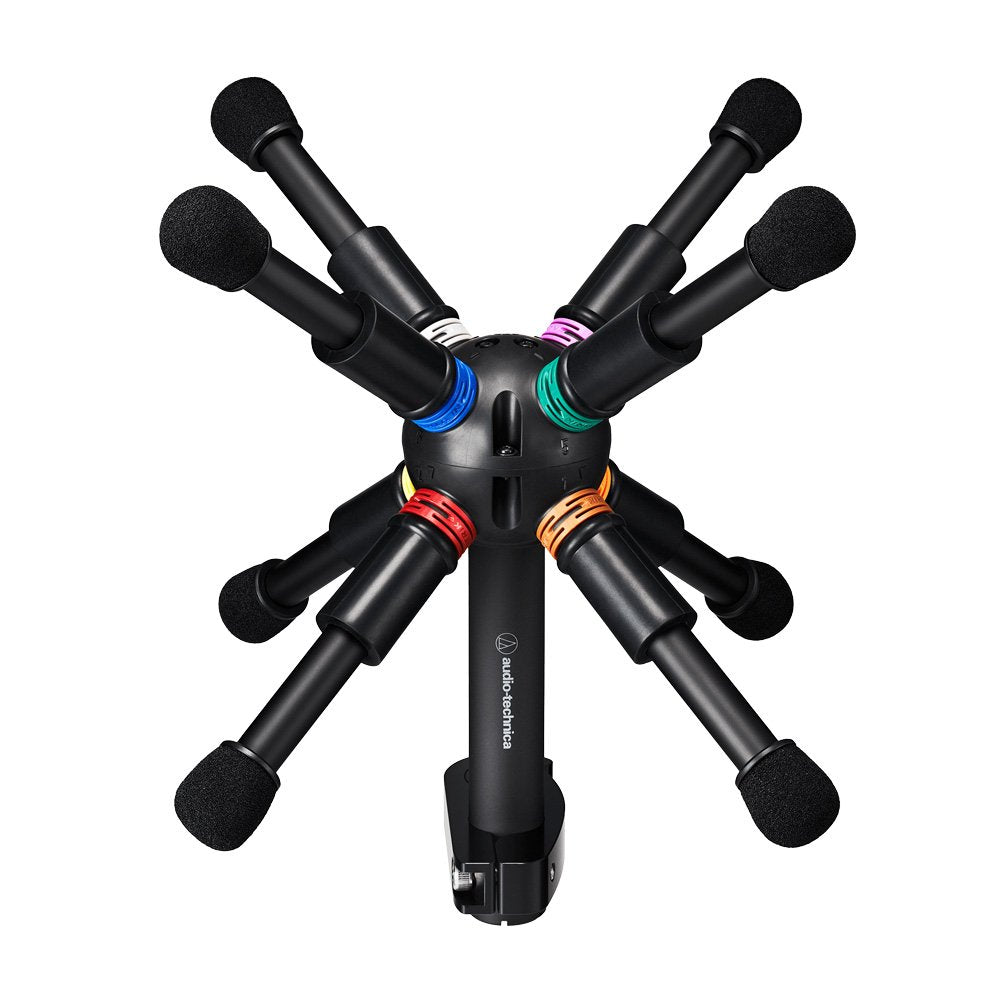

Capture stable, three-dimensional sound beds at sporting events, movie sets, concerts, festivals and more with the BP3600 immersive audio microphone. This practical, state-of-the-art broadcast solution allows you to establish a truly immersive audio image that can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing. The BP3600 consists of eight 3.5" (8.8 cm) long microphone assemblies that extend to form a cube, the capsules equidistant from the center and separated from one another by 15 cm. This eight-channel near-coincident array provides ample spaciousness and controlled separation not found in other all-in-one immersive audio microphones.
Features
The BP3600 immersive audio microphone is a practical, state-of-the-art broadcast solution for capturing ambient sound beds at sporting events, movie sets, concerts, festivals and moreCaptured audio image can be integrated easily as an audio channel bed into immersive audio codecs like MPEG-H 3D Audio without further processing8 microphone assemblies attach and detach quickly from the main unit for easy setup and teardown12 mm hypercardioid capsules keep the microphone small for discreet placement, while providing low diffuse-field correlation between signalsColor-coded and numbered rings provide easy channel reference for each of the eight microphonesWater protection caps guard TA3F microphone connectors against inclement weatherA safety ring provides additional security when suspending the microphone above spectators in grandstands, stadiums or auditoriums16-pin LEMO output connector is situated at the end of the microphone?s grip for easy attachment of the included breakout cable or extension cables (available separately)Requires 48V DC phantom power per channel
Specifications
Microphones
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Hypercardioid
Frequency Response: 40 - 20,000 Hz
Open Circuit Sensitivity: -41 dB (8.9 mV) (0 dB=1 V/Pa, 1 kHz)
Impedance: 70 ohms
Includes

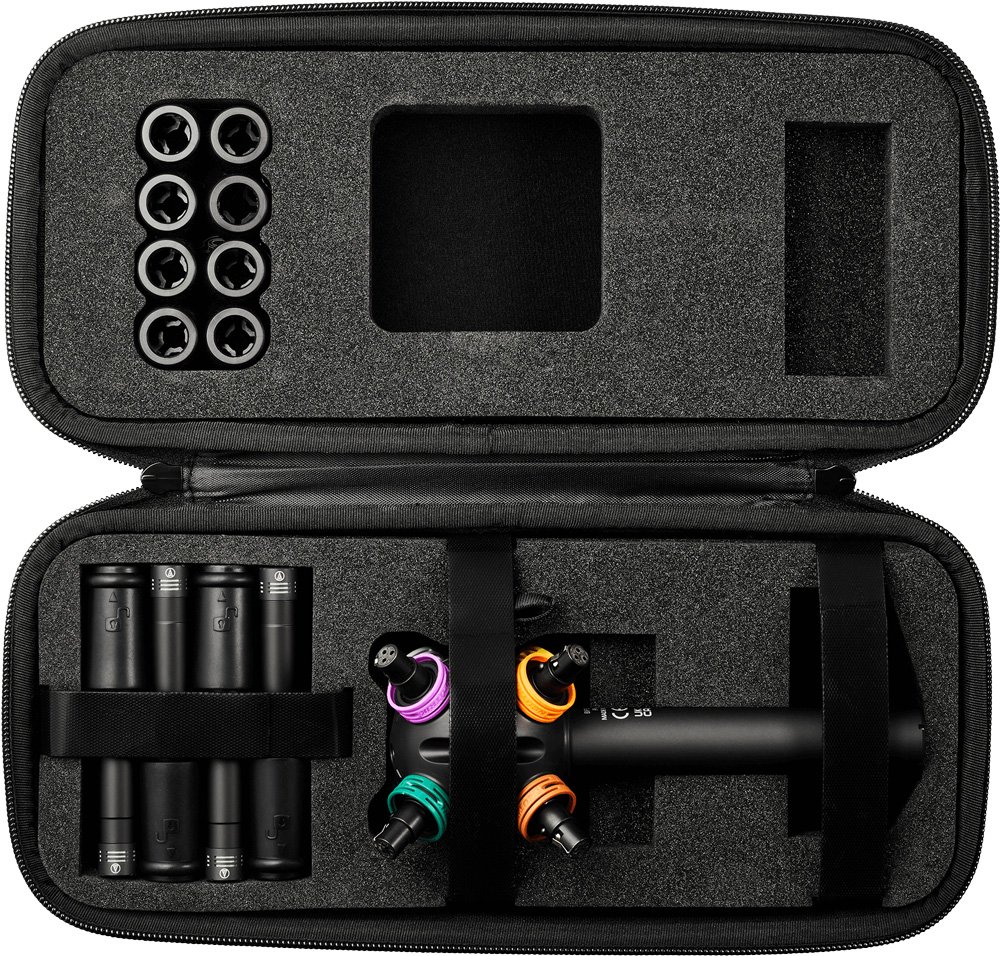

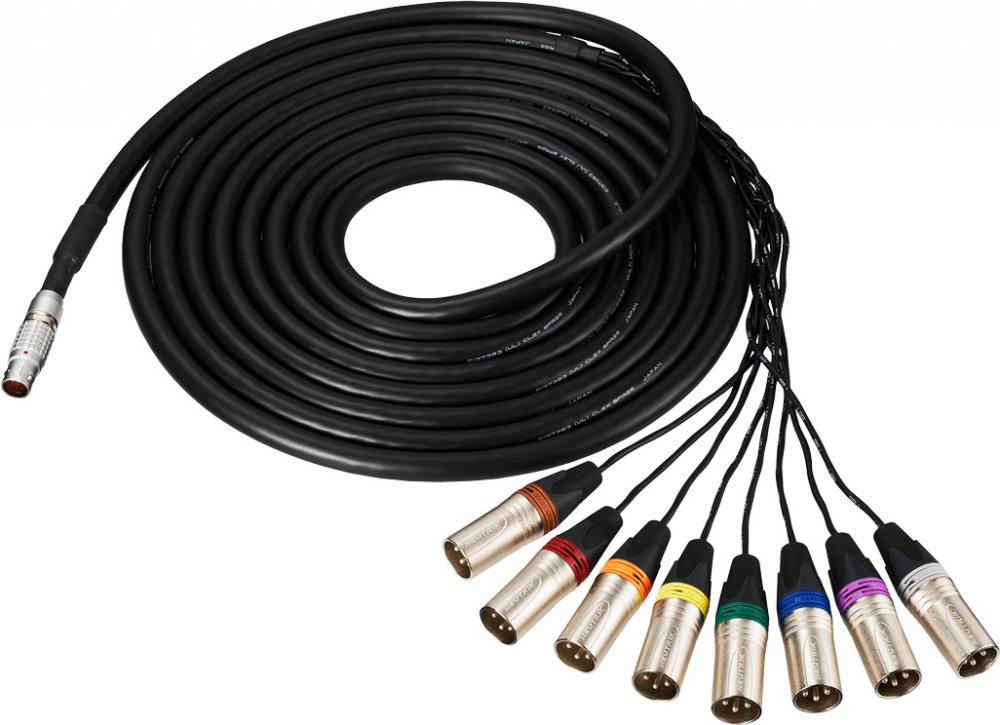

AT8116 windscreen (x 8), mic isolation stand clamp, 5/8"-27 to 3/8"-16 threaded adapter, 5 m (16.4') LEMO-to-XLRM (x 8) breakout cable, soft carrying case
Optional accessories
Rycote BBG Windshields, Rycote BBG Windjammers, and 20 m (16.4' and 65.6') LEMO-to-LEMO extension cables " are available separately
