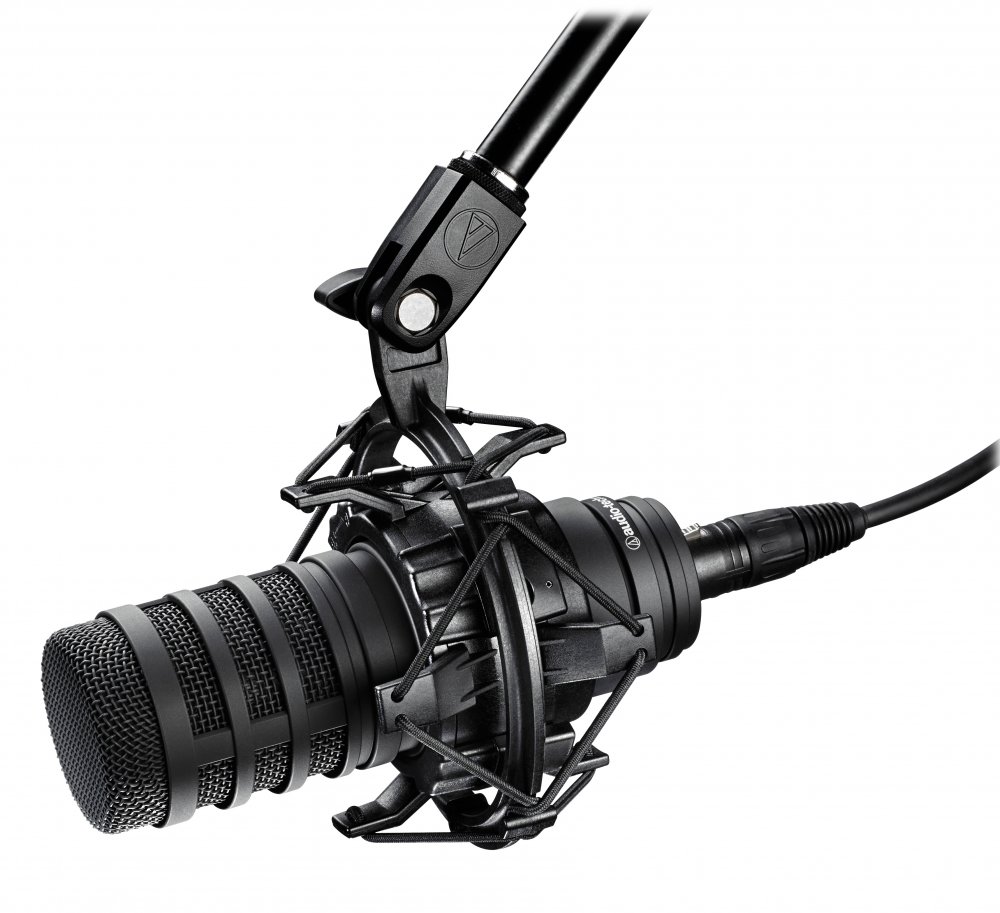

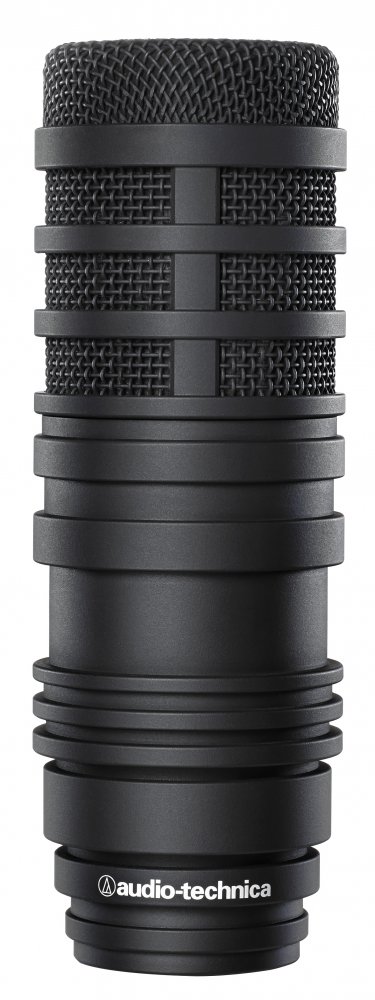

The BP40 broadcast vocal microphone offers a rich, natural, condenser-like sound from a large-diaphragm dynamic design
The large diaphragm features patented floating-edge construction that maximizes diaphragm surface area and optimizes overall diaphragm performance, while the humbucking voice coil prevents electromagnetic interference (EMI).
With rugged construction and stylish, waveform-inspired design, the BP40 delivers clear and articulate reproduction, ideal for any broadcast application. Optimized capsule placement helps maintain a commanding vocal presence even at a distance, while the multistage windscreen provides superior internal pop filtering. The BP40 broadcast microphone also includes a switchable 100 Hz high-pass filter to provide even more pop protection.
Features
Rich, natural, condenser-like soundLarge diameter diaphragm with patented floating-edge construction for optimal diaphragm performanceHumbucking coil prevents electromagnetic interference (EMI)Hypercardioid polar pattern improves isolationSwitchable 100 Hz high-pass filterSuperior off-axis rejection for maximum gain before feedbackOptimized capsule placement for commanding vocal presence even at a distanceMultistage windscreen provides superior internal pop filteringRugged, all-metal construction for dependable use in professional broadcast environments
Specifications
ELEMENT: Dynamic
POLAR PATTERN: Hypercardioid
FREQUENCY RESPONSE: 50-16,000 Hz
OPEN CIRCUIT SENSITIVITY: -48 dB (3.9 mV) re 1V at 1 Pa
IMPEDANCE: 450 ohms
SWITCHES: Flat, roll-off
WEIGHT: 632 g (22.3 oz)
DIMENSIONS: 164.0 mm (6.45") long, 56.0 mm (2.20") diameter
OUTPUT CONNECTOR: Integral 3-pin XLRM-type
ACCESSORIES FURNISHED: AT8483 mounting clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; soft protective pouch
OPTIONAL ACCESSORY: AT8484 shock mount for 5/8"-27 threaded stands
AUDIO-TECHNICA CASE STYLE: R12
GTIN (UPC/EAN) : 4961310130473
Manufacturer Part Number : BP40
