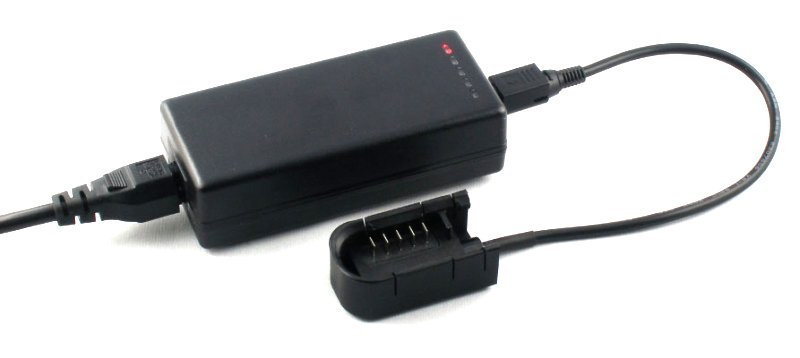

The eLC-SMB is a low cost, portable Li-Ion charger for our eSMART Li-XXwh lithium battery range

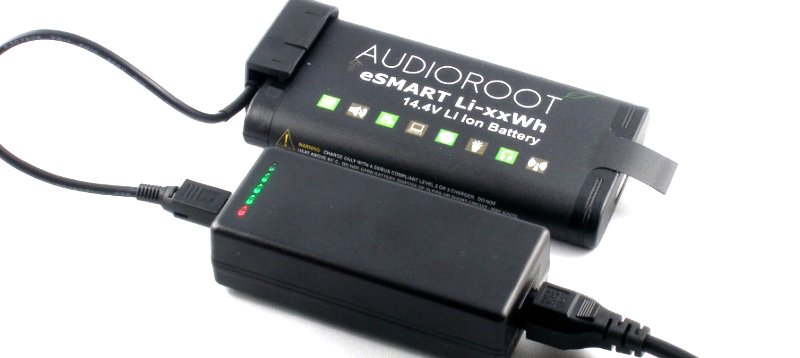

The eLC-SMB is a fast, reliable and secure charger for li-ion smart batteries. It charges a 49 or 98 Wh battery in 3 hours. Thanks to it's lightweight and compact design the eLC-SMB can be carried on anywhere in a backpack or directly in the sound bag.
The charger is 100% SMBus 1.1 compliant. Charging current and voltage are automatically programmed by the battery itself each time it is connected to the charger. The charging process is monitored in real time using parameters such as charging current, battery voltage and temperature. A 5 led bar-graph indicates the charging progress. The charger also features a battery wake-up function for fully depleted batteries.
Dimensions: 128 x 51.5 x 33 mm
Weight: 200 g
Input Voltage: AC 100~240 V
Maximum Output power: 40 W
Standby power consumption: <1 W
Laptop battery charge output voltage: 7.2~14.8 V
Output current: 2.5 A MAX
Replaces the eLC-AMP which is discontinued
Manufacturer Part Number : AR eLC-SMB
