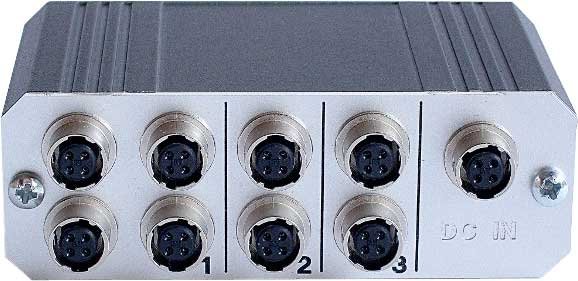

The eSMART BG-DU-REG is a compact and lightweight powering box with 8 protected outputs, 3 locking switches, a full featured fuel gauge and power regulators.
This product was designed for use in large sound bags or small location carts. The power distributor can be connected to any battery type (SLA, NI-MH or LI-ION) and the fuel gauge provides all the informations required to monitor the battery's state of charge (voltage, current, power, etc...).

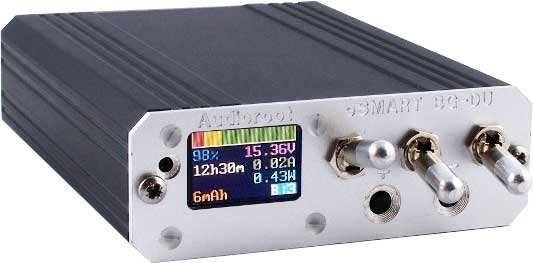

The eSMART BG-DU-REG uses an internal coulomb counter and a calibration routine to measure the battery's true capacity and display it's remaining capacity in real time. This power distributor is also fully compatible with our full line of Li-XXwh smart batteries.
Real time monitoring of the batterie's SOC : remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter8 switchable outputs using 3 locking switchesPolyswitch 2.5A resetable fuses on each outputA blinking LED indicates when the battery capacity falls below 10 %Compatible with any battery ranging from 11 to 18VHirose locking connectorsConnecteurs de sorties Hirose 4Compact and lightweight : (300g , 85x120x30mm)2 x fully isolated 12V/12W outputs on 2 Hirose connectors - these outputs can help resolving ground loops issues1 x 9V/18W output on 2 Hirose connectors - these outputs can be used to power wireless receivers and transmitters
Important note : A 4 conductor battery input cable is required for eSMART operation (i.e when connecting eSMART batteries to the BG-DU-REG). This cable is sold separately under reference eHRS4-OUT-4W. The 2 conductor Hirose battery output cable available under reference eHRS4-OUT will not enable battery data communications between the eSMART batteries and the BG-DU-REG. Please contact us or your dealer for more informations.
Note to Hawk-Woods products users : The wiring of Hawk-Woods products is incompatible with the BG-DU or BG-DU-REG out of box. On these products the internal pins of the Hirose male plugs are tied together 2 by 2 : pins 1 and 2 / pins 3 and 4. When using the BG-DU or BG-DU-REG pins 2 and 3 of the male Hirose plug connected to the unit's input must be left unconnected as these are used for communication with smart batteries. Hawk-Woods users can solve this issue by rewiring the male Hirose plug (leaving pins 2 and 3 un-connected) or by removing 2 solder jumpers inside the BG-DU or BG-DU-REG. Please contact us for more details.
Max battery capacity : The BG-DU-REG can handle standard (non smbus) batteries from other manufacturers up to 40Ah. A special version capable of handling batteries up to 200Ah can be delivered upon request.
Manufacturer Part Number : eSMART BG-DU-REG
