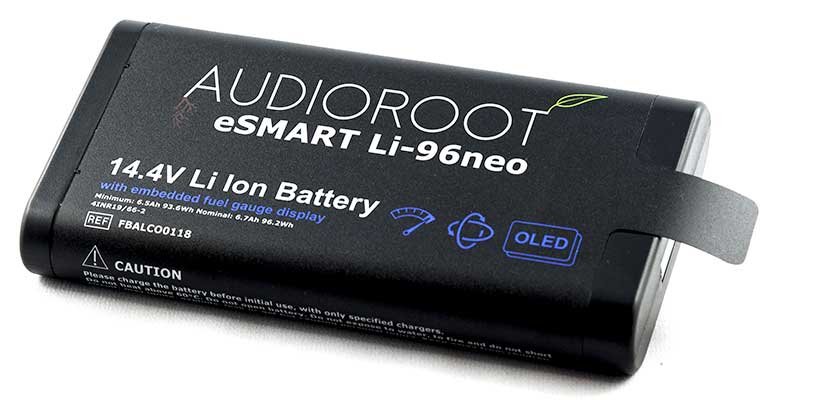

14.4V 96Wh smart lithium battery with embedded OLED display
This all new model has a built-in OLED display which allows real time display of the battery's state of charge information. This helps users get precise information about a battery's voltage, current draw, run time, etc... when connected to any type of equipment. This is very useful when connecting the battery to a piece of equipment or DC current distributor which is not SMBUS enabled.

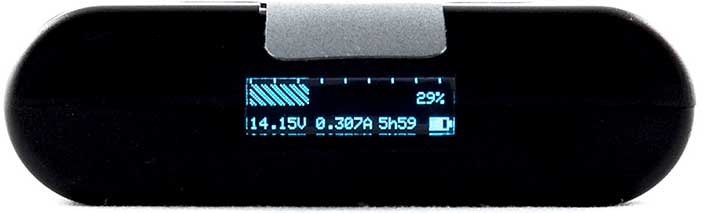

Operation of the embedded OLED display is fully automatic. When the battery is disconnected the OLED can be activated by shaking the battery allowing to check battery capacity, cycle count and pack temperature. When powering a device from the battery the OLED display turns on and displays real time state of charge information. Once the device is shut down or disconnected from the pack the OLED display shuts off.
When the battery is connected to a fully compatible SMBUS device the OLED will stay to save power and keep the SMBUS lines free.
High energy density rechargeable li-ion batterySMBUS compatible Impedance Track fuel gaugeEmbedded OLED displayIndustry standard 5 pin connector
At T= 25°C, RH=65% +/-20% (unless otherwise specified)
Technology : Lithium-ionNominal voltage: 14.4VTypical capacity: 6700mAhMinimum capacity: 6200mAhOperating voltage: : From 10V to 16.8VStandard charging method: Constant current, constant voltage (CC/CV) 3.25A until 16.8VStandard discharging method: Constant current (CC) 1.3A until 10VMax charge current: 5.75AMax continuous discharge current: 11.75AMax charge voltage: 16.8VOperation temperature:Charge: 10~45°CDischarge: -20~60°CStorage temperature: - 1 month: -20~50°C
- 3 months: -20~40°C
- 1 year: -20~20°C
Weight: 450gDimensions: 150.4 x 77.20 x 22.60 mmCell certification: UN 38.3 / IEC 62133Battery pack certification: UN 38.3 / EMC / FCC / CB IEC62133 / RoHS / REACHCycle life : The battery will remain at least 70% of its initial capacity after 500 cycles, where-else the battery is used in standard charging and discharging method, including 30 minutes rest after each charge and discharge.OLED display information: - Battery pack remaining capacity (%)
- Battery pack voltage (V)
- Battery pack current draw (A)
- Battery pack remaining time at rate (HH:MM)
- Battery pack cycle count
- Battery pack temperature (°C)
- Battery pack status (charging or discharging)
Manufacturer Part Number : eSMART Li-96neo
September 9, 2019
Audioroot eSMART Li-96neo
Does not charge reliably in Aaton smart battery charger, although all Inspired Energy manufactured smart batteries do. Better in Audioroot charger. Capacity seems similar to original smart batteries.
Maybe the pin alignment is a tiny bit off on these Read more
Chinese manufactured batteries...
