MPN #eTA4F/4W-HRS4-OUT

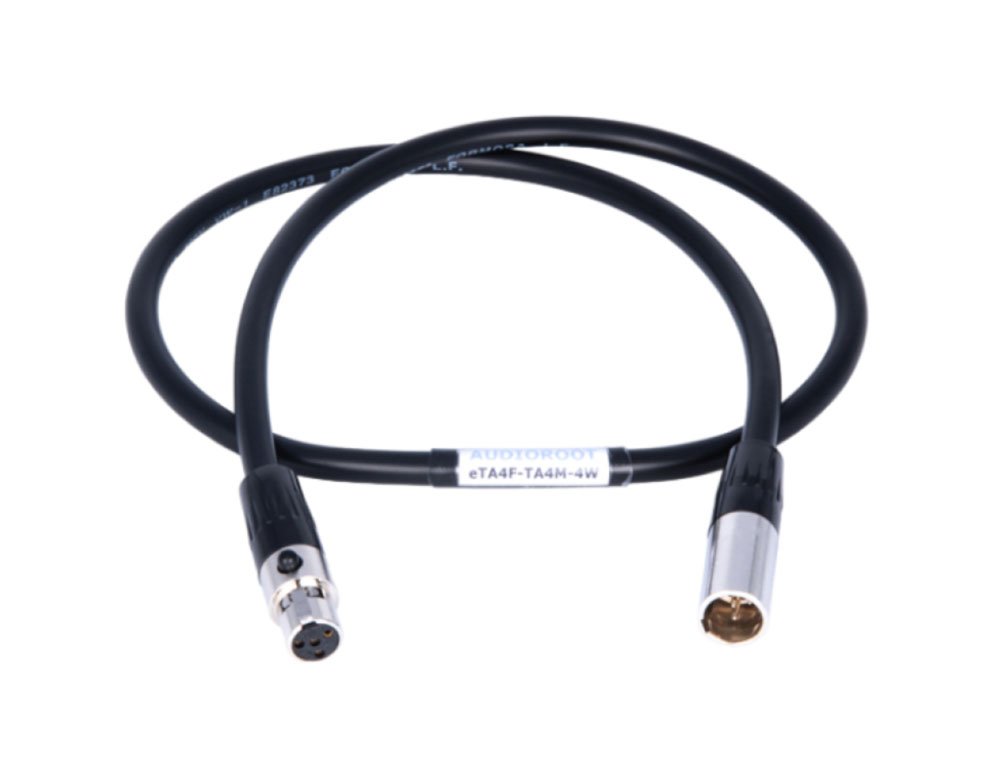

Audioroot eTA4F/TA4M-4W
Free shipping in Canada for orders over $200

4 conductors TA4M to TA4F power + battery telemetry output cable



This cable can be used to connect a SD8xx series recorder to the TA4F output of the eSMART TRIO

TA4F/TA4M pinout:
BATT (-)
SMBus data
SMBus clock
BATT(+)
  • 60 cm long cable (other lenghts on request)
  • TA4M connector on one end
  • TA4F connector on the other end
  • 2C/26AWG (GREEN/WHITE) + 2C/18AWG (BLACK/RED) 4 conductor cable (PVC insulation and jacket)
