UPC/EAN #3760013430634     MPN #vmDBOX-HRS-cc


Free shipping in Canada. Conditions

Power distributor for sound bag with built-in OLED volt/amp/Ah meter

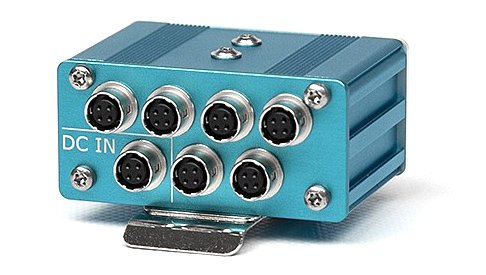

The Audioroot vmDBOX-HRS-cc is an ultra-small, DC power distribution box with 6 DC outputs and an integrated multi function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.

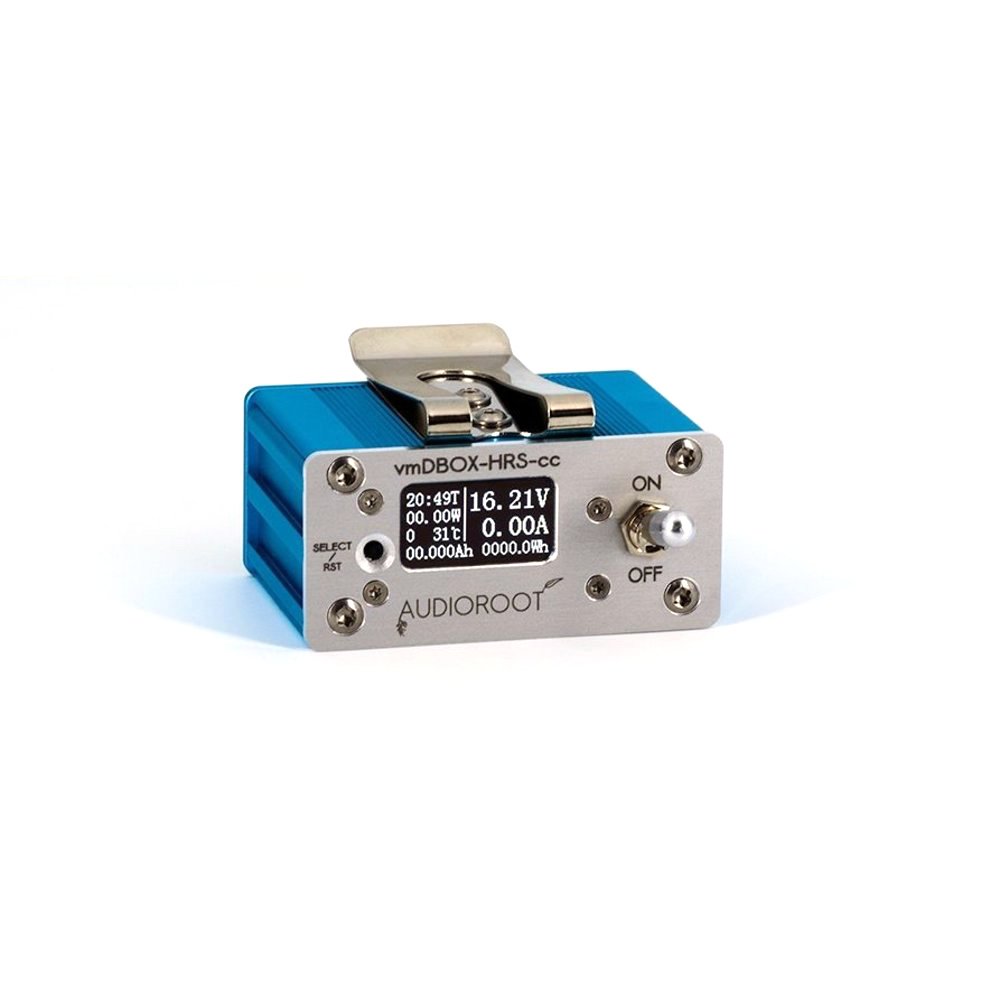

  • Integrated white OLED display with voltmeter, ampmeter, Ahmeter, wattmeter and timer for battery or power supply monitoring
  • 6 power outputs switchable with one rugged locking switch
  • 5 x outputs with 2.5A polyswitch resetable fuses
  • 1 x unprotected output
  • 1 x belt clip mountable on top or bottom of the housing
  • Compatible with any battery or power supply ranging from 5.0V to 24V DC
  • Hirose locking connectors
  • Very low power consumption : the vmDBOX-HRS-cc does not affect the battery?s autonomy
  • Compact and lightweight : 119g / 65 x 50 x 30 mm
  • Maximum recommended total current load : 7A
