Austrian Audio OC707
Handheld condenser microphone with OCC7 capsule, cardioid polar pattern and switchable low cut filter
Studio-quality sound for the stage
The handheld OC707 True Condenser Vocal Microphone brings professional sound quality to both studio and stage. Capturing every nuance of your performance, the audience will delightfully experience the pristine sound of your voice.
Designed to capture the dynamics and subtleties of the human voice, the OC707 blocks out unwanted noise from the outset, while giving your voice a great depth of volume. The OC707 lets the vocal cut through the mix, clear, detailed and natural.
Austrian Audio?s proprietary Open Acoustics Technology allows sound to enter the capsule almost entirely unimpeded from all sides. Contact points between the mounted capsule and the enclosure are reduced to a minimum. Furthermore, the reduction of sound-reflecting surfaces in proximity to the capsule ensures that the signal source is reproduced as resonance-free as possible; advanced materials technology and sophisticated mechanics reduce unwanted vibrations. Care was also taken to achieve maximum suppression of feedback.
Austrian Audio has succeeded in creating a vocal handheld microphone that has all the important characteristics of a studio microphone yet can withstand the rigours of everyday stage use.
Making Passion Heard

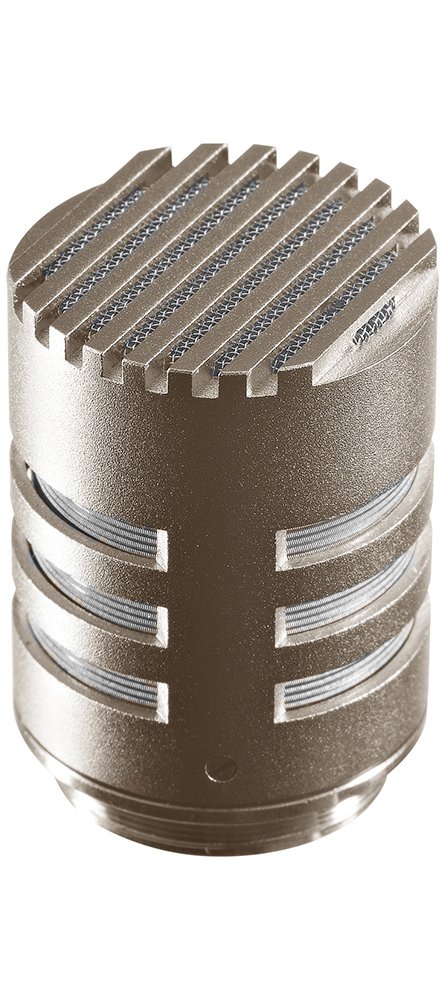

The OCC7 condenser capsule was developed in Vienna and is the heart of Austrian Audio?s small diaphragm microphone series. Inspired by the legendary CK1, the newly developed capsule takes on the heritage with the benefits of the classic and the demands of today. Shaped by the past, built for the future.
The OCC7 small-diaphragm capsule with true condenser technology, developed and built in Vienna, is the heart of the microphone. The capsule?s three micron thick gold-coated polyethylene naphthalate (pen) diaphragm is much more robust than conventional Mylar alternatives.
The OCC7 has an impressive linear frequency response. The capsule can withstand extremely high sound pressure levels. Combined with very low self-noise, this results in an impressive dynamic range. It always sounds natural and open, and even at extreme volumes it is neither harsh nor sharp. The mids and highs are always silky smooth and are not overemphasised.
Each capsule is hand-built in Vienna and measured and tuned in the in-house anechoic chamber.
Handmade OCC7 condenser capsuleCardioidSwitchable Low cut filterRugged die-cast body
Directional characteristic: Cardioid
Frequency range: 70 Hz " 20 kHz
Sensitivity: 10 mV/Pa
Equivalent noise level: 19 dB SPL (A)
Max SPL: 150 dB SPL
Low cut filter: 120 Hz (2nd order)
Impedance: 275 ? (symmetrical)
Load impedance: > 1 k?
Supply voltage: 48 V (< 2.2 mA)
Main Connector: XLR 3 pin
Dimensions: 194 x 53 x 53 mm
