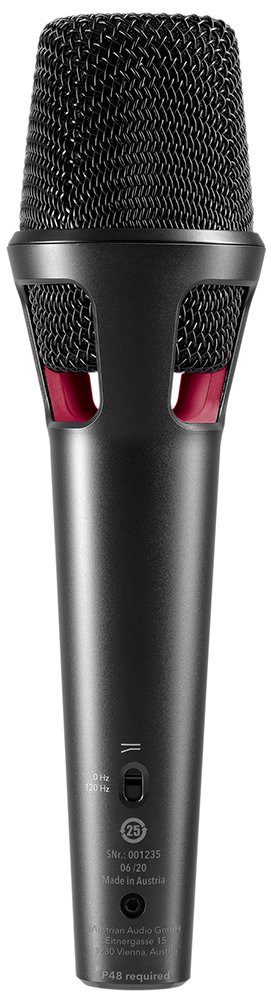

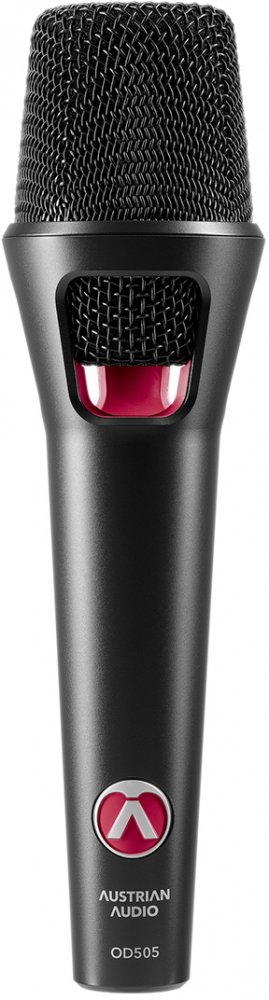

Austrian Audio OD505
Handheld dynamic microphone with supercardioid polar pattern, 3D pop noise diffuser, and switchable highpass filter
The best of two worlds.
The OD505 Active Dynamic Vocal Microphone is designed primarily for the stage, though it is also a very capable microphone for studio application. Uncompromisingly robust, it combines all the advantages of a dynamic microphone with the tonal finesse of a condenser microphone.
The OD505 is the perfect choice for singers, podcasters and radio broadcasters. Its amazingly natural sound makes it very easy to shape and highlight a vocalist?s strengths.
Featuring Austrian Audio?s proprietary Open Acoustics Technology, the OD505 delivers a pristine, natural and resonance-free sound without any colouring.
The heart of the OD505
ODC50-SC active dynamic capsule
Making Passion Heard
The active front capsule requires 48V phantom power and, at 4.4 mV / Pa, has almost the same sensitivity as a condenser microphone. With its active circuitry, the OD505?s sound is always consistent, regardless of the internal resistance of the microphone preamplifier or length of connecting cables. The passive lower capsule is polarity-rotated, it senses and eliminates unwanted handling noise.
This state-of-the-art dual capsule design, together with the selectable 2nd order high-pass filter makes the OD505 practically immune to noise such as handling noises, bumps and stage knocks.
The OD505 also includes another Austrian Audio proprietary development: The 3D Pop Noise Diffuser. This filter is specially designed for the OD505 and effectively reduces the impact of plosives.
ODC50 active dynamic capsule3D Pop Noise DiffusorRugged die-cast bodySwitchable Low cut filterSupercardioid
Directional characteristic: Supercardioid
Frequency range: 35 Hz " 16 kHz
Sensitivity: 4.4 mV/Pa
Max. SPL: 154 dB SPL
Low cut filter: 120 Hz (2nd order)
Impedance: 275 ? (symmetrical)
Load impedance: > 1 k?
Supply voltage: 48 V (< 1 mA)
Main Connector: XLR 3 pin
Dimensions: 194 x 53x 53 mm
