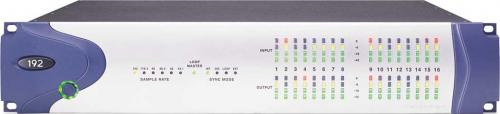

192 I/O, the flagship of the Pro Tools|HD interface family, is the best-sounding audio interface ever offered from Digidesign, rivaling similar products costing more than twice its price. In addition to support for up to 16 channels of analog and digital input and output, 192 I/O features a wide range of analog and digital I/O options to choose from, including 8 channels of high-definition, pristine-quality analog I/O, 8 channels of AES/EBU, 8 channels of TDIF, 16 channels of ADAT, and 2 additional channels of AES/EBU or S/PDIF digital I/O.
192 expansion cards
Along with its outstanding sonic specs, 192 I/O includes an additional I/O option bay, allowing you to add more inputs or outputs, and making it one of the most unique and flexible audio interfaces on the market. To expand the analog I/O capacity of 192 I/O, you can add either a 192 AD card, providing 8 more channels of high-definition analog input, or the 192 DA card, which gives you 8 additional channels of analog output. 192 I/O can also be outfitted with the 192 Digital card, which adds 8 channels of AES/EBU, TDIF, and ADAT I/O connections.
Features
In designing the Pro Tools|HD environment, we didn't just stop at supporting up to 96 kHz sample rates &minus we decided to go all the way and support up to an astonishing 192 kHz. As the flagship audio interface for Pro Tools|HD, 192 I/O supports 192, 176.4, 96, 88.2, 48, and 44.1 kHz sample rates.
With 192 I/O, you're prepared for both working with the latest standards in the world of professional audio production as well as for the emergence of future standards. The new, higher sample rates and 24-bit resolution you get with 192 I/O mean you're able to capture every nuance of sound with the utmost clarity and precision.
¤ 50 possible inputs and outputs
¤ Supports up to 16 simultaneous channels of high-definition I/O
¤ Extremely flexible analog and digital I/O
¤ Card option bay for analog or digital I/O expansion with 192 AD, 192 DA, or 192 Digital cards
¤ World-class 24-bit/192 kHz A/D and D/A conversion
¤ Comes with a wide range of digital I/O, including 8 channels of AES/EBU I/O, 8 channels of TDIF I/O, 16 channels of ADAT I/O, and 2 additional channels of AES/EBU or S/PDIF I/O
¤ Word (1x) and Slave Clock (256x) input/output
¤ Switchable, real-time sample rate conversion on digital inputs on the 192 Digital card, which allows easy streaming of digital signals at any sample rate
¤ Soft-Clip Limiter that allows higher levels to disk for punchier, hotter recordings
¤ Expansion Port that allows for direct connection of another 192 I/O or 96 I/O
¤ Legacy Peripheral port that allows for connection of 888|24, 882|20, 1622, or 24-Bit ADAT Bridge I/Os*
* At 48 kHz or lower sample rate
Specifications
Dimensions
¤ Width: 19 in / 48.26 cm
¤ Height 3.5 in / 8.89 cm
¤ Depth: 15.19 in / 38.58 cm
¤ Weight: 20.17 lbs / 9.15 kg
A/D
¤ Sample Rate: 44.1, 48, 88.2, 96, 176.4, 192 kHz ±10%
¤ Dynamic Range: 120 dB (A-weighted), 118 dB (unweighted); see Notes 1 and 2
¤ THD N: 0.00035% (-109 dB); 21 dBu @ 997 Hz; see Note 1
¤ THD N: 0.00035% (-109 dB); 21 dBu, 20 Hz — 20 kHz; see Note 1
¤ Frequency Response: ±0.05 dB @ 2 dBu, 20 Hz — 20 kHz; see Notes 1 and 3
D/A
¤ Sample Rate: 44.1, 48, 88.2, 96, 176.4, 192 kHz ±10%
¤ Dynamic Range: 118 dB (A-weighted), 115 dB (unweighted); see Notes 1 and 4
¤ THD N: 0.00056% (-105 dB); -1 ' @ 997 Hz; see Note 1
¤ Frequency Response: ±0.05 dB, -20 ', 20 Hz — 20 kHz; see Notes 1 and 3
¤ Sample Rate = 48 kHz, Noise BW = 22 Hz — 20 kHz unless otherwise noted, Tambient = 25 C
Note 1: Measurement made using 4 dBu inputs or outputs
Note 2: ADC measured with analog input at -38 dBu @ 997 Hz
Note 3: Measured relative to level at 1 kHz
Note 4: Measured with digital input at -60 dBFS @ 997 Hz
