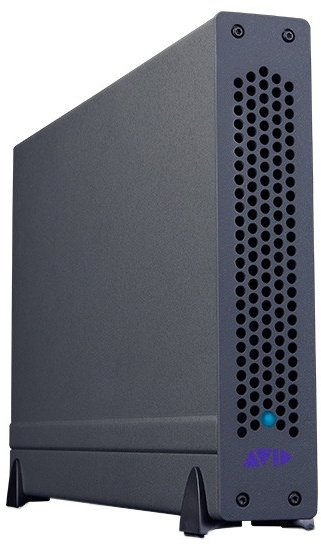

The 1U rack-mountable chassis can house a single HDX PCIe card and Mac mini, providing portability and easy connection to the latest high-performance computers
Or get a ready-to-go HDX system in one easy bundle.
Connect HDX through Thunderbolt 3
Integrate Pro Tools | HDX with Thunderbolt 3-equipped Mac and Windows-based computers-including laptops-with a high-performance, ultra-quiet chassis. Take advantage of the greater processing power today's machines offer, enabling you to work with more AAX Native plugins on top of AAX DSP.
Take HDX on the go
The rackmount chassis can securely house a Mac mini and HDX card, enabling you to configure a powerful yet portable self-contained system. Plus, it can be converted from rackmount system to desktop, and vice-versa, making it easy to move HDX from home studio to facility, and from live rig to hotel room.
Work and travel with peace of mind
In partnership with Sonnet, the chassis is robustly built with rugged aluminum and steel housing to protect your inside investments during transport and in any environment. It's custom-designed for the size, power, and heat requirements of HDX, providing the guaranteed performance HDX reliably delivers.
Get everything in one easy bundle
Save money and set-up time with a preconfigured Pro Tools | HDX Thunderbolt 3 System Bundle that's ready to go. Each system includes your choice of desktop or rackmount chassis, one HDX card, Pro Tools | Ultimate software, and your choice of Pro Tools hardware I/O interface.
Form factor: Available as a desktop or rackmount chassis; desktop and rackmount conversion accessories also available as options
PCIe connectivity: One expansion slot for a Pro Tools | HDX PCIe card (sold separately)
Thunderbolt connectivity: Two Thunderbolt 3 ports-one for computer connection and one for daisy-chaining up to five additional Thunderbolt/USB devices
USB connectivity: One USB 3.0 port on the front panel of the rackmount chassis
Mac mini enclosure: Internal enclosure to secure optional Mac mini with Thunderbolt 3 ports (rackmount chassis only)
Bandwidth: Thunderbolt interface: 40 Gbit/s, PCIe interface: 2,750 MB/s
Power supply: 96W
Operating temperature: 32º-95º F (0º-35º C)
Dimensions (H x W x D):
Desktop chassis (with feet): 9.4 x 2.2 x 14.5 inches (238 x 57 x 368 mm)
Rackmount chassis (with rack ears and rails): 1.7 x 19 x 17.3 inches (44 x 482 x 439 mm)
Manufacturer Part Number : 9900-74108-00
