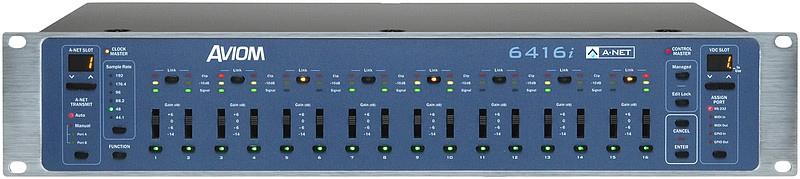

The Aviom 6416i Input Module provides 16 balanced line-level analog inputs to a Pro64 system. The 6416i is ideally suited as an input path for FOH returns in a digital snake.
Each channel includes a four-position gain switch and three-segment level metering, and adjacent channels can be linked as a stereo pair. Audio thru connections are provided via DB25 multipin connectors on the rear panel.
Each 6416i can be configured to operate within a specified channel/slot range within the Pro64 network, making complex installations easy to configure and manage. Each input channel of a 6416i can be made active and inserted into the network as needed.
The Pro64 A-Net network supports three ranges of variable sample rates: 44.1/48kHz±, 96kHz±, and 192kHz±. No matter the sample rate, all 16 input channels on the 6416i are available for use. All audio is streamed at 24-bit resolution with no data compression at any time.
In addition to its audio capabilities, the 6416i also includes the innovative Virtual Data Cables for simultaneously distributing up to 14 channels of non-audio control data such as MIDI, RS-232, and GPIO to any device on the Pro64 network. Every Pro64 I/O module comes with its own set of VDC ports that can be individually configured.
The 6416i is ideally suited as an input path for FOH returns in a digital snake, inputs into a Pro16 Monitor Mixing System (ASI module required), or line-level inputs in even the most complex audio distribution network.
16 balanced line-level analog inputs (XLR)
16 balanced line-level analog thrus (DB25)
Four gain settings per channel
Virtual Data Cable connectivity for GPIO, MIDI, and RS-232
Variable sample rates: 44.1kHz± to 192kHz±
24-bit A/D converters
Channels: 16 inputs/Line level XLR Inputs: Pin 1: Shield; Pin 2: Hot; Pin 3: Cold Audio Thru; Alt. In: DB25 multipin, x2; audio pinout Input Impedance: 3k ohms Input Gain Range: +6, 0, -6, -14 (dB); 4-position switch Max. Input Level: +18dBu Sample Rates: 1x: 39.7-52kHz; 2x: 79.4-104kHz; 4x: 158.8-208kHz at 24-bit resolution Frequency Response: -3dB: 2Hz and 23kHz, ±0.5dB: 3Hz22kHz (at 1x sample rate) THD +N: < .002% at -10dBFS Signal to Noise: A/D: -111dB (unweighted) Crosstalk: <100dB at 1kHz Latency: Analog input to analog output: <800µs A-Net: 2 EtherCon® RJ45 connectors A-Net Cable Length: 400 feet (120 meters) between devices Virtual Data Cables: MIDI In, MIDI Out; 5-pin DIN, RS-232, DB9 connector; DIP switch configuration, GPIO In (x4), Out (x4); terminal block connectors; DIP switch configuration; TTL or isolated Power Supply : 100-240VAC , 50-60Hz, 24W, Internal switching type; IEC connector Maximum Ambient Temperature : 50°C Dimensions: 2U; 19"w x 8"d x 3.5"h (482.6 x 203 x 88 mm) Weight: 9 pounds (4.1 kg)
