MPN #A640


Financing available
Free shipping in Canada. Conditions

Personal mixer for monitoring with 36-channel mix engine for up to 18 mono or stereo sources and Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance

Aviom's Personal Mixers are the worldwide industry-standard for personal mixing on stage and in the studio. The A640, Aviom's new flagship personal mixer, brings an unparalleled level of control, performance, and fidelity to personal mixing that exemplifies Aviom's core brand sensibilities.

With more mix channels, powerful features and an intuitive, streamlined user-interface, the A640 helps musicians hear better than ever before. It's compatible with all existing Aviom systems using Dante networking, digital console cards, or analog inputs, and can be used simultaneously with the A360, A320 and/or A-16II Personal Mixers.
  • Intuitive user interface featuring high-res color multi-mix-view display
  • Customizable channel selection from up to 64 network channels
  • 36-channel mix engine for up to 18 mono or stereo sources
  • Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance
  • One-Touch Ambience using network audio or the internal mic
  • Intercom for communicating with other A640 users
  • Favorite Channel holds each musician's most important channel
  • USB for easy archiving and loading custom mixer configurations

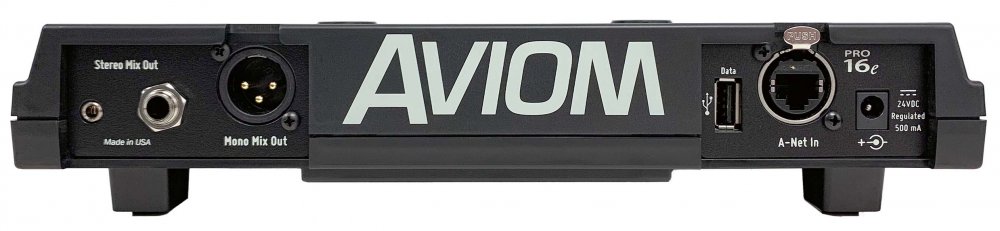

  • 1/4" and 1/8" stereo mix out plus XLR mono Aux mix out
  • Support for Network Mix Back (requires a D800)
  • Audio Output
    1/4" TRS stereo, headphone or line level;
    1/8" TRS stereo, headphone or line level;
    XLR balanced mono, line level

    Stereo Mix Outputs, Headphone/Line
    Tip: Audio Left; Ring: Audio Right; Sleeve: Ground

    Mono Mix Output
    Pin 2: Hot, Pin 3: Cold; Pin 1: Ground

    1 A-Net In, locking RJ45 connector;
    Supports Power Over A-Net

    D/A Conversion
    44.1/48kHz, 24-bit

    Stereo Operation
    Stereo Link, per mixer channel and A-Net channel pair
    Set at the input device;
    Variable pan per mono channel or pan/spread per stereo channel pair

    USB Storage
    Save/load mix configuration data and mixer presets;
    Firmware updates
    Requires USB compliant mass storage device, formatted for PC

    Headphone Output
    1.0 watt at 100 ohms
    (Line/Headphone output)

    Output Impedance
    32 ohms

    Frequency Response
    2-22kHz +0.2dB/-3dB

    < 0.003%

    Signal to Noise (unweighted)
    -106dB (measured with zero data into all channels)

    <0.680 msec (measured from analog input to analog output)
    A-Net Cables Use unshielded Cat-5e UTP (or better) cable;
    Maximum 400 ft (122 m) between devices;

    Power Supply
    Input Voltage
    Plug Size Optional
    24 VDC, 0.5 amp
    2 mm

    10.76 in. (273.3mm) wide x 7.6 in. (193.04mm) deep;
    2.212 in. (56.18mm) high

    2 lb (0.907 kg); packaged weight 3 lb. (1.36 kg)

    MT-1a Mic Stand Mount (uses 6-32 1/4-inch screws)
    EB-1 Extension Bracket
    PS-120/PS-240 Power Supply
