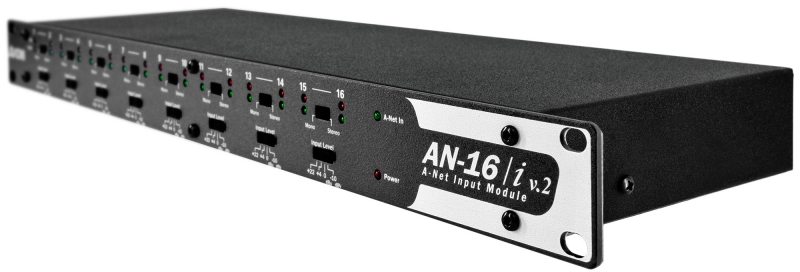

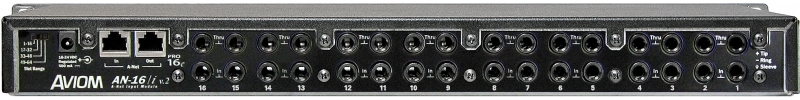

Aviom AN-16/i v.2

AN-16/i v.2 can connect up to 16 balanced line-level inputs from a console's direct outputs, insert points, aux sends, and/or submixes to a personal mixing system or digital snake

When used alone, one AN-16/i v.2 can generate a single 16-channel A-Net signal.

The A-Net In on the AN-16/i v.2 allows multiple Pro16 input devices (including console cards, AN-16/i-M, AV-M8, and the original AN-16/i) to be connected together to generate the higher channel count Pro16e™ version of A-Net used by the A360 Personal Mixer and A320 Personal Mixer.

Compatibility Note: The Pro16e A-Net output of the AN-16/i v.2 is not compatible with the original A-16 Personal Mixer, AV-P2 Output Module, AN-16/o v.3 Output Module, and AN-16/o v.4 Output Modules with serial numbers 51162 and lower.

Analog line-level audio connected to the TRS inputs on the AN-16/i v.2 is converted to digital and transmitted via the Pro16e version of A-Net® over Cat-5e cable to Personal Mixers or Pro16 output devices. Higher channel count A-Net streams can be generated by daisy chaining additional Pro16 Series input devices via the A-Net In jack on the AN-16/i v.2. The four-position slot range switch allows each AN-16/i v.2 in a system to be assigned to one of the four slot ranges supported by the Pro16e protocol, increasing the total audio sources available to the personal mixing system to 64.

Building Blocks for Personal Mixing Systems
The AN-16/i v.2 is typically placed near the front-of-house or monitor console to simplify patching when it is used as the head-end for a Pro16 personal mixing system. Audio from the console-any combination of channel inserts, direct outs, submixes, auxes, or groups-is connected to the TRS input channels on the AN-16/i v.2. A dedicated audio thru jack is available for each input channel, allowing the AN-16/i v.2 to be seamlessly inserted into an existing audio signal path.

When used with A360 and A320 Personal Mixers, the Pro16e protocol allows stereo inputs sources to be seamlessly integrated into a personal mixing system.Each odd/even pair of inputs on the AN-16/i v.2 is automatically assigned to a single channel button on the A360 when a stereo source is connected.

Note that the original A-16 Personal Mixer is not compatible with the AN-16/i v.2.
  • Sixteen balanced audio inputs (1/4-in TRS connectors)
  • Sixteen balanced Thru connectors (TRS)
  • A-Net In with four-position slot range selector switch
  • Stereo Link switches for each channel pair
  • Four-position gain switches (+22, +4, 0, -10dB)
  • Signal present and clip LEDs per channel
  • Specifications
  • Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
  • Inputs: Tip: Audio +; Ring: Audio -; Sleeve: Ground
  • TRS Thru: Impedance matched output
  • Analog to Digital Conversion: 48kHz sample rate, 24 bit
  • Frequency Response: 4Hz-22kHz
  • A- Net In: One Category 5 (RJ45 connector) Four-position slot range selector switch for use with Pro16e A-Net
  • A-Net Out: One Category 5 (RJ45 connector)
  • Gain Settings: Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
  • Channel LED Indicators: Signal Present and Clip, per channel
  • Line Inputs: Impedance: 48k ohms
  • Metering: LEDs; green: Signal Present, red: Clip; per channel
  • Stereo Operation: Stereo Link, per channel pair; Two-position switch (Normal, Link)
  • Maximum Input Level: +22dBu
  • Input Impedance: 17.8k ohm
  • Freq. Response: 4Hz-22kHz +0.2dB/-3dB
  • THD +N: < 0.003%
  • Crosstalk: -90dB
  • Bit Error Rate(BER):10(-12)
  • Signal to Noise: (unweighted):90dB typical, A/D to D/A
  • Measured from AN-16/i to AN-16/o Output Module
  • Digital Outputs: A-Net: 1; RJ45 connector
  • Pro16e A-Net: Use unshielded Cat-5e UTP (or better) cable
  • Latency: <0.880 msec (measured from analog input to analog output)
  • Power Supply: External, DC, universal switching type
  • Input Voltage: 100-240 volts, 50/60Hz, 30VA
  • Output Voltage: 18-24 VDC, 0.5 amp
  • Plug Size: 2 mm
  • Power: 18-24 VDC, 500mA
  • Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep;
  • 1U high
  • Weight: 6.8 lb (3.08 kg)
