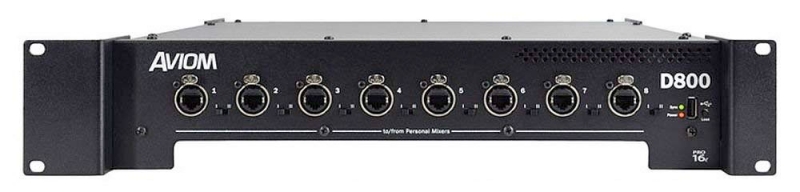

The D800 and D800-Dante link between input modules or console cards and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers.
Simple setup. Powerful performance.
On the most basic level, the D800 and the D800-Dante do an unglamorous but important job: get power and audio to your Personal Mixers. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.
Get more channels to your mixers
Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800 and D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A360 Personal Mixer using A360 Channel Manager, allowing each musician to mix exactly the sources they need.
Connect directly to Dante
If your audio system includes a Dante audio network, the D800-Dante can interface directly to the network. Assign up to 64 channels from Dante to the D800-Dante for distribution to the Aviom Personal Mixers. Mix channels can be individually selected for each A360 using A360 Channel Manager. Rear-panel DIP switches are used to set the stereo links for channels going to the Personal Mixers. Use the Dante Controller Mac/PC software application for channel routing.
Dante Sample Rates Up to 192kHz
With the D800-Dante, you can run your Dante network at 44.1/48kHz, 88.2/96kHz, or 176.4/192kHz. At higher sample rates, the D800-Dante converts the audio data to 48kHz for distribution to the Aviom Personal Mixers (and other A-Net devices).
Grow your system
If you need more than eight Personal Mixers, both the D800 and the D800-Dante include an A-Net Out port on the rear panel-perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors. Learn more about expanding your system.
Network Mix Back for wireless in-ears
If you're using A360 Personal Mixers, the D800 and D800-Dante eliminate the need for running analog cables from A360s to the transmitter units for the in-ear monitors.
Extend the interface with iOS
The D800 and D800-Dante manage communication between A360 Personal Mixers and supported iOS devices, allowing users to run the A360 Display app alongside their A360.

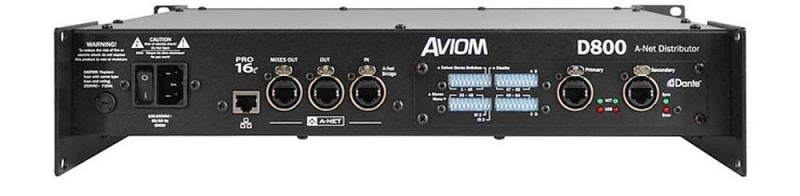

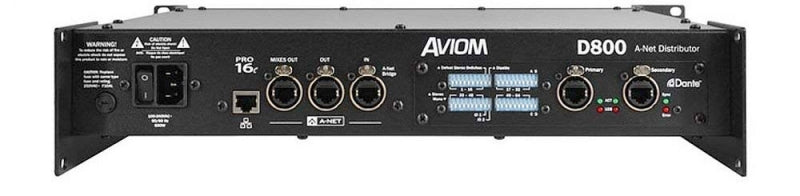

Dante Primary I/O
Locking RJ45 connector
Dante Secondary I/O
ocking RJ45 connector
Four DIP Switch blocks: 1-16, 17-32, 33-48, and 49-64used to set up to 32 channel pairs as stereo links
Stereo Link Defeat
Bypasses DIP switch stereo link settings
Disable DIP switch
Chooses Dante (down) or A-Net In (up) as the input source for the D800-Dante
ID1, ID2 DIP Switch
A, B, C, D DIP switch
LEDs (rear panel)
Error (red)Sync (green)1GB Active (red)Network Activity (green)
Supported Dante Sample Rates
44.1, 48kHz - 64 channels88.2, 96kHz - 32 channels176.4, 192kHz - 16 channels
Static IP support
Manufacturer Part Number : D800-dante
