Aviom D800

The D800 and D800-Dante link between input modules or console cards and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers.

Both units also integrate additional advanced options for delivering high-channel-count audio streams to your Personal Mixers, streamlining connections between A360s and transmitters for wireless in-ear monitors, and integrating the A360 Display iOS app.

The D800 and D800-Dante can be used with A-16II, A320, and A360 Personal Mixers in any combination.

Simple setup. Powerful performance.
On the most basic level, the D800 and the D800-Dante do an unglamorous but important job: get power and audio to your Personal Mixers. Set-up is a breeze, with no IP addressing, routing, or switch managing to worry about, so you can get set up and start mixing in no time, without a lot of hassle.

Get more channels to your mixers
Used in conjunction with the SB4 System Bridge and Pro16 A-Net console cards (such as the Y1 A-Net Card for Yamaha®), the D800 and D800-Dante can combine up to four 16-channel A-Net streams for sending up to 64 channels directly from your digital console to your Aviom Personal Mixers. Mix channels can be individually selected for each A360 Personal Mixer using A360 Channel Manager, allowing each musician to mix exactly the sources they need.

Connect directly to Dante
If your audio system includes a Dante™ audio network, the D800-Dante can interface directly to the network. Assign up to 64 channels from Dante to the D800-Dante for distribution to the Aviom Personal Mixers. Mix channels can be individually selected for each A360 using A360 Channel Manager. Rear-panel DIP switches are used to set the stereo links for channels going to the Personal Mixers. Use the Dante Controller Mac/PC software application for channel routing.

Dante Sample Rates Up to 192kHz
With the D800-Dante, you can run your Dante network at 44.1/48kHz, 88.2/96kHz, or 176.4/192kHz. At higher sample rates, the D800-Dante converts the audio data to 48kHz for distribution to the Aviom Personal Mixers (and other A-Net devices).

Grow your system
If you need more than eight Personal Mixers, both the D800 and the D800-Dante include an A-Net Out port on the rear panel-perfect for sending the incoming audio stream (regardless of its original source) on to additional A-Net Distributors. Learn more about expanding your system.

Network Mix Back for wireless in-ears
If you're using A360 Personal Mixers, the D800 and D800-Dante eliminate the need for running analog cables from A360s to the transmitter units for the in-ear monitors.

Extend the interface with iOS
The D800 and D800-Dante manage communication between A360 Personal Mixers and supported iOS devices, allowing users to run the A360 Display™ app alongside their A360.
Specifications

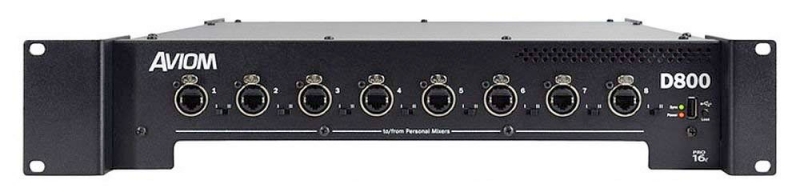

A-Net to/from Personal Mixers (front panel)
  • Eight locking RJ45 connectors, powered
  • Compatible with A-16II, A320, and A360 Personal Mixers
  • 2-position switch (I/II) accommodates A-16II and A320 (I) and the bidirectional A360 Personal Mixer (II)

  • A-Net In or A-Net Bridge In
  • Accepts Pro16 or Pro16e A-Net
  • One locking RJ45 connector

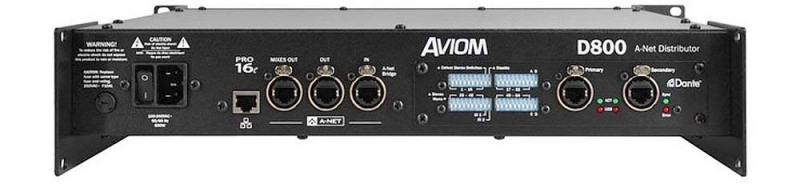

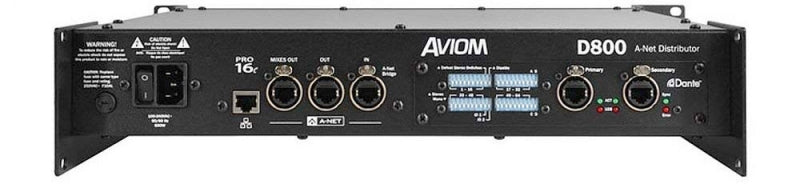

  • A-Net Out (rear panel)
  • Pro16e A-Net
  • one locking RJ45 connector, unpowered
  • Supports system expansion and the A-16II, A320, and A360 Personal Mixers

  • A-Net Mixes Out Pro16e A-Net
  • One locking RJ45 connector, unpowered
  • Provides up to 16 channels (8 stereo pairs) of Network Mix Back™ data from up to eight A360 Personal Mixers

  • Ethernet
  • One RJ45 connector for iOS A360 Display support

  • LEDs
  • Power On (red)
  • Sync (green)

  • USB
  • Used for firmware updates

  • A-Net Cables
  • Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.

  • Unshielded Cat-5e cable may be used on all rear panel connections

  • Output Voltage for Personal Mixers
  • 24VDC, 0.5 amp
  • Transmitted over the Cat-5e cable

  • Power Supply
  • Internal, universal switching type, IEC connector

  • Input Voltage
  • 100-240VAC, 50-60Hz, 300W
  • Fuse - 250VAC~ T4AL

  • Dimensions
  • 19" (482.6 mm) wide x 14.25" (362 mm) deep
  • 2U, 3.5" (88.9 mm) high

  • Weight
  • 12.0 lbs (5.44 kg)
  • Reviews
    Price

    $2412.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the D800, please visit the website of Aviom
