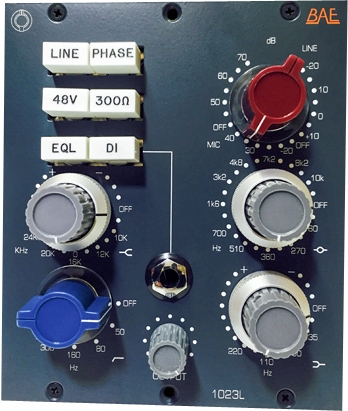

BAE 1023L

The 1023L - based on the classic 1023 - takes the preamp and EQ from the 1073 and expands upon it with significantly more frequency options in the high and mid sections.

It allows users to play the mid bell curve directly against the high and low shelves where they overlap.

The 1023L is completely handwired using Carnhill (St. Ives) transformers. It has the exact same mic/line preamp as the 1073, but with significantly more frequencies in the mid and high sections.

Aside from simply offering more frequency settings to play with, these expanded EQ sections also allow you to play the mid bell curve directly against the high and low shelves where they overlap. This capability opens the tone shaping possibilities in very interesting and musical ways.
Features
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
  • Mid Range: +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz,
  • 60Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz.
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
  • Specifications
    Frequency Response:
    10Hz to -3dB at 55kHz

    3 Band Equaliser:
    HF: +/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
    LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    MF: +/-18dB +/-12dB or +/-18dB peaking with switchable selectable centre frequencies of 160Hz, 270Hz, 360Hz, 510Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, 7.2kHz, 8.2kHz, 10kHz

    High Pass Filter:
    18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz

    Mic Input Impedance:
    1200/300 ohms

    Line Input Impedance:
    10k ohms

    DI Input Impedance:
    150k ohms

    Output Impedance:
    65 ohms

    Common Mode Rejection Ratio:
    100dB min @ 60Hz

    Maximum Output Level:
    +27.4 dBu @ 600

    Power Requirements:
    115/230 VAC, 28W

    Gain dB:
    0 to 80 dB

    Equivalent Input Noise:
    -110 dBu; Unweighted 300kHz Bandwidth

    Weight:
    6 LBS/2.72 KG

    Dimensions in Inches:
    45 mm W x 8.75 inches H x 10.5 inches
    Reviews
    Price *

    $3190.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the 1023L, please visit the website of BAE
