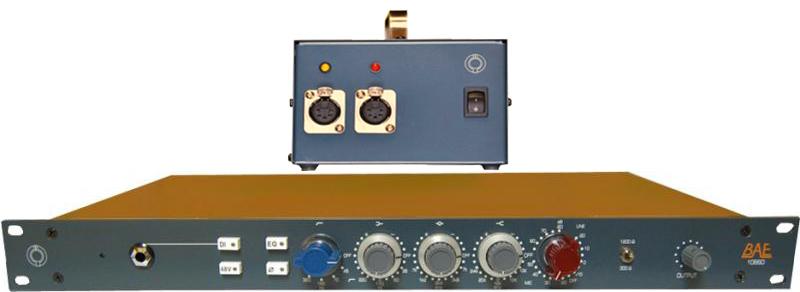

BAE 1066D - Mic Pre/EQ 19'' Rackmount with PSU

The BAE 1066D Mic Pre/EQ is completely hand-wired and has the same pre-amp as the 1073. This unit is popular among guitarists for having a unique mid-range frequencies.

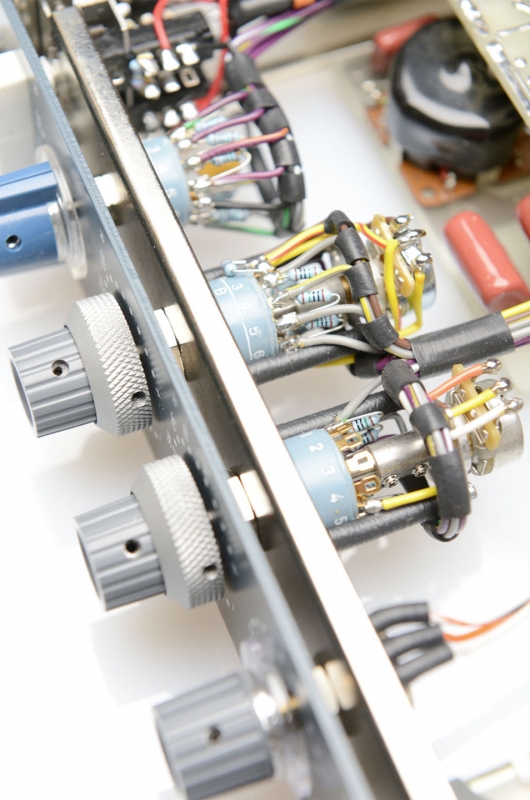

The 1066D is completely hand-wired using Carnhill (St. Ives) transformers and has the same mic-line pre-amp as the 1073, with the exception that the 1066D adds a few different frequencies to your pallet.

This unit is popular among guitarists for having a unique mid-range. The original 1066 only had a 10k shelving but this unit offers additional frequencies: 10k Hz,12k Hz,16k Hz, 20k Hz and 24k Hz.
Features
  • High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz, 16kHz, 20kHz and 24kHz.
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz &220Hz.
  • Mid Range: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
  • High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
  • EQ Button: Switches the equaliser on or off
  • Phase Button: 180°
  • Specifications
    Frequency Response
    10Hz to -3dB at 55kHz
    3 Band Equaliser
    HF:+/-16dB fixed frequency shelving at 10kHz,12kHz, 16kHz, 20kHz and 24kHz
    LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    MF: +/-16dB peaking with switchable selectable centre frequencies of 700Hz, 1.2kHz, 2.4kHz, 3kHz, 7kHz
    High Pass Filter
    45Hz, 70Hz, 160Hz & 360Hz
    Mic Input Impedance
    1200/300 ohms
    Line Input Impedance
    10k ohms
    DI Input Impedance
    150k ohms
    Output Impedance
    65 ohms
    Common Mode Rejection Ratio
    100dB min @ 60Hz
    Maximum Output Level
    +27.4 dBu @ 600

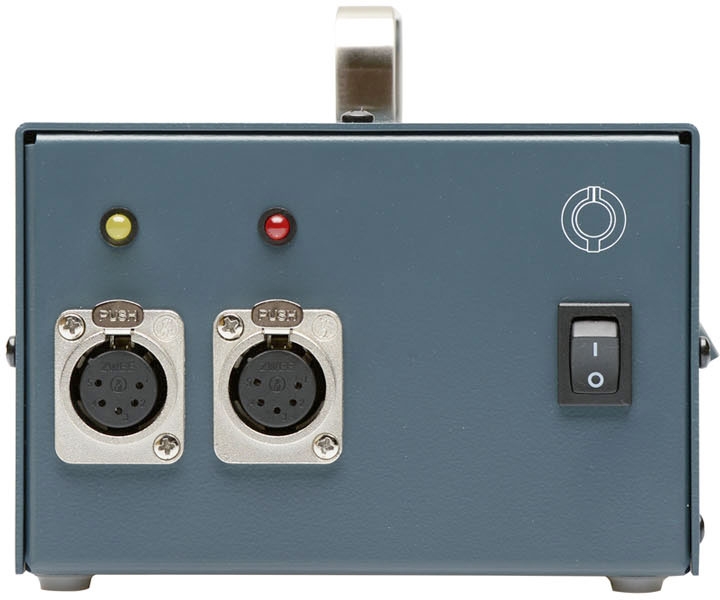

    Power Requirements
    115/230 VAC, 28W
    Gain dB
    0 to 80 dB
    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth
    Weight (Module/Rackmount)
    6 LBS / 2.72 KG
    10 LBS / 4.54 KG
    Dimensions in Inches (Module/Rackmount)
    45 mm W x 8.75 inches H x 10.5 inches D
    19W x 1.75L x 9D
    Reviews
    Price *

    $3967.00
    Free shipping in Canada. Conditions
