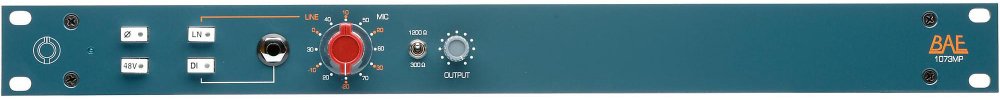

BAE 1073 - MP Single Channel without PSU
Single channel microphone preamp
This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.
A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.
There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.
As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.
All Class A, transformer-coupled design in a 19" 1U chassis.Line level XLR inputs for extra versatility as a line preamp.High impedance DI for guitar and synth.The same Class A components as the 1073 and 1084.Illuminated phase reverse and phantom power push-buttons.Input impedance selector switch between 1200 and 300 ohms.Same modular design and hand-wiring BAE is known for.Regulated linear power supply will run up to four channels.
10Hz to -3dB at 55kHz
Mic Input Impedance
Line Input Impedance
DI Input Impedance
Common Mode Rejection Ratio
100dB min @ 60Hz
Maximum Output Level
+27.4 dBu @ 600
115/230 VAC, 30W
0 to 71 dB
Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
8 LBS/3.63 KG
10 LBS/4.54 KG
19W x 1.75L x 9D
