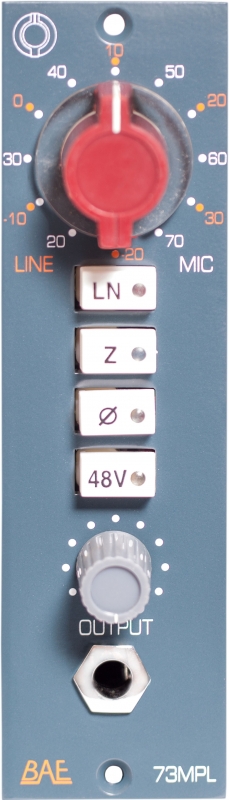

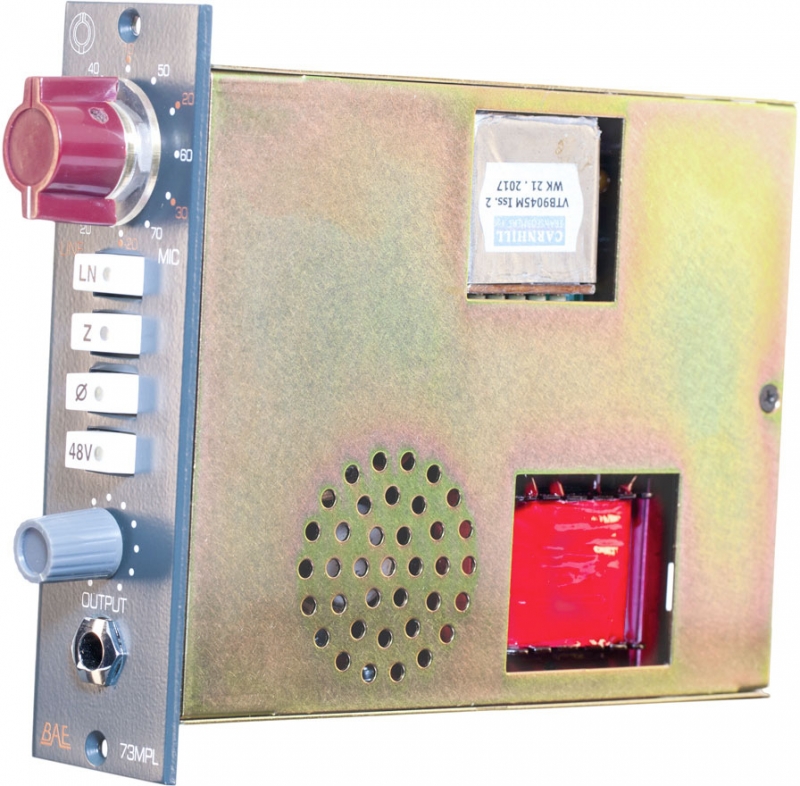

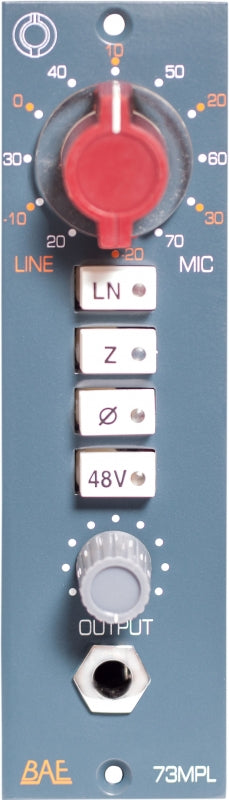

BAE 1073 - MPL

The BAE 1073MPL 500 series is a mic pre-amp version to fit in any lunchbox. It is a coloured and versatile mic-pre, the 1073MPL maintains its sonic signature.

This is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equaliser) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

Two selectable impedances makes the 1073MPL work well with a variety of microphones.
  • All Class A, transformer-coupled design in a 500 series module.
  • Original Marconi knobs.

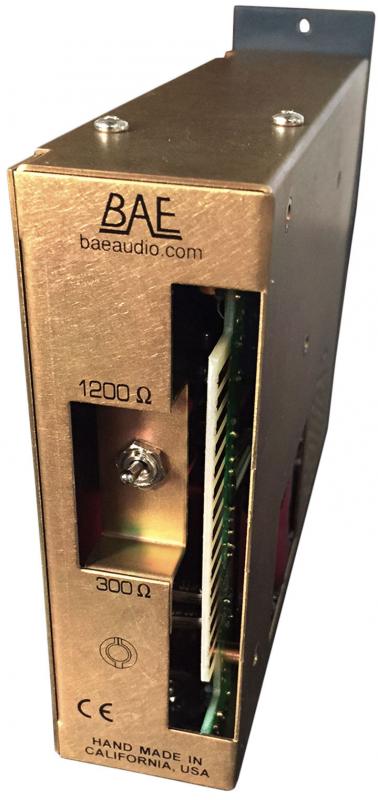

  • Input impedance selector switch between 1200 and 300 ohms.
  • Line level capability for extra versatility as a line preamp.
  • High impedance DI for guitar and synth.
  • Same Carnhill St Ives transformers as the 1073 and 1084.
  • Same modular design and hand-wiring BAE is known for.
  • Specifications
  • Frequency Response: 10Hz to -3dB at 55kHz
  • Line Input Impedance: 10k ohms
  • Output Impedance: 65 ohms
  • Common Mode Rejection Ratio: 100dB min @ 60Hz
  • Maximum Output Level: +27.4 dBu @ 600
  • Gain dB: 0 to 71 dB
  • Reviews
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the 1073 - MPL, please visit the website of BAE
