MPN #1073D


Financing available
Free shipping in Canada. Conditions

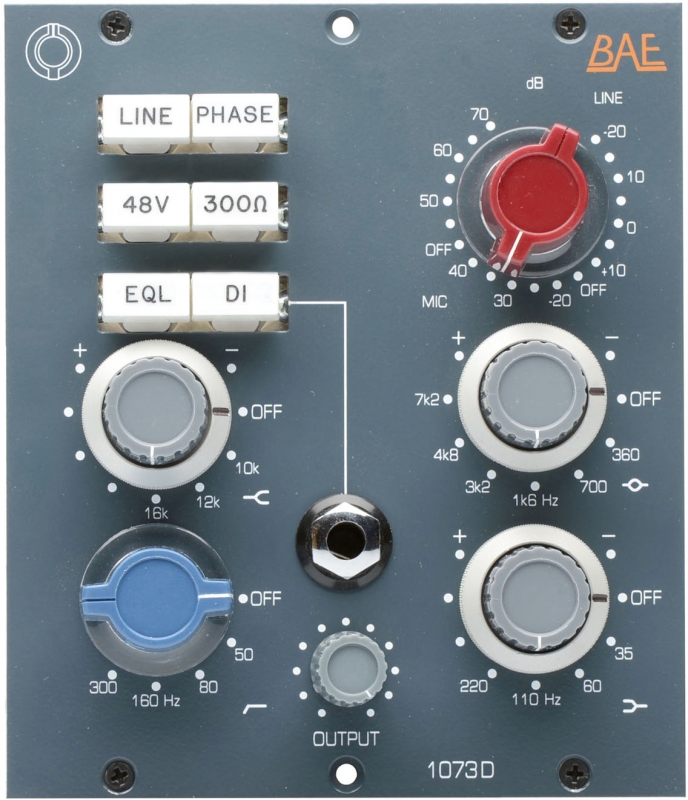

The BAE 1073D 500 series version is the most authentic, true Neve 1073 in 500 Series format. Direct instrument input and 3 band EQ, this unit will be one of your first call.

The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A micpre EQ module on the block.

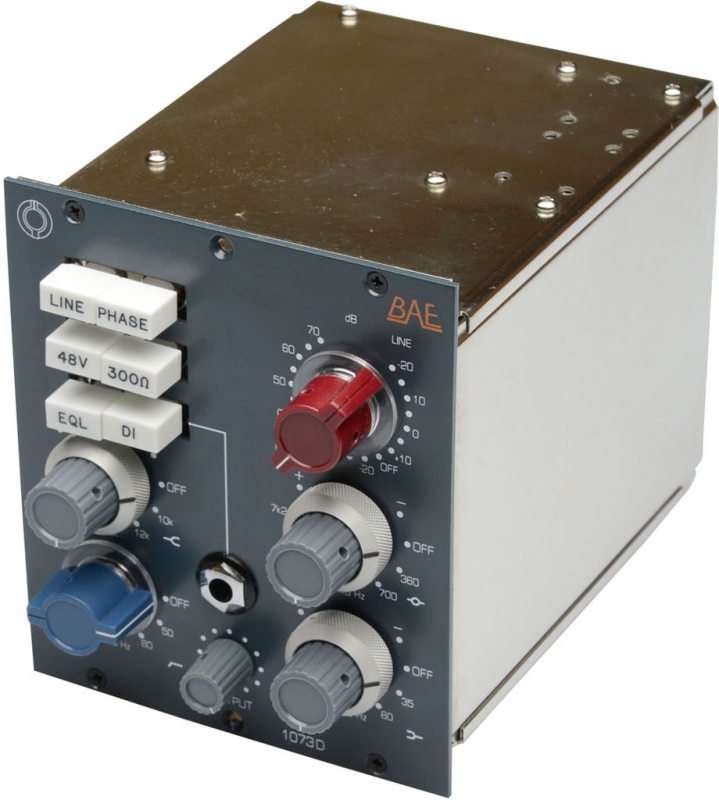

Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.
  • Mic gain: -20 to -80 dB in 5 dB increments
  • Line gain: -20 to +10 dB in 5 dB increments
  • High-pass filter frequencies: 50, 80, 160 & 300
  • High shelf frequencies: 10k, 12 & 16k
  • Mid bell frequencies: 360, 700, 1.6k, 3.2k, 4.8k, 7.2k
  • Low shelf frequencies: 35, 60, 110, 220
  • Output attenuator
  • Direct instrument input
  • Polarity reverse
  • 48V phantom power
  • 300 ohm switch
  • Frequency Response
    10Hz to -3dB at 55kHz

    3 Band Equaliser
    HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
    LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
    MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

    High Pass Filter
    50Hz, 80Hz, 160Hz & 300Hz

    Mic Input Impedance

    Line Input Impedance

    DI Input Impedance

    Output Impedance

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600

    Power Requirements
    +/- 16VDC - 120mA

    Gain dB
    0 to 70 dB

    Equivalent Input Noise
    -110 dBu; Unweighted 300kHz Bandwidth

    5 LBS/2.72 KG

    Dimensions in Inches (Module/Rackmount)
    4.5W x 5.25H x 5.5D
