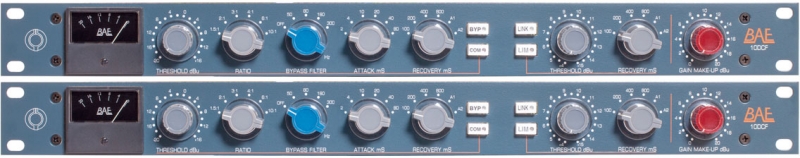

BAE 10DC - Stereo Channel with PSU

BAE 10DC Stereo features a transformer coupled, all-discrete circuitry that is sonically familiar to the BAE Class A line of gear, ideal for achieving the classic analogue sound.

BAE Audio introduces the model 10DC compressor/limiter to compliment their line of Class A series outboard gear. The 10DC features a transformer coupled, all-discrete circuitry which is sonically familiar to the BAE Audio Class A line of gear, like the 1073, for the classic analog sound favorable in today's digital recording. Stepped switches for every control, a reverse analog meter, and the trademark Marconi knobs makes seeing what you're doing easy and repeatable. Independent circuitry for compressor and limiter - use one, or both, for greater control.

The 10DC also implements a true bypass and is stereo linkable.

The 10DC is nicely housed in a steel chassis using the same remote supply as other BAE Audio units.
Features
  • Discrete Class A transformer-coupled circuit throughout.
  • Fully independent Compressor and Limiter for separate audio dynamics control.
  • Intuitive layout with illuminated meter showing gain reduction.
  • High quality stepped Elma switches for dialing accuracy and repeatability.
  • True bypass even when the unit is off.
  • Same remote power supply as used on other 24VDC BAE units. One power supply can run two units.
  • Specifications
    Frequency Response
    5Hz to 45kHz -1dB Measured at +8dBu
    Noise
    -80dBu with 200ohms source
    Maximum Output Level
    +33dBu into 10k
    +27dBU into 600
    Distortion
    Varies from 0.03% to greater than 1%

    Compressor
    Threshold:
    -20dBu to +16dBu with 2dB steps
    Ratio:
    1.5:1 to 10:1 with 6 position switch
    Attack:
    2mS to 80mS with 6 position switch
    Recovery:
    100, 200, 400, 800mS
    Auto 1 100mS isolated peaks, 2 Sec prolonged levels
    Auto 2 50mS isolated peaks, 5 Sec prolonged levels

    Limiter
    Threshold:
    +4dBu to +15dBu with 0.5 dB steps
    Attack:
    Slow 4mS, Fast 2mS
    Recovery:
    100, 200, 400, 800mS
    Auto 1 100mS isolated peaks, 2 Sec prolonged levels
    Auto 2 50mS isolated peaks, 5 Sec prolonged levels

    Gain Make-up:
    0 to +20dBu in 1 dB steps
    Output Impedance
    100 Balanced earth free
    Power Consumption
    200mA at 24VDC
    Dimensions in Inches
    19W x 1.75L x 9D
    Reviews
    Price *

    $4481.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the 10DC - Stereo Channel with PSU, please visit the website of BAE
