MPN #1272MOD
BAE 1272 - Module

$743.00

Financing available
Free shipping in Canada. Conditions

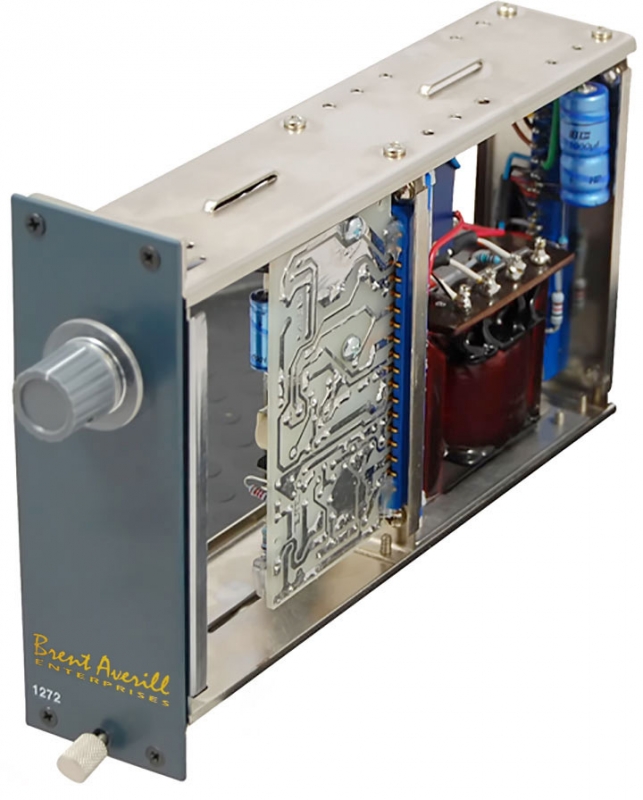

The 1272 module made by BAE is built to specifications to be used in original Neve consoles.



BAE 1272 Module. 300 ohms or 1200 ohms transformer balanced input.
  • Built to specifications for Neve consoles.
  • The same hand-wired construction that BAE is known for.
  • Frequency Response
    +/- 0.5dB 20Hz-20kHz

    Mic Input Impedance
    1200 or 300 ohms

    Output Impedance
    50 ohms

    Common Mode Rejection Ratio
    100dB min @ 60Hz

    Maximum Output Level
    +27.4 dBu @ 600

    Power Requirements
    80mA @24VDC

    Gain
    39dB External Gain Optional

    Equivalent Input Noise
    Better than -85dBu

    Weight
    4.25 LBS / 1.93 KG

    Dimensions (in Inches)
    5.25W x 1.8L x 8.5D
    View more products from BAE
