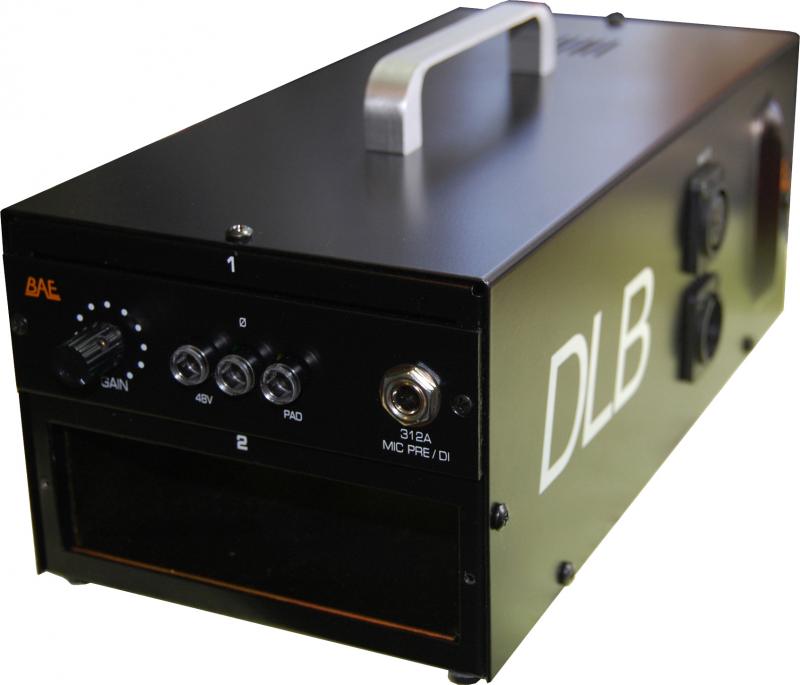

BAE DLB - With One 312A

The BAE DLB with One 312A mic preamps. Using the Avedis 1122 opamps it is excellent for drums and percussion.

The BAE 312A preamp
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.

Desktop Lunchbox
It as a Strong steel chassis - not aluminium, shielded wires on individual connectors for serviceability- no PCBs.
XLR inputs and outputs and remote power supply keeps power transformer interference away from modules.
Features
BAE 312A Module Features
  • Modules plug into API compatable lunchboxes and racks
  • Made using Avedis 1122 opamps
  • Can be phantom powered if your rack has a 48v power supply built in Pin compatible with API 550A equalizers
  • Switches have gold contacts for long life
  • Supplied with Jensen input and output transformers at no additional cost
  • High impedance direct input for guitar and synthesizer


  • BAE DLB 2 Channel Desktop Lunchbox
  • 2x 500 series slots
  • Over built power supply (built in) for 3rd party modules
  • Ins and outs on the side
  • Solid steel chassis
  • Same hand-wired modular construction that BAE is known for
  • Specifications
    BAE 312A:

    Frequency Response
    5Hz to 75kHz (-3dB)
    Mic Input Impedance
    1400 ohms
    Line Input Impedance
    10k ohms
    DI Input Impedance
    250k ohms
    Output Impedance
    75 ohms
    Common Mode Rejection Ratio
    110dB min @ 60Hz
    Maximum Output Level
    +27.1 dBu @ 600
    Power Requirements
    115/230 VAC, 27W (Rackmount)
    40mA per Rail (Module)
    Gain dB
    10 to 66 dB
    Equivalent Input Noise
    -120 dBu; Unweighted 300kHz Bandwidth
    Weight (Module/Rackmount)
    1 LBS / 0.45 KG (Module)
    7 LBS / 3.18 KG (Single Rackmount)
    8 LBS / 3.63 KG (Dual Rackmount)
    Dimensions in Inches (Rackmount/Module)
    19W x 1.75L x 9D (Rackmount)
    1.5W x 5.5L x 6D (Module)
    Reviews
    Price *

    $1329.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the DLB - With One 312A, please visit the website of BAE
