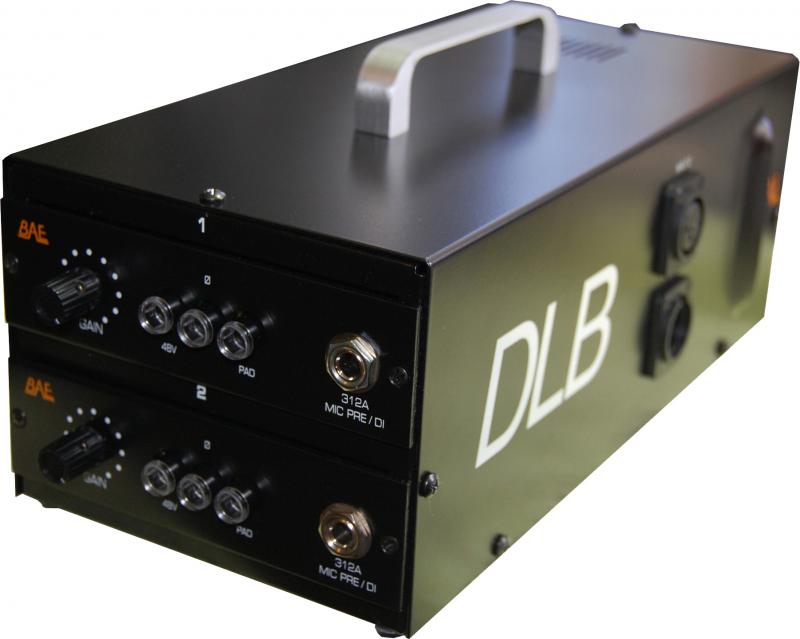

The BAE DLB with Two 312A mic preamps. Using the Avedis 1122 opamps it is excellent for drums and percussion.
The BAE 312A preamp
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.
Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.
It as a Strong steel chassis - not aluminium, shielded wires on individual connectors for serviceability- no PCBs.
XLR inputs and outputs and remote power supply keeps power transformer interference away from modules.
BAE 312A Module Features
Modules plug into API compatable lunchboxes and racks
Made using Avedis 1122 opamps
Can be phantom powered if your rack has a 48v power supply built in Pin compatible with API 550A equalizers
Switches have gold contacts for long life
Supplied with Jensen input and output transformers at no additional cost
High impedance direct input for guitar and synthesizer
BAE DLB 2 Channel Desktop Lunchbox
2x 500 series slots
Over built power supply (built in) for 3rd party modules
Ins and outs on the side
Solid steel chassis
Same hand-wired modular construction that BAE is known for
5Hz to 75kHz (-3dB) Mic Input Impedance
1400 ohms Line Input Impedance
10k ohms DI Input Impedance
250k ohms Output Impedance
75 ohms Common Mode Rejection Ratio
110dB min @ 60Hz Maximum Output Level
+27.1 dBu @ 600 Power Requirements
115/230 VAC, 27W (Rackmount)
40mA per Rail (Module) Gain dB
10 to 66 dB Equivalent Input Noise
-120 dBu; Unweighted 300kHz Bandwidth Weight (Module/Rackmount)
1 LBS / 0.45 KG (Module)
7 LBS / 3.18 KG (Single Rackmount)
8 LBS / 3.63 KG (Dual Rackmount) Dimensions in Inches (Rackmount/Module)
19W x 1.75L x 9D (Rackmount)
1.5W x 5.5L x 6D (Module)
