MPN #ISUB2-10
Bag End ISUB2-10

$2080.00

Save 10%, MSRP $2310.00
Financing available
Free shipping in Canada. Conditions

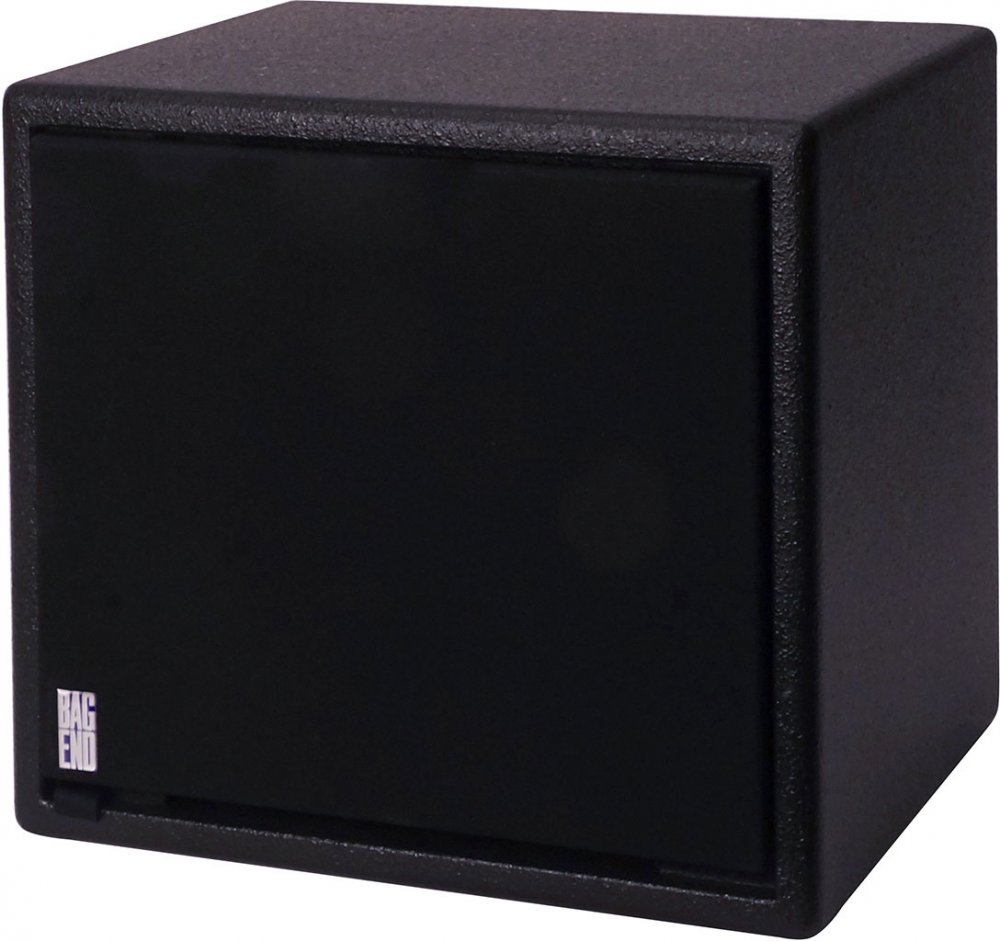

Single 10? Infra Subwoofer System with 5.1 bass management and cloth grille



The ISUB2-10 is a self powered professional subwoofer system. It employs stereo summing management combining two inputs for a mono summed bass system.

The signal is processed by the INFRA dual integrator driving a 700 watt power amplifier into a front firing 10" cone loudspeaker in a sealed box. This provides a flat acoustical response down as low as 8 Hertz. Two iso- lated inputs allow the combining of a stereo signal for mono summed bass. Two units can be used separately for stereo bass systems.

DYNAMIC FILTER:
The internally set Dynamic Filter protection maintains undistorted audio reproduction under accidental overload conditions. An optional remote indicator module (REMCON- 2) may be placed in a convenient, visible location to indicate the dynamic filter protec- tion threshold has been reached.

The INFRA driver is operated below resonance and flattened with an electrical boosting circuit, the INFRA dual integrator. Operating below resonance the INFRA sys- tem exhibits predictable, uniform response and reproduces each note with the same emphasis, reducing the influence of the res- onances found in conventional above reso- nance bass systems. In addition, the use of a low pass filter is eliminated (and with it the associated long variable delay) and replaced with the INFRA dual integrator with its short uniform delay.

Upon close listening, it is clear that the impression of power and impact is greater with an INFRA system when compared to conventional bass systems. This is true even when the two systems will measure the exact same Sound Pressure Level on a calibrated SPL meter. This is because the INFRA sub- woofer maintains the bass energy in a tight packet, aligned with the upper range signal, providing a greater body impact and a seam- less musical connection with the main loud- speakers.

Objectively, the INFRA system exhibits supe- rior frequency and phase response.
  • Single 10? Infra Subwoofer System
  • Self Powered, Self Infra Processor with 5.1 Bass Management
  • REMCON-2 Optional Remote Dynamic Filter?
  • Configured For Studio Installation Applications
  • Black Textured Finish or High Gloss Automotive Finish
  • 12.5?h x 14?w x 11.5?d, 27 Lbs
  • Input Configuration:
    2 Isolated Balanced XLR
    female line level

    Input Mode: 2 Summing inputs

    INFRA Module: 8 Hz dual integrator

    INFRA Frequency Response:
    ±3 dB 8 Hz to 95 Hz (2p Steradians)
    INFRA system -6 dB frequency 95 Hz
    (not adjustable)

    INFRA Level Control: Adjustable level

    INFRA Cutoff Frequency: Internally set 8 Hz or 16 Hz

    INFRA Overload Protection: Preset threshold Dynamic Filter circuitry

    INFRA Polarity: ± Push button switch

    RTI:
    Optional Remote Threshold Indicator
    Threshold exceeded indication red LED

    Amplifier Output Power: 700 Watts continuous sine wave

    Low Frequency Transducer: EL-10 10" Cone

    Enclosure: 13 ply birch plywood
    AC Power Requirements:
    Auto sensing 100 to 250 VAC

    Finish: Black textured finish or
    optional high gloss automotive finish

    Grille: Black nylon cloth on frame

    Other Options: REMCON-2-
    Optional Remote Dynamic Filter
    threshold indicator

    Dimensions:
    12.5"h x 14"w x 11.5"d
    32cm x 36cm x 30cm

    Weight: 27lbs - 13kg
