MPN #M-6
Bag End M-6

$1195.00

Save 11.9%, MSRP $1357.00
Financing available
Free shipping in Canada. Conditions

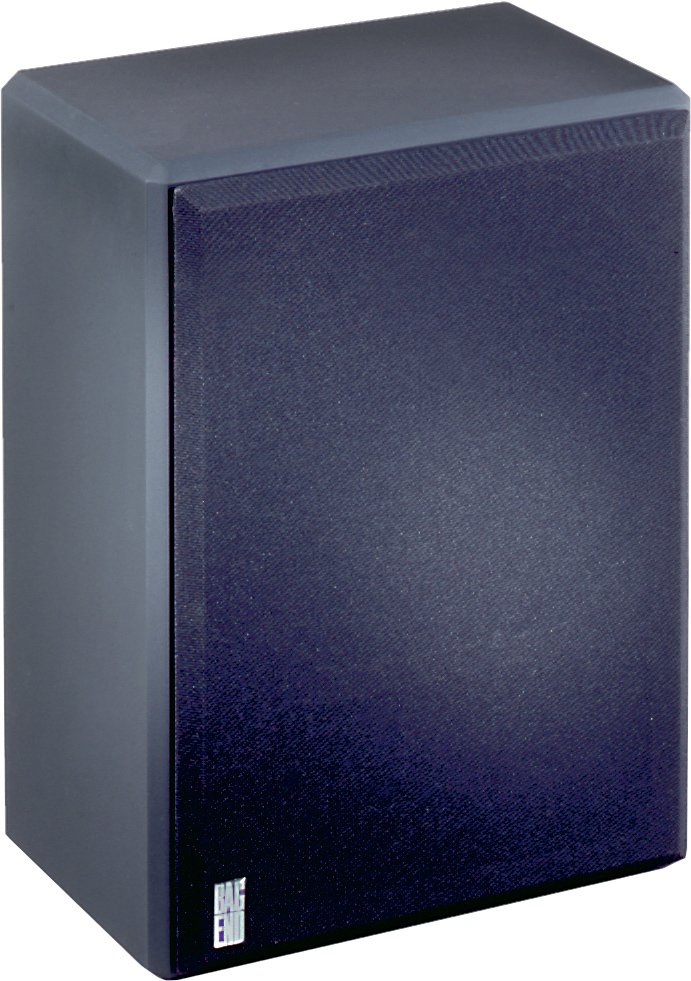

The Bag End M-6 is a 6-inch, 2-way, coaxial Time-Aligned loudspeaker system designed for critical near field studio monitoring applications



Designed as a Nearfield Monitor the M-6 offers accurate time and frequency information within the near field listening area. Despite its small size it has high acoustic output and unsurpassed clarity and resolution of detail. The wide uniform dispersion expands the sweet spot to allow 2 people to sit side by side in the near field and experience the same frequency response. Attachment points are provided for Bag End mounting bracket (BRKT-1) and other popular mounting hardware.
  • Single 6.5 2-Way Time Align Coaxial Studio Monitor
  • Internal Passive Crossover, External DSP Not Required
  • Configured For Studio Installation Applications
  • Black Textured Finish, 14"h x 9"w x 9"d, 15 Lbs
  • System Type:
    2-way coaxial sealed 0.4 ft3

    Enclosure:
    3/4" MDF

    Finish:
    Black Ro TexTM True water born environmental finish

    Grille:
    Black nylon cloth over wood frame

    Low Frequency Components:
    Low/Mid Frequency Transducer, 6.5" Cone, 1.5" Voice coil

    High Frequency Components:
    1" Soft Dome Coaxially Mounted Neodymium Tweeter

    Input Connector:
    5-way binding posts

    Crossover Type:
    Passive Time-Align equalizer filter @ 3.5 kHz

    Time Offset Between Driver:
    < ± 25 Microseconds 300Hz to 10kHz

    Sensitivity:
    87 dB SPL (2.83 V@ 1m)

    Frequency Response:
    60 Hz to 20 kHz ±3 dB

    Low Frequency Limit:
    45 Hz (-10dB)

    Power Handling:
    90 W continuous (AES) 180 W program

    Recommended Amplifier Power:
    90 to 180 W at rated impedance

    Rated Impedance:
    8 Ohms

    Distortion:
    Less than 3% THD or IMD (94 dB SPL @ 1m)

    Recommended High Pass Filter:
    50 Hz Butterworth 12 dB/octave

    Polarity:
    A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure

    Dimensions:
    14"h x 9"w x 9"d
    36 cm x 23 cm x 23 cm

    Weight:
    15 lbs 7 kg

    Custom Finishes:
    Optional custom finishes include standard white, unfinished ready to paint ,high gloss automotive paint and outdoor weatherproof treatment

    APPLICATIONS
    Recording Studio Nearfield Monitor
    Screening Room
    Surround Monitoring
    Reference Home Listening Systems
    Laboratory Reference System
