Bag End PM-6


Save 15%, MSRP $1374.00
Free shipping in Canada. Conditions

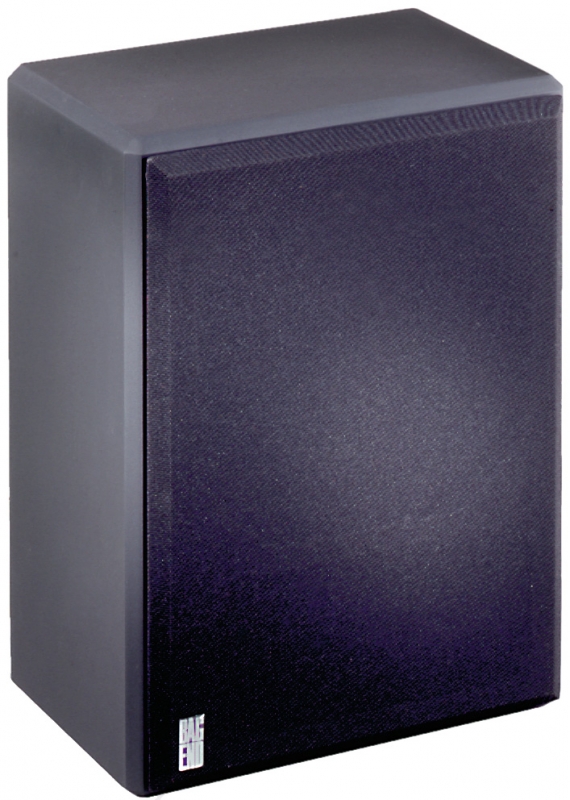

The Bag End PM-6 is a Self Powered 6.5 inch, 2-way, coaxial Time-Aligned loudspeaker system designed for critical near field studio monitoring applications.

Designed as a Nearfield Monitor the PM-6 offers accurate time and frequency information within the near field listening area. Despite its small size it has high acoustic output and unsurpassed clarity and esolution of detail. The Coaxial Design insures uniform response in the horizontal and vertical position. The wide uniform dispersion expands the sweet spot to allow 2 people to sit side by side in the near field and experience the same frequency response.


System Type: 2-way coaxial sealed 0.4 ft
Enclosure: 3/4" MDF
Finish: Black Ro Tex True water born environmental finish
Grille: Black nylon cloth over wood frame
Low Frequency Components: Low/Mid Frequency Transducer, 6.5" Cone, 1.5" Voice coil
High Frequency Components: 1" Soft Dome Coaxially Mounted Neodymium Tweeter
Input Connector: 3 pin female XLR
Input Impedance: 10K Ohms
Input CAL Sensitivity: +4 dBu
Maximum Continuous Amplifier Power: 150 W into 8 Ohms
High Pass Filter: None
Overload Protection: None
LED Indicators: Green - On
Mains Voltage Requirements: 120 v or 230 v internally switchable
Crossover Type: Passive Time-Align equalizer filter @ 3.5 kHz
Time Offset Between Driver: < ± 25 Microseconds, 300Hz to 10kHz
Sensitivity: 87 dB SPL (2.83 V @ 1m)
Frequency Response: 60 Hz to 20 kHz ±3 dB
Low Frequency Limit: 45 Hz (-10dB)
Distortion: Less than 3% THD or IMD (94 dB SPL @ 1m)
Recommended High Pass Filter: 50 Hz Butterworth 12 dB/octave
Polarity: A positive asymmetrical signal applied to pin 2 will result in a positive asymmetrical acoustical pressure
Dimensions: 14"h x 9"w x 9"d, 36 cm x 23 cm x 23 cm
Weight: 18 lbs, 8 kg
Custom Finishes: Optional custom finishes include standard white, unfinished ready to paint ,or high gloss automotive paint

  • Recording Studio Nearfield Monitor
  • Surround Monitoring
  • Laboratory Reference System
  • Screening Room
  • Reference Home Listening Systems
  • Manufacturer Part Number : PM-6
