The MicroStack45 is a 3-way Active Reference Monitors and Stereo Subwoofers with MEME Technology

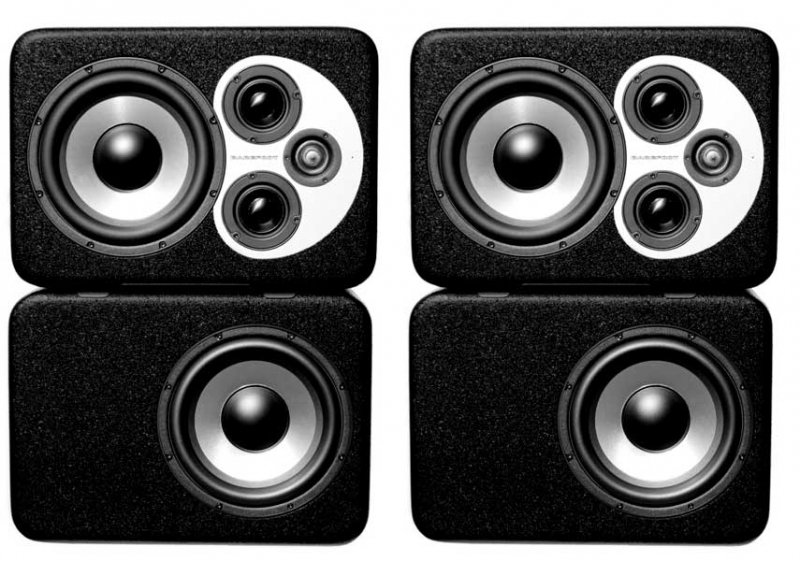

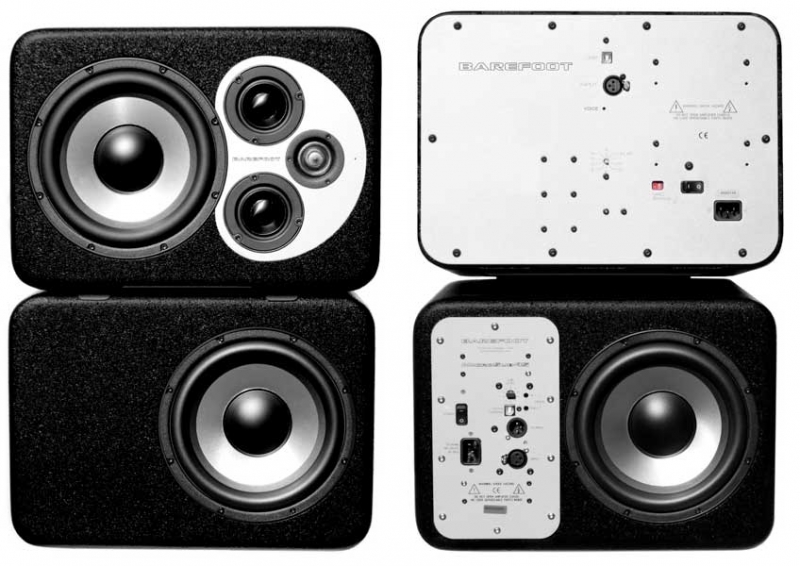

With the recent introduction of Barefoot Sound's MicroSub45 Dual-Force technology subwoofer you can create MicroStack45, a stereo package of two MicroMain45 3-way active reference monitors and two MicroSub45 subwoofers. Each stereo system incorporates a pair of 1-inch tweeters, four 2.5-inch midrange drivers and six high-excursion 8-inch woofers, all designed to work seamlessly together and as a single unit.
DUAL-FORCE LOW FREQUENCY EXTENSION

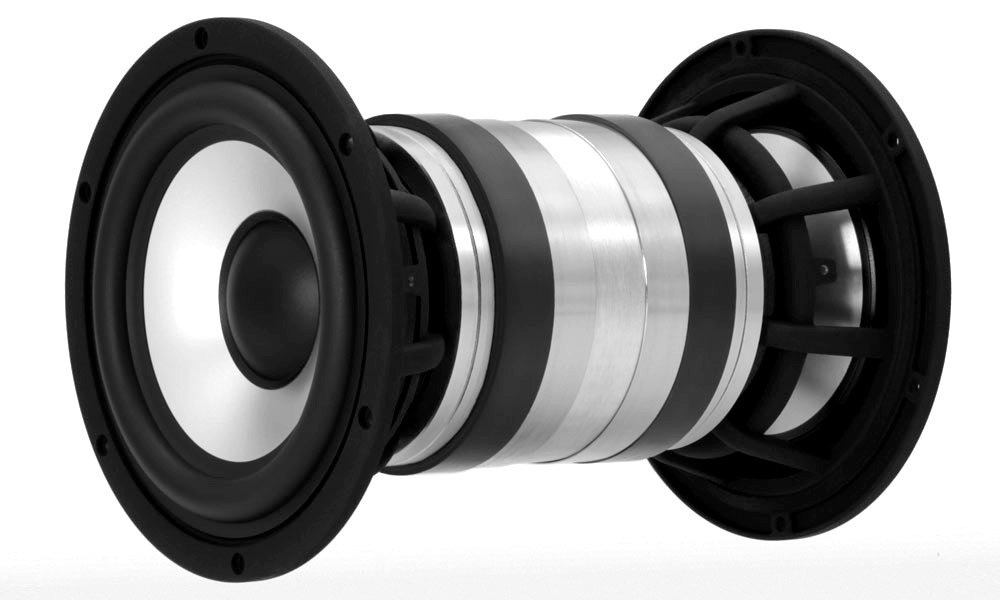

MicroSub45 subwoofers feature Barefoot's innovative Dual-Force technology, housing a pair of opposing 8-inch aluminum cone drivers plus a balanced analog high-pass filter that crosses the system over at 80 Hz. Dual-Force technology eliminates vibration within the MicroSub45 speaker cabinet, delivering clean low frequency extension down to 25 Hz when combined with the MicroMain45.
STACKS AND TILTS

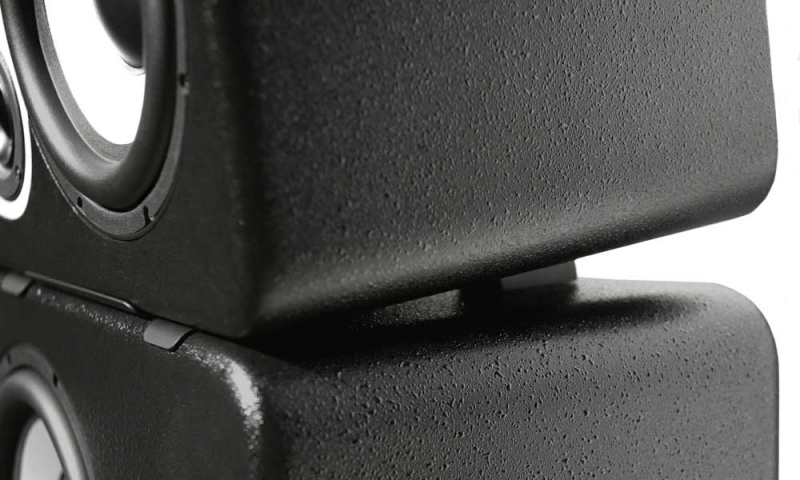

Barefoot Sound's MicroStack45 system works optimally when the MicroMain45 monitors are positioned either directly on top of or underneath the MicroSub45 subwoofers, depending on your preference. A tilt feature enables the MicroMain45 monitors to be directed at the listening sweet spot and is designed so that the stack is very sturdy and will not slip.
If you are working to a budget, you can start with a stereo pair of MicroMain45 monitors then add two MicroSub45 subwoofers when the time is right.
- 2220 Watts of Power
- 80 Hz Balanced Analog High-Pass Filter
- Bass Response Down to 25 Hz
- Dual-Force Technology
- (6) 8" Aluminum Woofers
- Dual-Force Technology
- MEME Technology
Input level stepped attenuatorEqualization contour
Input Impedance: 50k Ohm
18Hz - 50kHz (±3dB)26Hz - 40kHz (±1dB)
-3 dB @ 25Hz, Q = 0.707Slope = 12 dB/octave
32 liters total internal volume togetherBoth units are sealed woofer and midrange enclosuresMachined aluminum baffle plateLong fiber foam acoustic damping throughout
Crossover Frequencies: 80 / 600 / 3600 Hz
Tweeter: 1″ ring radiator, Advanced geometry motor, Rear waveguide chamber
Amplifier: 180W Hypex
2 x 2.5″ aluminum conesAdvanced geometry motor+/- 2 mm linear excursionAmplifier: 180W Hypex
2 x 8″ aluminum conesAdvanced geometry motor+/- 13 mm linear excursionAmplifier: 500W
4 x 8″ aluminum conesAdvanced geometry motor+/- 25 mm linear excursionAmplifier: 1000W
AC Power Input: Nominal 115 VAC or 230 VAC selectable
Idle: 25WMaximum: 1165W
Speaker: 37.5 lbs each (17 kg)Shipping: 47 lbs each (21 kg)
Speaker: 45 lbs each (20.5 kg)Shipping: 54.5 lbs each (25 kg)
Cabinet: 11.0 x 15.5 x 10.75 inches (279 x 394 x 273 mm)Overall: 11.0 x 15.5 x 11.0 inches (279 x 394 x 279 mm)
Cabinet: 14.0 x 9.5 x 13.0 inches (356 x 241 x 330 mm)Overall: 14.0 x 10.25 x 13.6 inches (356 x 260 x 345 mm)
Stack: 14.0 x 20.50 x 13.6 inches
