Beachtek DXA-ALEXA
UPC/EAN #8960280000928
MPN #DXAALEXA
2 channel studio grade mic pre-amp for ARRI ALEXA, Lightweight carbon fibre construction, high gain pre- amps, multiple included mounting options
Made for the ARRI ALEXA Mini - Integrates Perfectly with the Camera
Transform your ALEXA Mini to a fully featured mini doc camera with on-board audio capabilities with the DXA-ALEXA. The carbon fiber chassis matches the look and feel of the camera and with a weight of under 1 lb, the slim line design will easily fit on your rig and not bog you down. Constructed of top quality components, including weather resistant top panel switches for outstanding reliability and durability. Also ideal for use with any other mini cinema cameras such as the RED DSMC2 models.
Cinematic Sound - Nothing Could Be Easier to Use or Provide Better Performance

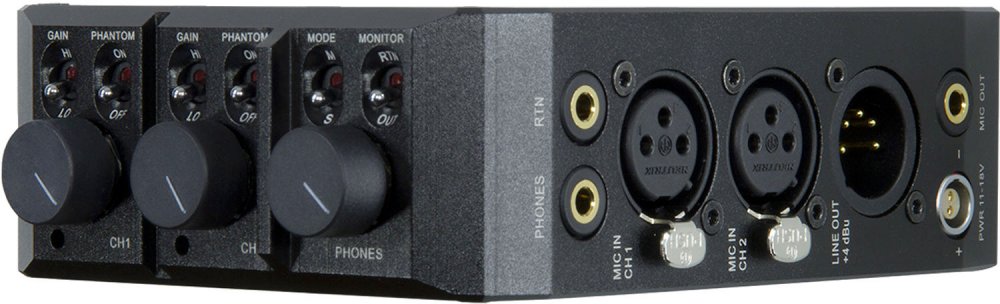

The ultra low-noise preamplifiers provide exceptional performance with over 100dB in dynamic range. The two XLR inputs are transformer balanced for galvanic isolation and high common mode rejection. The DXA-ALEXA also provides all the features you need including dual gain controls, phantom power, level indicators and headphone monitoring. The tri-color LED level indicators make it a snap in setting the proper recording levels. The output is a balanced 5-pin XLR that connects directly to the 5-pin Lemo input on the camera via an optional cable. There is also an auxiliary mic level output via an unbalanced stereo mini-jack so it can be connected to a variety of other cameras and recording gear. Power is from your rig via the 2 pin Lemo connector.
Flexible Mounting Options - Fits Neatly and Easily on Your Rig

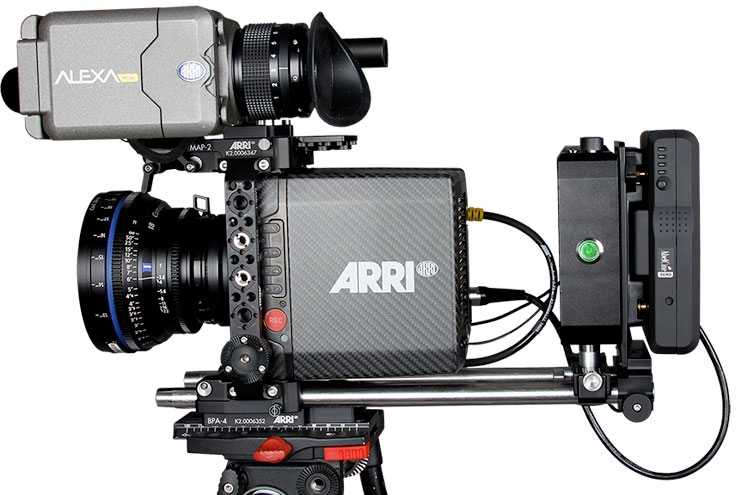

With the included bracket, you can mount the DXA-ALEXA in several ways to the camera cage. When using the ARRI ALEXA Mini camera cage, you can mount it under the handle, side bracket or anywhere with an optional V-Lock. The bracket has captive thumb screws to easily add or remove the device from the camera. The base of the unit has three threaded 1/4/20 holes to also allow it to be mounted to the rails via a third party rail bracket.
Features

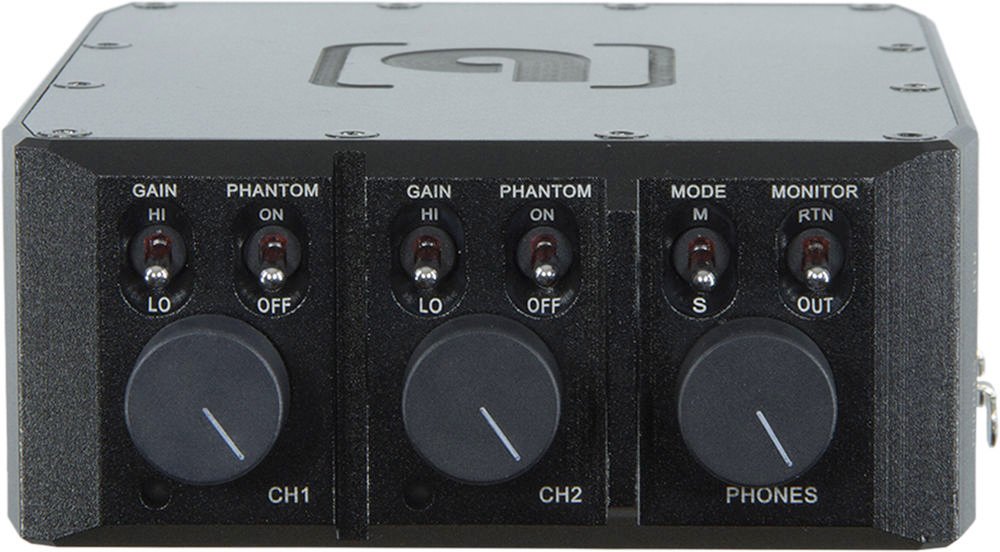

Balanced mic level inputsSwitchable 48 volt power on each channelBalanced +4dBu level outputUnbalanced -26dBu level outputProvides monitoring during recording and playbackSelectable gain of 40dB of 60 dB for each channelProvides galvanic isolation and high common mode rejectionRequires 11 to 18 volts DC external powerCorbon fiber panels and extruded aluminium chassisTop panel toggle switches are sealed to resist rainGreen for signal present, Yellow for good level, Red for overIncludes aluminum bracket for various mounting configurations
*requires 5-pin female XLR to 5-pin Lemo cable to attach to camera
Specifications
Frequency Response
20Hz to 20kHz (+/- 1.0dB)
Gain
Line Out Lo Gain: 40dB, Hi Gain: 60dBMic Out Lo Gain: 10dB, Hi Gain: 30dB
Maximum Input Level
Lo Gain: -15dBuHigh Gain: -35dBu
Output Clipping Level
Line Output: +25dBuMic Output: -5dBu
Dynamic Range
100dB
THD+N
Lo Gain: 0.012% (+4dBu output, 1kHz)Hi Gain: 0.06% (+4dBu output, 1kHz)
Channel Separation
Lo Gain: 85dB (+4dBu output, 1kHz)Hi Gain: 80dB (+4dBu output, 1kHz)
Metering (Tri-Color LED)
Green -40dBu to 16dBuYellow -16dBu to +4dBuRed Over +4dBu
Powering
External DC Input Jack (12-16V)Pin 1 = (-), Pin 2 = (+)
Dimensions
126 mm x 96 mm x 40 mm4.96" x 3.78" x 1.57"
Weight
374g (0.82lbs)
