Betso En2 HEXAPACK
MPN #En2 HEXAPACK
Ultra-compact 3-slot En2 rack, RF signal/antenna power distribution, low-noise RF filtering, 6"18V DC input, CNC aluminum build, 564g, 470"850MHz.

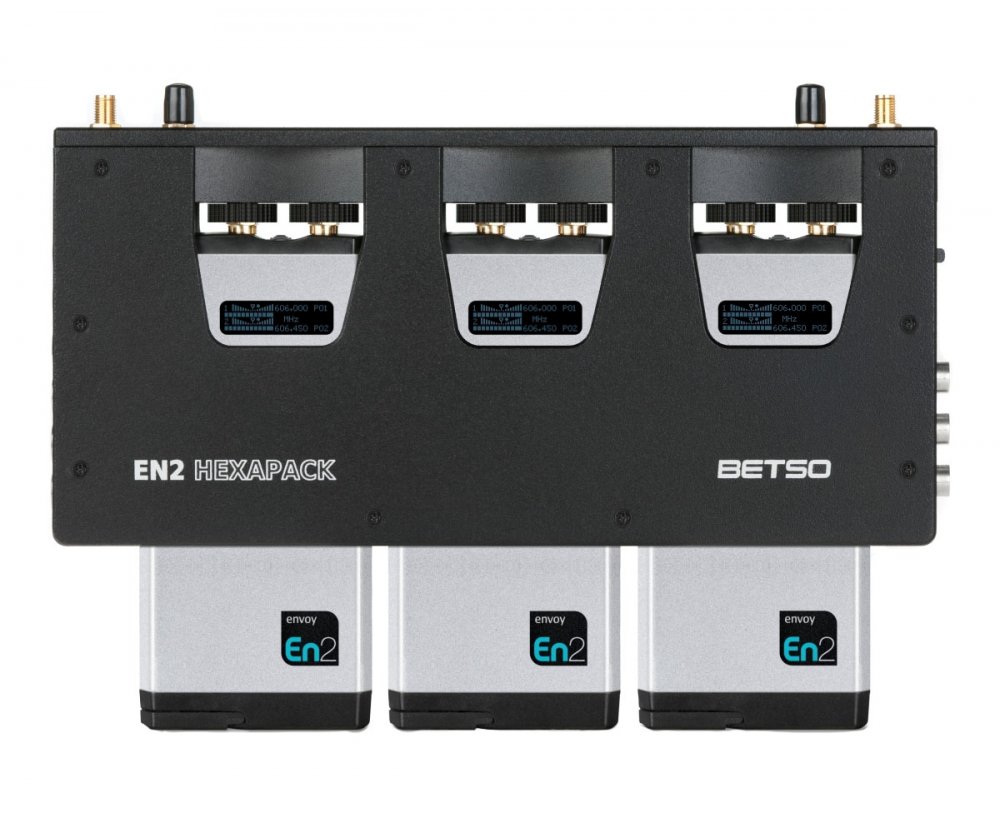

The BETSO EN2 HEXAPACK is a compact and durable portable rack system designed for Audio Ltd. En2 receivers. It accommodates up to three DX/DX2 units, providing six audio channels through a single pair of receiver antennas for maximum organization in the field. With integrated power distribution, it supplies energy to connected receivers, external antennas, and additional devices, while advanced RF filtering minimizes interference from other wireless sources. Built from CNC-milled aluminum, the HEXAPACK is lightweight yet robust, making it an ideal solution for reliable and efficient wireless system management in demanding production environments.
Features
Compact Multi-Receiver Rack: Holds up to three En2 DX/DX2 receivers for 6 audio channels in one organized system.Antenna Signal Distribution: Shares RF signal from one pair of antennas to all connected receivers, with outputs to link multiple HEXAPACKs if needed.Advanced RF Filtering: Built-in high-efficiency input filters reduce interference from walkie-talkies, FM radios, Wi-Fi, Bluetooth, and other unwanted signals.Active Antenna Powering: Can supply DC power to external active antennas (e.g., BETSO SHARKIE, CPAA) via SMA connectors.Power Distribution: Runs on 6"18 V DC external power, with parallel outputs to feed other devices in the rig.Ultra-Low Noise: Ensures cleaner wireless performance with fewer dropouts.Field-Ready Build: CNC-milled aluminum alloy construction for durability in demanding environments.Lightweight & Portable: Compact design at only 564 g (1.24 lb) for easy transport and setup.
Specifications
General Specifications
Model: EN2 HEXAPACKFrequency Range: 470 " 850 MHzInput Filters Attenuation: "82 dB @ 100 MHz, "35 dB @ 2.4 GHzDimensions (H - W - D): 125 - 235 - 29 mm (4.9 - 9.25 - 1.14 in)Weight: 564 g (1.24 lb)Mechanical Construction: CNC milled aluminium alloy
Capacity & Connectivity
Receiver Capacity: Up to 3 - DX/DX2 receivers (6 audio channels)Antenna Connectors: SMA (in/out, antenna distribution, active antenna powering)External Power Connectors: Parallel outputs for powering additional devices
Power Specifications
External Power Input: 6 " 18 V DCCurrent Consumption: 30 mA @ 12 VMax Antenna Output Current: 0.2 A
