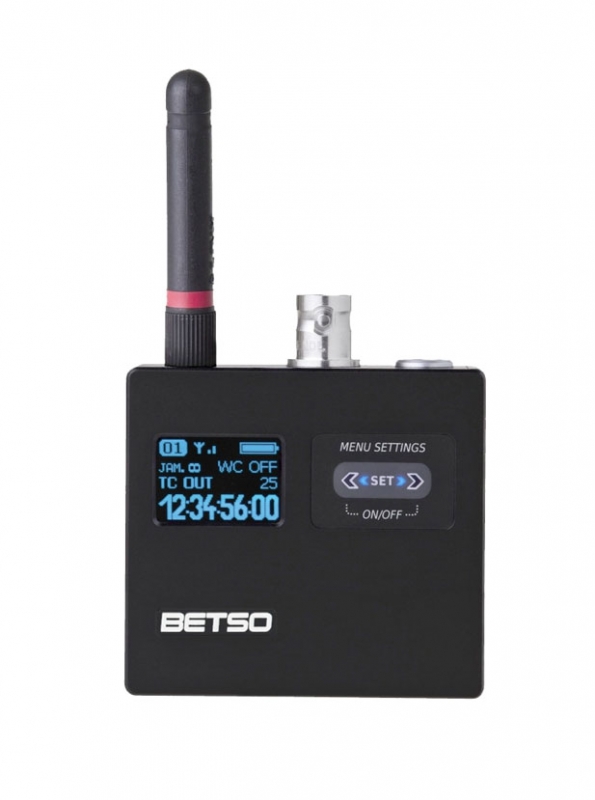

Time code and word clock generator with RF transmission
The SBOX-2RF is an extremely accurate, very compact and affordable time code and word clock generator with RF transmission of time code and status information. SBOX-2RF improves time code sync precision of its ancestor, keeps very easy to use "plug and play" operation control, along with its 1" large
OLED display. New RF transmission brings wireless continuous jamming of time code with 0 ppm error and clear status information of all connected devices to the network with just one click of button. What we most love on new SBOX-2RF is its very long operational time from a single AA battery.
Our whole new concept of wireless transmission of time code and status information is ideal for simple on stage workflow control. Each device connected to the network will be continuously jammed from transmitter and on each device you can observe status information of all other devices in the network.
The operating range is up to 500m within the line of sight. The RF protocol incorporates frequency hopping spread spectrum technology approach which ensures robust functionality even in the environment with high RF noise.
All Time Code and Word Clock Formats
The SBOX-2RF can receive, precisely jam or start to generate new time codes of all existing SMPTE time code formats.
Also, all commonly used word clock formats are supported, including their pull-up and pull-down options.
Extremely Easy To Use
To use, simply connect the cable with the active time code and leave the rest to SBOX-2RF!
The automatic turn on and jamming function provides the most user-friendly and reliable time code syncing as the SBOX-2RF will automatically distinguish correct time code format, calibrate internal TCXO to obtain the same time base as your source, and start generating jammed time code.
You will find the time code synched to the source within less than 0.5 frame drifts even after two days of continuous use.
Thanks to our sophisticated software methods, the ultra-highly accurate TCXO can be further calibrated to achieve much better than 0.2 ppm accuracy. These methods can be applied both during jamming, when TCXO is calibrated to obtain exactly the same time base as the source of time code, or during calibration, from BETSO GPS-2 (will be available soon) device which offer calibrating based on GPS atomic clocks.
This accuracy is almost impossible to beat. And, as you know, accuracy is what TC syncing is all about!
Top Build Quality
Thanks to precise CNC milling manufacturing technology, anodized aluminium alloy materials, original hi-quality connectors and other components, the SBOX-2RF is very durable but still versatile.
Small, Lightweight, and Easy to Mount and Protect
With its weight and dimensions, the SBOX-2RF is one of the smallest and most lightweight TC & WC generators on the market. It can be easily mounted on most camcorders or photo cameras available. Mounting on your rig is even easier when using our protective Nylon Pouch or Hot Shoe Holder.
The SBOX-2RF is powered by one AA battery, which is able to power the device for up to 50 hours of continuous use. This outstanding performance is achieved by a lowering of the display brightness and by switching the display to complete Standby Mode when activity is indicated by blue LED.
Display: 1" blue OLED with adjustable brightness
Dimensions (h x w x d): 61 x 55 x 20 mm (2.4" x 2.16" x 0.78")
Weight (w/o battery): approx. 100g (3.5 oz)
Mechanical construction: CNC milled, anodized aluminium alloy
Powering: 1x AA battery (alkaline or lithium) / 1x accu (NiMH, NiCd), External powering 0.9 - 3 V DC
Current consumption: 50 - 150 mA *
Battery life: Up to 50 hours **
SMPTE TC formats: 23,976 fps - 30 fps including DF and NDF (also 0.5 and 2 multiples: 11.98 fps - 60 fps supported)
Output TC amplitude: Adjustable from -30dBu to +6dBu
Input TC sensitivity: 0.2 - 10 V (p-p)
TCXO crystal: GPS calibrated temperature compensated oscillator (+/- 0.1 ppm)
Accuracy error: Less than 0.3 frames / 24 hours
Accuracy error with RF transmission: 0 frames / 24 hours
Wordclock: 32 - 192 kHz including PAL/SECAM and NTSC pull-up and pull-down options
902 - 928 MHz (USA/Canada)863 - 870 MHz (Europe)920.6 - 923.4 MHz (Japan)
Number of channels: 5
RF output power: 10mW (10dBm)
Operating range: up to 500m ***
Manufacturer Part Number : SBOX-2RF
