UPC/EAN #4010118708992     MPN #708992

$409.99

Save 19.6%, MSRP $509.99
Free shipping in Canada. Conditions

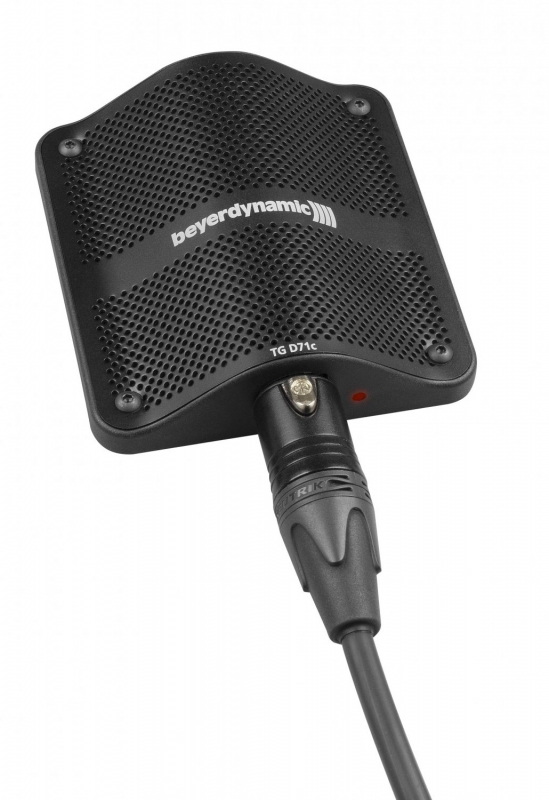

The TG D71 is a condenser boundary microphone (half-cardioid) for drums, cajons and piano



The TG D71 boundary microphone is primarily used for miking bass drums while placing it simply without any additional mounting material into the bass drum. The non-slip rubber bottom makes sure that the microphone cannot shift by itself. In addition to this the TG D71 can also be used for other low frequency instruments such as cajon, grand piano or upright piano whereas the compact design and the half-cardioid polar pattern ensure easy positioning of the microphone. Due to its high impulse fidelity, a low attack time and a maximum sound pressure level of 148 dB, the TG D71 is suitable for miking percussion instruments.

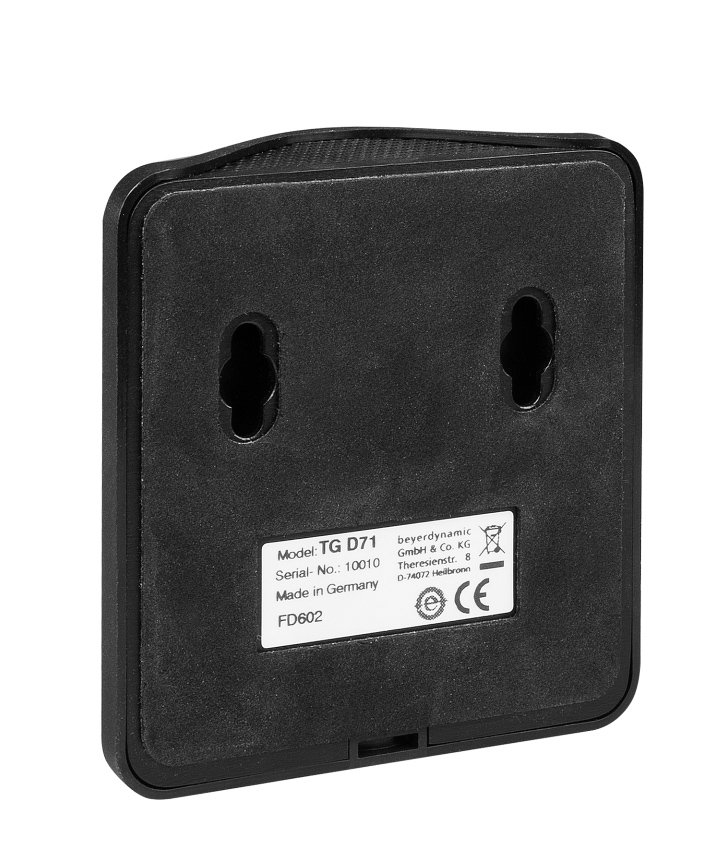

The rugged housing in a slim, compact design protects the microphone against damages in the rough daily use on stage. For a permanent installation on a surface there are two mounting holes at the bottom of the microphone. The microphone is provided with an integrated pre-amp and can be powered on microphone inputs supplying 11 to 52 V phantom power. A red illuminating status LED displays the applied phantom power and in this way the operating status of the microphone.
  • Extremely rugged housing in a compact, slim design Optimal for Bass or Cajon drums
  • Flexible use with low-frequency instruments
  • Half-cardioid polar pattern for maximum gain before feedback
  • High impulse fidelity and low attack time
  • Undistorted transmission of even high volumes
  • Powerful, natural sound
  • Integrated pre-amp
  • Phantom power 11 - 52 V
  • Non-slip rubber bottom
  • Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
    Operating principle . . . . . . . . . . . . . Pressure gradient
    Polar pattern . . . . . . . . . . . . . . . . . . Half-cardioid
    Frequency response . . . . . . . . . . . . . 25 - 20,000 Hz
    Open circuit voltage . . . . . . . . . . . . . 1.5 mV/Pa
    Nominal impedance . . . . . . . . . . . . . < 200
    Load impedance. . . . . . . . . . . . . . . . 1 k
    Max. SPL at 1 kHz . . . . . . . . . . . . . . 148 dB [SPL@1% THD]
    Signal-to-noise ratio . . . . . . . . . . . . . 63 dBA, RMS
    Wiring . . . . . . . . . . . . . . . . . . . . . . . bal. with 3-pin XLR male
    Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR connector
    Power supply . . . . . . . . . . . . . . . . . . Phantom power
    Power consumption . . . . . . . . . . . . . < 3.2 mA
    Dimensions without connector (L x W x H) . . . . . . . . . . . . . 90 x 86 x 27 mm
    Weight. . . . . . . . . . . . . . . . . . . . . . . 424 g
