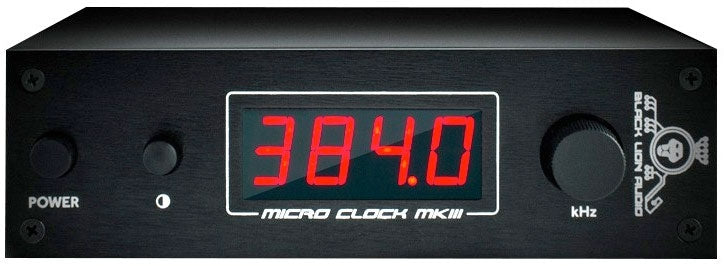

Black Lion Audio Micro Clock mk3

10 years of research involving jitter- reducing, harmonic enhancing design techniques not found in any other master word clocks.

The Micro Clock MkIII is a significant redesign of its predecessor, the Micro Clock MkII. Core technological improvements include lower-jitter crystal oscillators, higher-quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, higher-precision signal division, and much heavier noise filtration throughout the circuit. All of this results in a more robust, lower-jitter clock signal than the Micro Clock MkII, with even more desirable harmonics in the clock's spectral band that impart an undeniable musical quality to the conversion process. The feature set has expanded to include an LED frequency display, six BNC outputs capable of up to 384kHz, AES and RCA S/PDIF outputs capable of up to 192kHz, an optical S/PDIF output capable of up to 96kHz, and removable 1U rack ears.
Features
  • Ultra-low jitter, harmonically-enhanced word clock signal generation
  • Dimmable frequency display
  • 8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
  • 6 BNC outputs with dedicated output drivers for maximum isolation
  • RCA S/PDIF output
  • Optical S/PDIF output
  • AES output

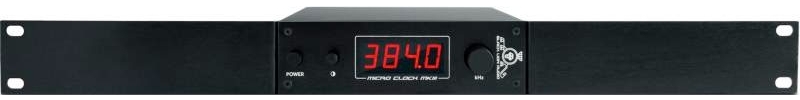

  • 1U removable rack ears
  • Specifications

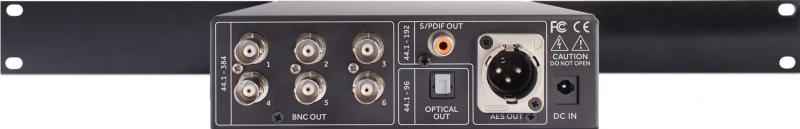

    Outputs: 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1m)
  • BNC: 75, 5V unterminated
  • RCA S/PDIF: 75 , unbalanced
  • AES XLR: 110 , balanced
  • Clock Frequencies:
  • BNC (kHz) - 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
  • RCA S/PDIF & AES (kHz) - 44.1, 48, 88.2, 96, 176.4, 192
  • Optical S/PDIF (kHz) - 44.1, 48, 88.2, 96
  • Jitter: 1.92pS RMS (BNC outputs)
  • Power: 9VDC (6W power consumption)
  • Power connector: 2.1mm barrel connector with 5.5mm outer diameter (center pin positive)
  • Weight: 2.2lbs
  • Dimensions: 6.5"L x 6"W x 1.75"H (without 1U rack ears installed)
  • Shipping weight: 4lbs
  • Shipping dimensions: 13"L x 11"W x 5"H
  • Reviews
    Price *

    $1330.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Micro Clock mk3, please visit the website of Black Lion Audio
