High definition live production switcher with 10 standards converted 3G-SDI inputs, 6 independent 3G-SDI aux outputs, USB webcam output, DVE, chroma keyers, and media players

Introducing ATEM Constellation, the world's most powerful HD and 4K live production switchers! These incredibly powerful switchers are available in 4 great models, including a 1 M/E model with 10 inputs, a 2 M/E model with 20 inputs and two massive 4 M/E models with 40 inputs! Plus each SDI input features a full standards converter! ATEM Constellation includes advanced features such as DVEs, ATEM advanced chroma keyers, media players, multiviews, and SuperSource processors! Plus the built in Fairlight audio mixer includes a compressor, limiter, 6 band parametric EQ and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E or 4 M/E ATEM Advanced Panel!

Seriously Advanced Broadcast Power

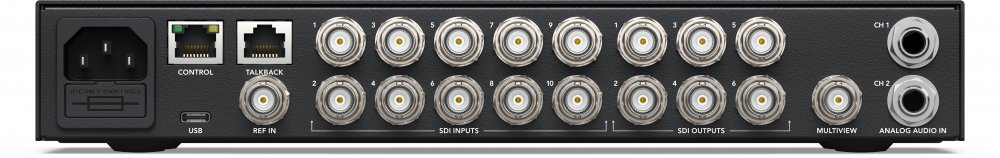

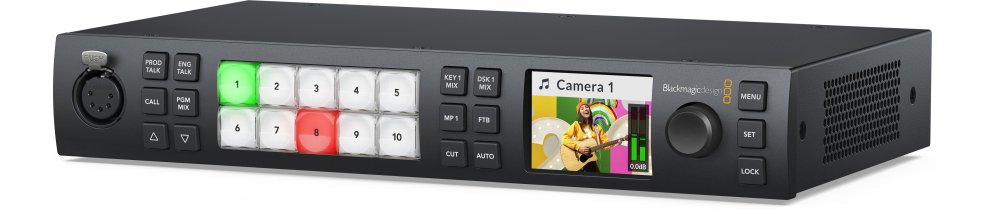

ATEM Constellation switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio and Ethernet for control. The top 4 M/E models even include RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

Designed for Massive Live Events!
With 4 powerful models, ATEM Constellation switchers are ideal for concerts and music festivals because you can place cameras on all areas of the stage for amazing coverage! Even live sports benefit from the huge number of inputs and DVEs let you build multi-layer compositions to cover the action. The fastest way to produce programming is live! With powerful internal graphics and lots of ATEM advanced chroma keyers, you get everything you need for complex program production. ATEM Constellation is also perfect for house of worship programming as it's big enough to allow professional results, but it's very simple to learn so it's easy to train a volunteer crew!

True Broadcast Style Mix Effects Switching
ATEM Constellation uses a professional "program/preview" style operation, which is the exact same way large broadcasters use live production switchers. This means you are using the same type of switcher used by the television industry. Both the free ATEM Software Control and the optional hardware ATEM Advanced Panels will allow program/preview style switching. This means you can select a source on the preview bus to ensure it's correct before pushing the CUT or AUTO button to switch it on air. This 2 step program/preview process means far fewer mistakes! Program/preview operation means ATEM Constellation is the best solution for training students for a career in broadcast television!

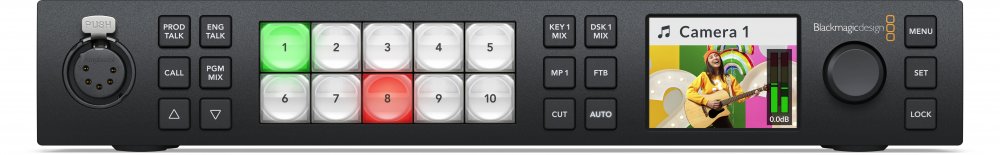

Full Front Panel Control
With a control panel built into the front panel, you can simply walk up and operate the ATEM Constellation at any time. ATEM Constellation has similar features to ATEM Mini, so it's a fantastic upgrade when you need a bigger switcher! Plus the front panel control buttons are the same premium type used on full sized panels so they are extremely reliable. You can even control keyers, media and fade to black from the front panel! There is an industry standard 5 pin talkback headset connector on the front panel, with controls for talkback control. Plus the front panel LCD and menu buttons also allow almost every single operational feature of the switcher to be accessed!

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G'SDI inputs and 6 independent 3G'SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!
  • 10 standards converted 3G'SDI inputs
  • 6 independent 3G'SDI aux outputs
  • USB webcam output
  • DVE
  • chroma keyers
  • Media players
  • Multiview
  • Total Video Inputs

    Total Video Outputs

    SDI Rates
    1.5G, 3G

    Total Audio Inputs
  • 2 x balanced 1/4 inch Jack,
  • 1 x 5 pin XLR Talkback.

  • Total Audio Outputs
    1 x 5 pin XLR Talkback.

    SDI Audio Inputs
    2 Ch embedded audio on all SDI inputs.

    SDI Audio Outputs
    2 Ch embedded audio on all SDI outputs.

    Timecode Connections

    Reference Input
    Tri-Sync or Black Burst.

    Video Input Re-Sync
    On all 10 inputs.

    Frame Rate and Format Converters
    On all 10 inputs.

    SDI Aux Outputs
    Any of the 6 SDI outputs.

    SDI Preview Outputs
    Any of the 6 SDI outputs.

    SDI Program Outputs
    Any of the 6 SDI outputs.

    Down Converted SDI Program Output

    Webcam Output
    1 x USB-C supporting 720p or 1080p at PGM frame rate.

    Total Multi Views
    1 x 3G-SDI

    Control Panel Connection
    Ethernet. Direct connection between panel and chassis, or via network.

    Internal Timecode Generator

    RJ45 for 3rd party talkback systems.

    Tally Output
    Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

    Supports 10/100/1000 BASE-T.

    Computer Interface
    1 x USB-C supports USB 2.0
