UPC/EAN #9338716007978     MPN #SWATEMMXEPCEXTISO

$2155.00

Financing available
Free shipping in Canada. Conditions

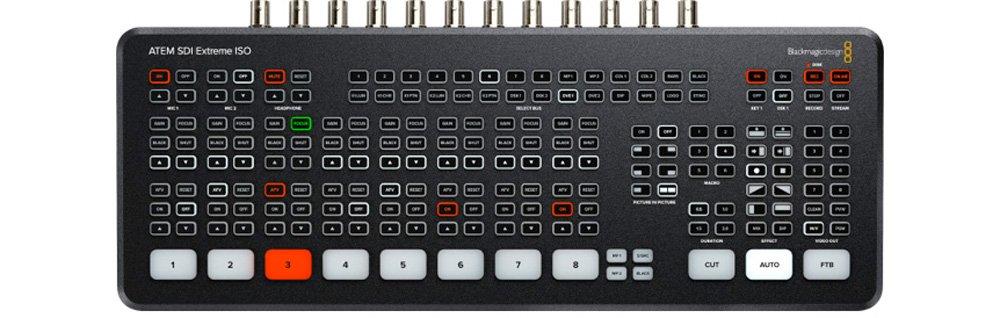

This model includes all the features of ATEM SDI Pro ISO model but has 8 SDI inputs and 4 SDI outputs. It can record 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved.
Product Specifics
Upstream Keyers: 4
Downstream Keyers: 2
Advanced Chroma Keyers: Up to 4
Linear/Luma Keyers: Up to 4
Transition Keyer: DVE only.
Total Number of Layers: 9
Pattern Generators: 5
Color Generators: 2
DVE With Borders and Drop Shadow: 2
Interface: Minimum monitor resolution of 1366 x 768.

Audio
Total Video Inputs: 8
Total Outputs: 6
Total Aux Outputs: 4
Total Audio Inputs: 2 x 3.5mm stereo mini jack.
Total Audio Outputs: 1 x 3.5mm stereo mini jack.
Timecode Connection: None

SDI Video Inputs:
8 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.

Video Input Re-Sync:
On all 8 SDI inputs.

Frame Rate and Format Converters: On all 8 SDI inputs.
SDI Program Outputs: 4

Ethernet:
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface: 2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
