Blackmagic Design ATEM Television Studio Pro 4K
Ultra HD live production switcher with built in broadcast control panel, 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, and 4 port 10G Ethernet switch
The World's Most Portable All-In-One Television Studio!
The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal network shared storage. There's even an ISO model that records all 8 inputs for editing!
Bring Multi Camera Live Production to any Location!
Compact Broadcast Vans
With the all in one design, you can build a new generation of ultra compact broadcast vans! You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk!
Music Venues and Clubs
Some of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However ATEM Television Studio can be carried into any venue! It?s also easy to pack up, even if the venue is still crowded.
ATEM Television Studio is perfect for creating education content! As the ISO model records the video inputs, you can finesse edits, replace shots and even add color correction! Plus you can even connect to Zoom to incorporate live chat with students!
ATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed into sports clubs or taken on the road with the team! With up to 8 cameras, you'll catch all the exciting angles!

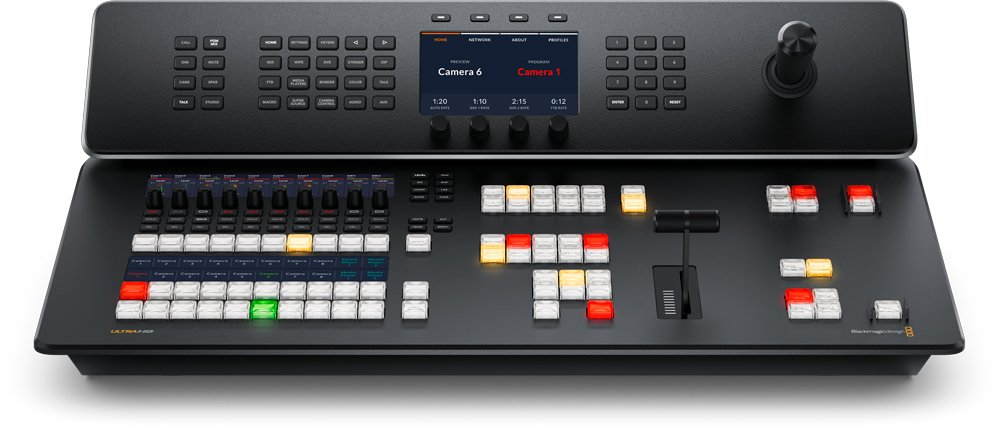

Self Contained Broadcast Quality Switcher

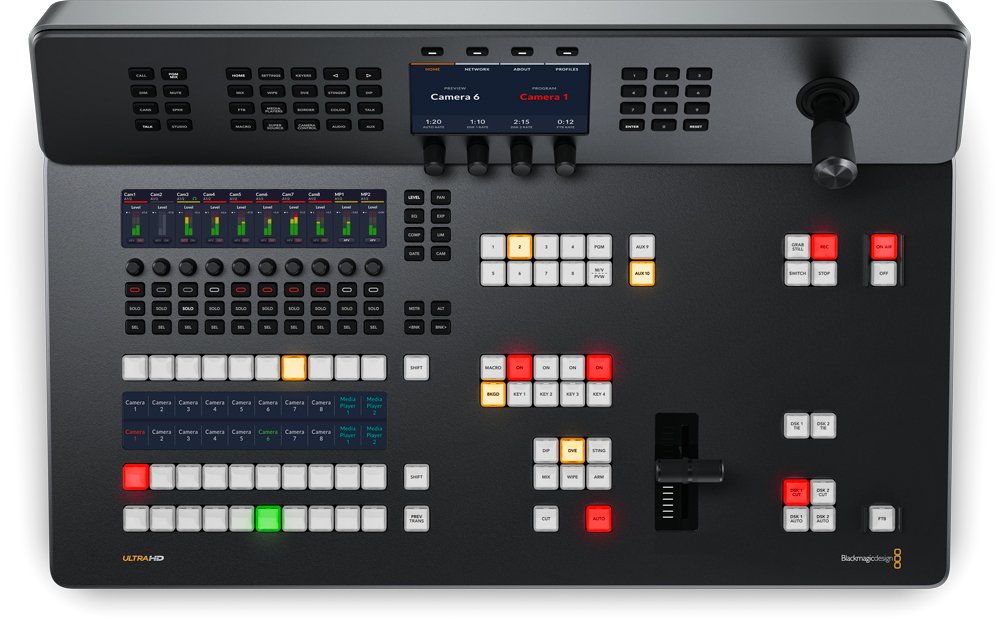

The ATEM Television Studio combines a switcher and control panel into the same unit, so it?s extremely portable. You get everything you need! The front panel includes buttons for selecting sources, triggering transitions and setting up video effects. Plus the buttons are the same high-end type used on expensive broadcast switchers! You also get a built in t-bar for manual transition control! The front panel even has an innovative audio mixer control area with live metering on a dedicated LCD. There are also buttons for recording and streaming control, plus live aux switching that lets you change aux outputs between all 8 cameras, program, preview or the multiview.
ATEM Television Studio 4K8 is a powerful Ultra HD live production switcher with a built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 12G-SDI inputs, 10 12G-SDI aux outputs for external recorders, 4 port 10G Ethernet switch, built in streaming, master recorder, multiview, USB webcam support, 2 DVEs, SuperSource, 4 ATEM Advanced Chroma Keyers, 2 media players, talkback and more!
8 12G-SDI inputs10 12G-SDI aux outputs for external recorders4 port 10G Ethernet switchBuilt in streamingMaster recorderMultiviewUSB webcam support2 DVEsSuperSource4 ATEM Advanced Chroma Keyers2 media playersTalkback

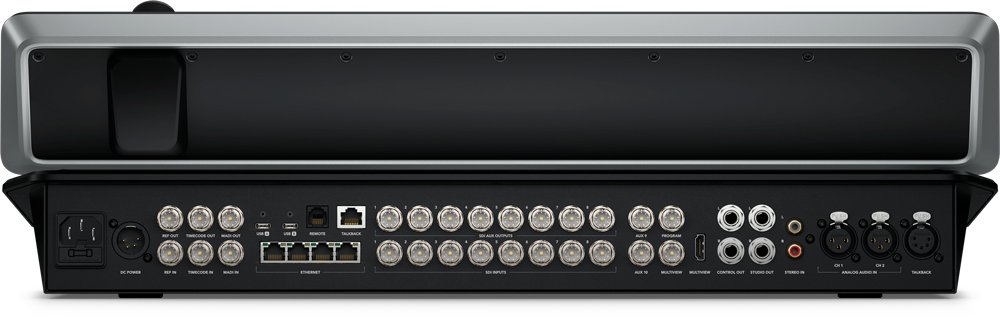

SDI Video Inputs: 8
SDI Video Outputs: 12
SDI Rates: 1.5G, 3G, 6G, 12G
HDMI Video Outputs: 1
Total Audio Inputs:
2 x XLR balanced analog audio,
1 x BNC 32 Ch MADI digital audio,
2 x RCA stereo analog audio,
1 x 5 pin XLR Talkback.
Total Audio Outputs:
4 x 1/4 inch Jack analog audio,
1 x BNC 64 Ch MADI digital audio, up to 50 active,
1 x 5 pin XLR Talkback.
SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs.
SDI Audio Outputs: 16 assignable channels.
Timecode Connections: 1 x BNC In, 1 x BNC Out.
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
Video Input Re-Sync: On all 8 inputs.
Frame Rate and Format Converters: On all 8 inputs.
SDI Aux Outputs: 10
SDI Program Outputs: 1
Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views:
1 x 12G-SDI
1 x HDMI 2.0
Remote: RJ12 supports RS-422
Control Panel Connection:
Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator: Yes
Talkback: RJ45 for 3rd party talkback systems.
Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
4 x RJ45 with internet network switch. Supports 10/100/1000/10G BASE-T.
2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.
Number of Mix Effects Rows: 1
Direct Cross Points: 10
Shifted Cross Points: 20
Crosspoint Button Type: Tri-Color LED
Crosspoint Label: 6 rows 24 character LCD
Preview Transition: 1
Source Select Bus: 1
Dedicated Macro Buttons: 10 plus shift 10
Transition Type Buttons: 5
Transition Rate: Set via system LCD menu display
Key Buttons: 8
AUX Buttons: 12
Fader Bar: 1
Record Buttons: 2
Stream Buttons: 2
DSK Transition Selectors: 6
Fade to Black Buttons: 1
System LCD Displays: 1
Numeric Keypad: 1
3 Axis Joystick: 1
Upstream Keyers: 4
Downstream Keyers: 2
Advanced Chroma Keyers: 4
Linear/Luma Keyers: 7
Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE.
Total Number of Layers: 8
Pattern Generators: 7
Color Generators: 2
Control Panel: Integrated panel with full control of switching and settings.
Routable Windows: 16
Windows Source Labels: Yes
Tally: Red for program and green for preview indication.
Talkback Support: Yes
Mix Minus Support: Yes
Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB'C.
Direct Recording Video and Audio
Direct recording to optional internal M.2 flash memory or to external media via USB-C expansion ports.
Program recorded as a H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.
Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket.
1 x 4 pin XLR 12V DC In for external power supply or battery use.
ATEM Television Studio 4K8
Welcome wallet with QR code for software download
